NUX Solid Studio MKII

Highlights

– Stereo CYBER IR™ Engine with dual 1024 samples resolution.
– Independent Pre & Power amp simulation with TSAC-4K white-box amp modeling algorithm.
– World-class amp modeling algorithm with full functions. (Like 4 inputs for patch cable jumping).

*Currently 8 classic AMP models.

– One-piece die-cast aluminum chassis.
– AMP, IR, EQ, AMB effect blocks with free routing order.

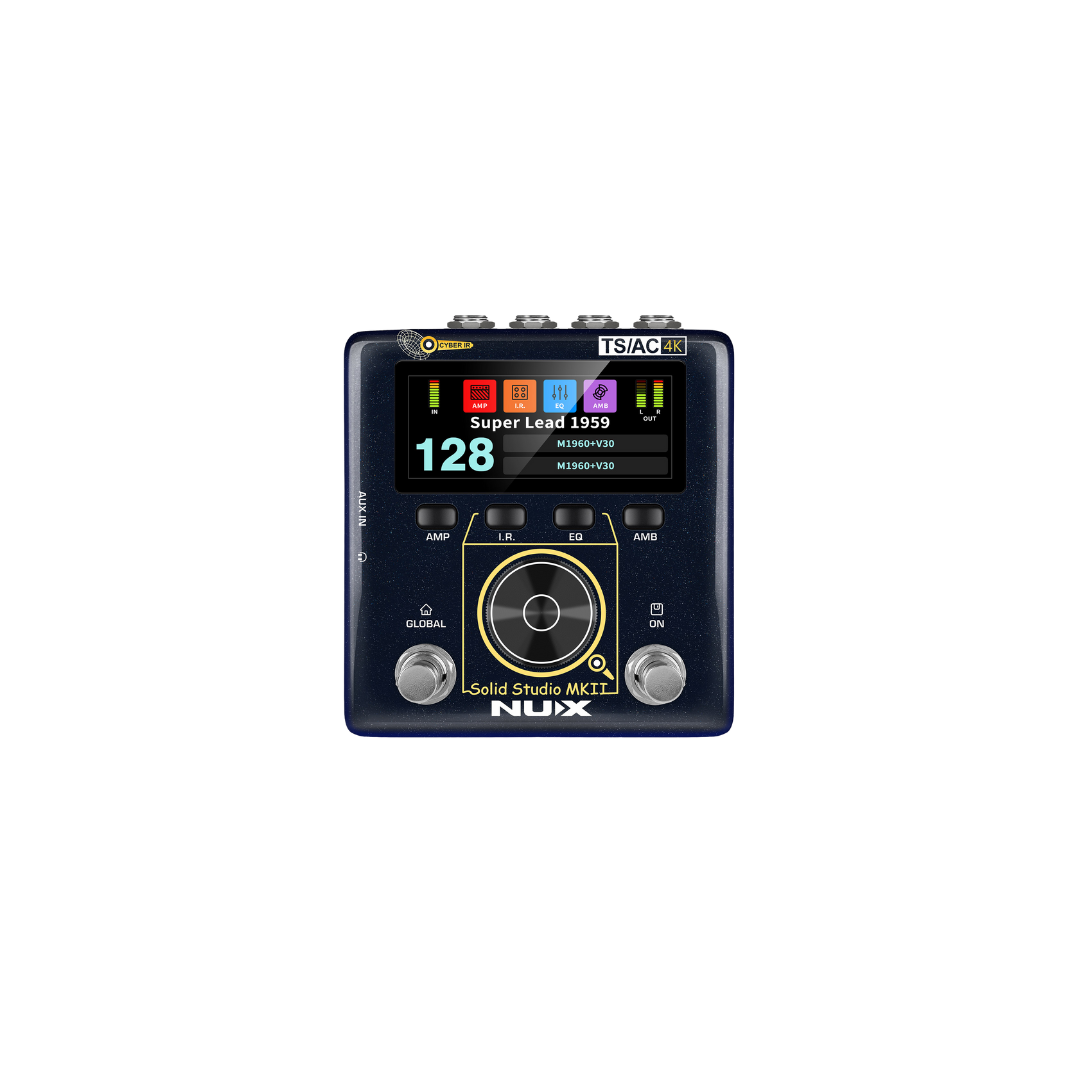

– 2.86″ color LCD display (960*376) with intuitive operations.
– 128 preset slots, independent L/R 60 IR slots.
– Built-in NOISE GATE, EQ, PHONES LEVEL, AUX IN LEVEL, OUT LEVEL in global setting.
– NORMAL, INJECT input modes. (INJECT to parallel the power amp signal.)
– USB audio interface, firmware update, SOLID STUDIO editor™ edit software.

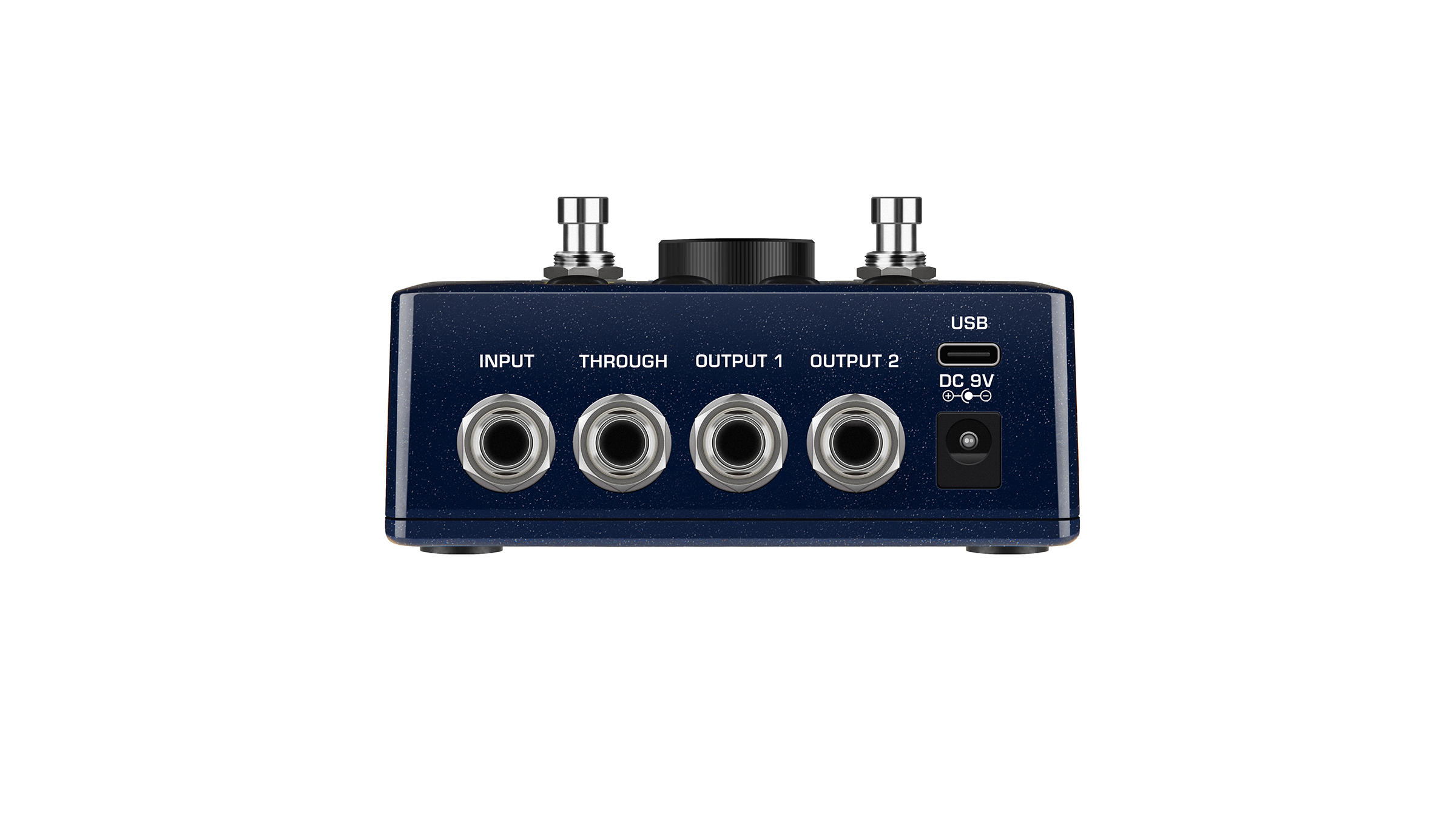

– USB-C MIDI, THROUGH jack (parallel the Power Amp signal), stereo balanced 1/4” outs with GND lift, Phones Out for silent practice.
– Great Dynamic Range: 110dB.
– Ultra-low latency: 0.85ms (bypass), 1.9ms (efx engaged).

Specs

– INPUT Impedance: 1MΩ
– AUX IN Impedance: 10kΩ
– OUTPUT 1, OUTPUT 2 Impedance: 100Ω
– Phone Impedance: 10Ω
– Dynamic Range: 110dB
– Sampling Rate: 48kHz/32bit
– System Latency: 0.85ms (Bypass); 1.9ms (Effect On)
– Power: 9V DC (Negative Tip)
– Current Draw: < 600mA
– Dimensions: 105(L)x115(W)x58(H)mm
– Weight: 450g
