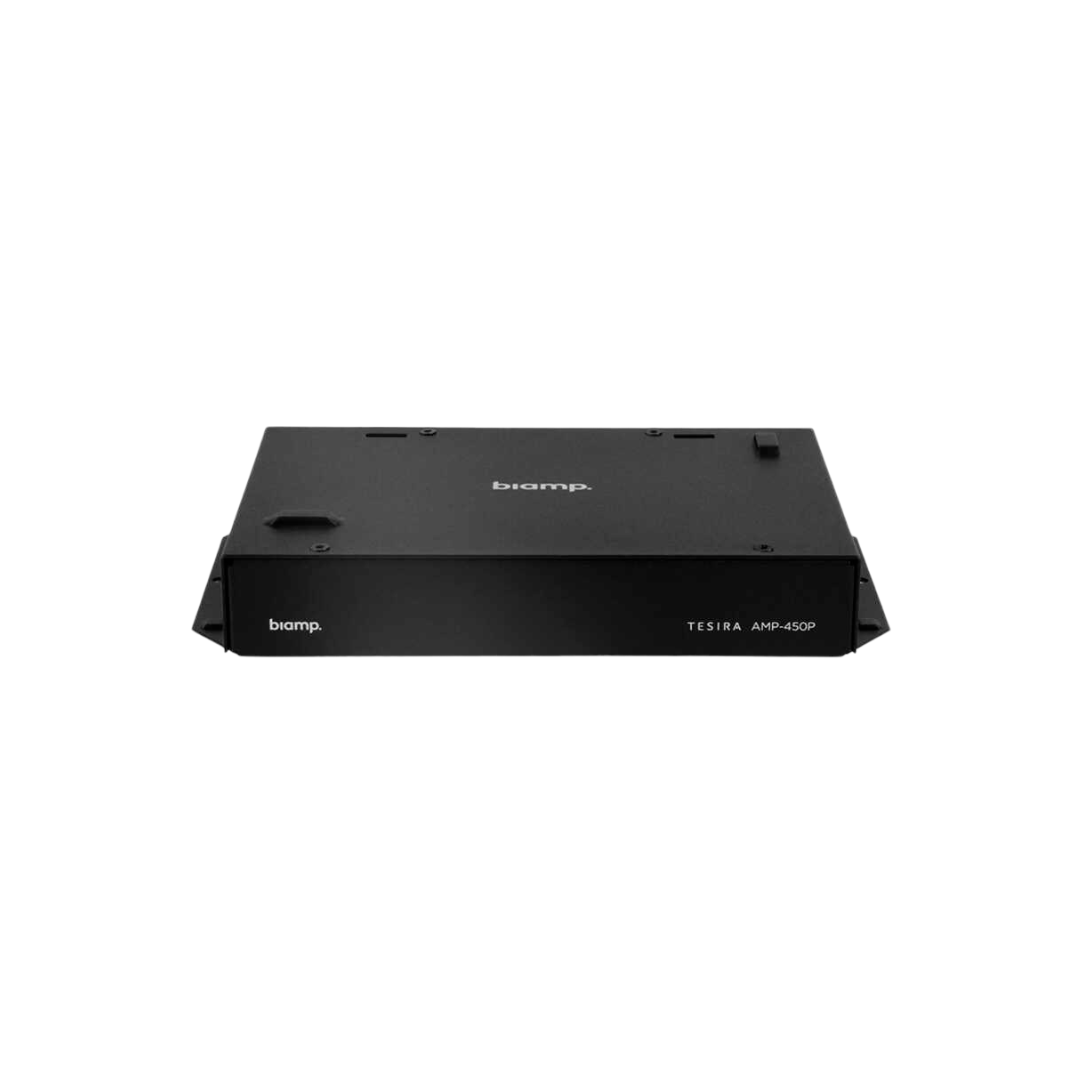

Tesira AMP-450P
AVB/TSN enabled, PoE+, 4-channel amplifier.
Key Features:
- 4-channel amplifier; 3 watts continuous power per channel
- Burst mode to handle peak signals; supports up to 50 watts (4Ω) or 30 watts (8Ω) per channel
- PoE+ powered
- Class-D amplifier topology
- Fanless operation
- Software-selectable power vs. channel count
- Includes internal limiter function
- Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
- LED indicators for power/status and amp status
- Configurable via Tesira software
- CE marked, UL listed, and RoHS compliant
- Compliant with the US Trade Agreement Act (TAA)
Description
The Tesira AMP-450P is an AVB/TSN enabled, PoE+, 4-channel amplifier. The output channels are software configurable, including selectable power versus channel count. The AMP-450P includes an internal limiter, and is capable of providing 3 watts of continuous power to all four channels. The Tesira AMP-450P is also capable of operating in a burst mode to handle peak signals, providing up to 50 watts (4Ω) or 30 watts (8Ω) per channel.
The Tesira AMP-450P complies with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.
Specs
|
| Height |
1.18-inches (30 mm) |
| Width |
7.67 inches (195 mm) |
| Depth |
4.72-inches (120 mm) |
| Weight |
1.54 lbs (0.7 kg) |
|
| Operating Environment |
Ambient Operating Temperature Range:
32-104° F (0–40° C)
Humidity: 0–98%, non-condensing
Altitude: 0-6,600 feet (0–2000 Meters) MSL |
| Humidity |
0-95% relative humidity (non-condensing) |
| Altitude |
0-10,000 ft (0-3000m) MSL |
|
| Power |
PoE+ (IEEE 802.3at Class 4 , 30W) |
| Power Indicator(s) |
Power Indicator (Green/Yellow/Red LED);
Amp Status Indicator (Green/Yellow/Red LED) |
| Operating |
Operating Power: 4Ω |
| Power Output |
Burst Power Output:
4 Ω (per channel) (per ANSI/CTA-2006-B @ 1kHz) = 50
8 Ω (per channel) (per ANSI/CTA-2006-B @ 1kHz) = 30
Continuous Power Output:
Single Channel Driven, (4Ω, 8Ω): 15W
Dual Channel Driven (4Ω, 8Ω): 7W
Four Channel Driven, (4Ω, 8Ω): 3W |
| Cooling |
Convection |
|

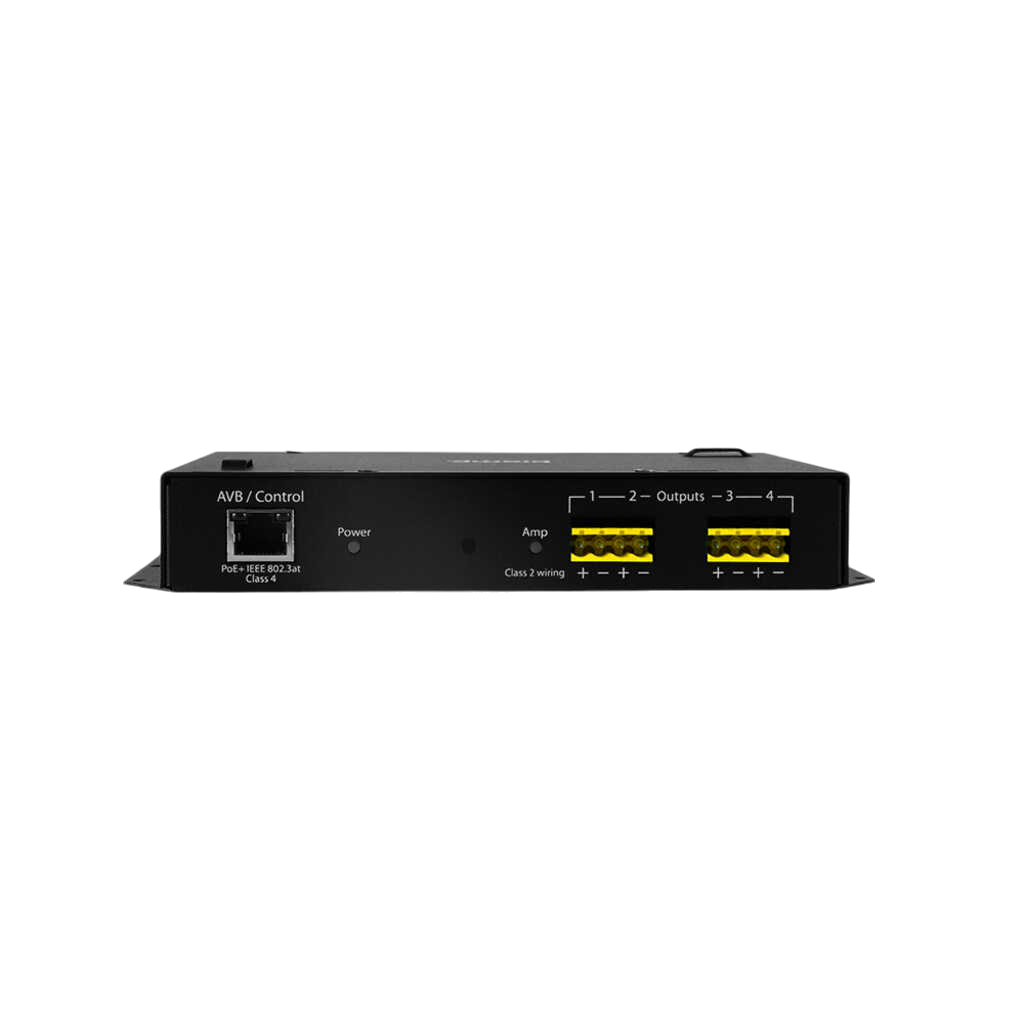

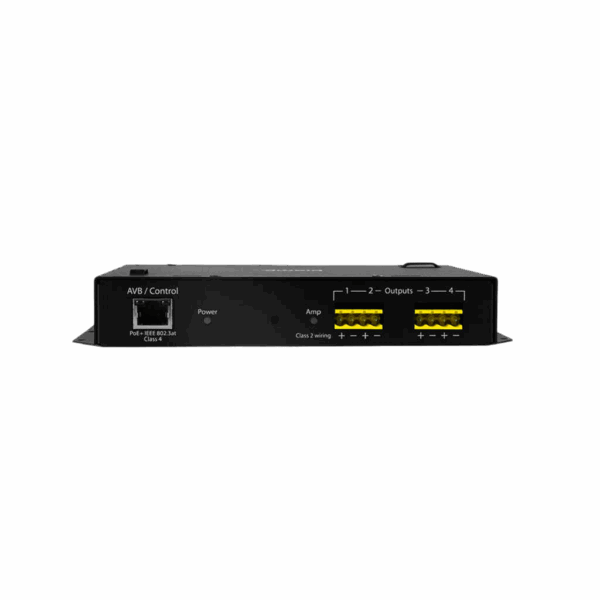

| Network Connection(s) |
Gigabit Ethernet, RJ-45 (Cat 5e and above) |
| Network Connection(s) |
Gigabit Ethernet, RJ-45 (Cat 5e and above) |
|
| Channels |
4 Channels |
| Amplifier |
Class D |
| Distortion |
Intermodulation Distortion (SMPTE at continuous power): <0.3% |
|
| Audio |
4-pin 5.08 mm Phoenix connectors |
| THD+N |
(20Hz-20kHz, at continuous power): < 0.3% |
| Frequency Response |
(20Hz-20kHz): ± 1dB |
| Dynamic Range |
(20Hz-20kHz BW): > 90dB |
|
| TAA Compliant |
TAA Compliant |
|
| Certifications |
FCC Part 15B (USA)
UL and C-UL listed (USA and Canada)
CE Marked (Europe)
KCC (Korea)
RoHS Directive (Europe)
Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces |
|
| Specification Notes |
BPAK Backpack adapter kit
Seismic Cable Adapter for PoE amp plenum boxes
TB-1 Tile bridge for PoE amp plenum boxes
Plenum Box 12×12 Chicago compliant plenum box
C5E-10-P, C5E-25-P, 10ft and 25ft pre-terminated plenum rated Cat 5e cables |
