Parlé TCM-1 Black
AVB Beamtracking ceiling microphone, black.
Key Features
- Beamtracking technology actively tracks and intelligently mixes conversations
- Three 120-degree zones for 360-degree coverage

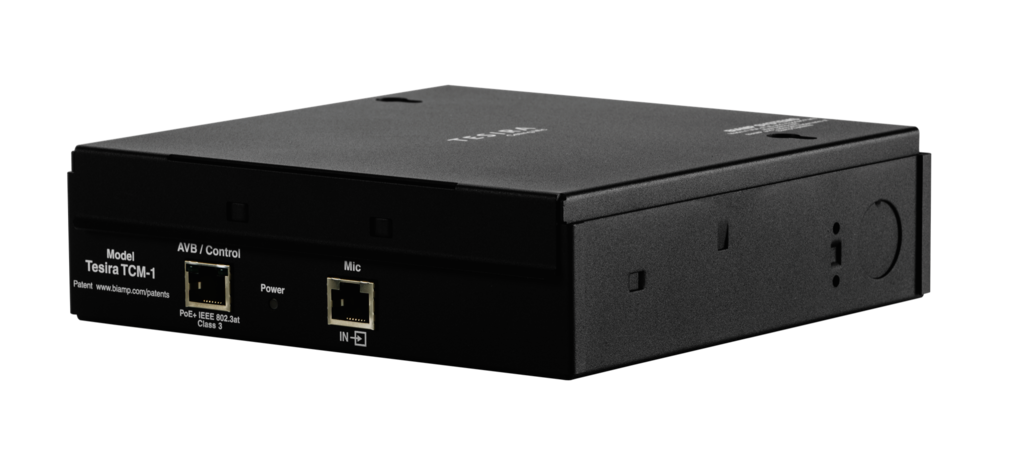

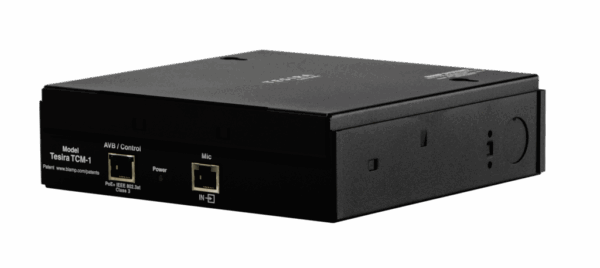

- Plenum box includes DSP for Beamtracking
- LED mute status indicator
- User-adjustable microphone height

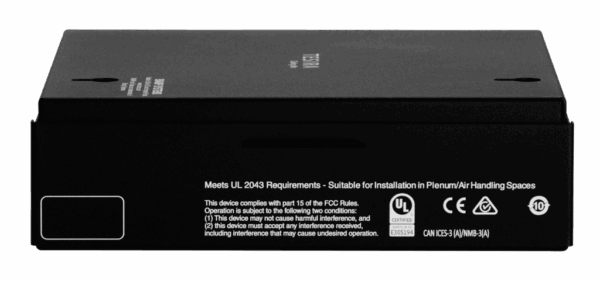

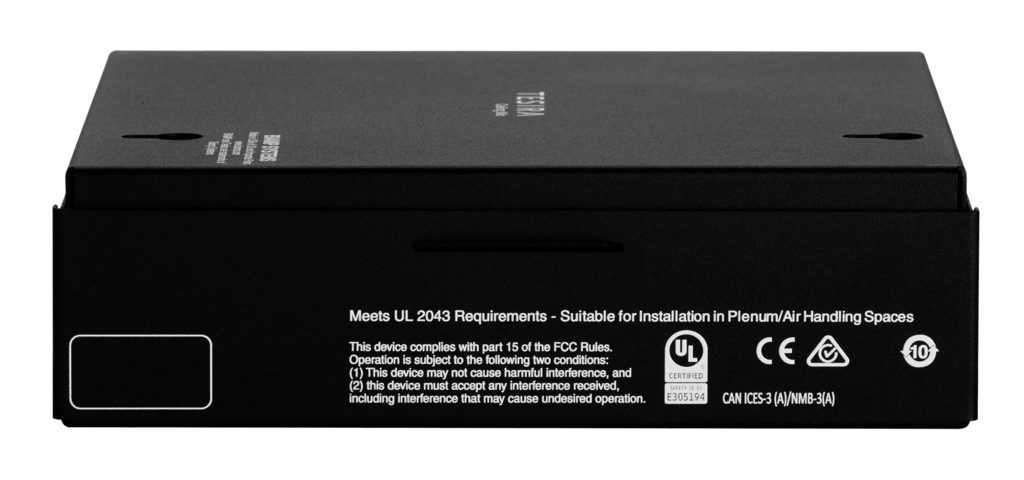

- Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces

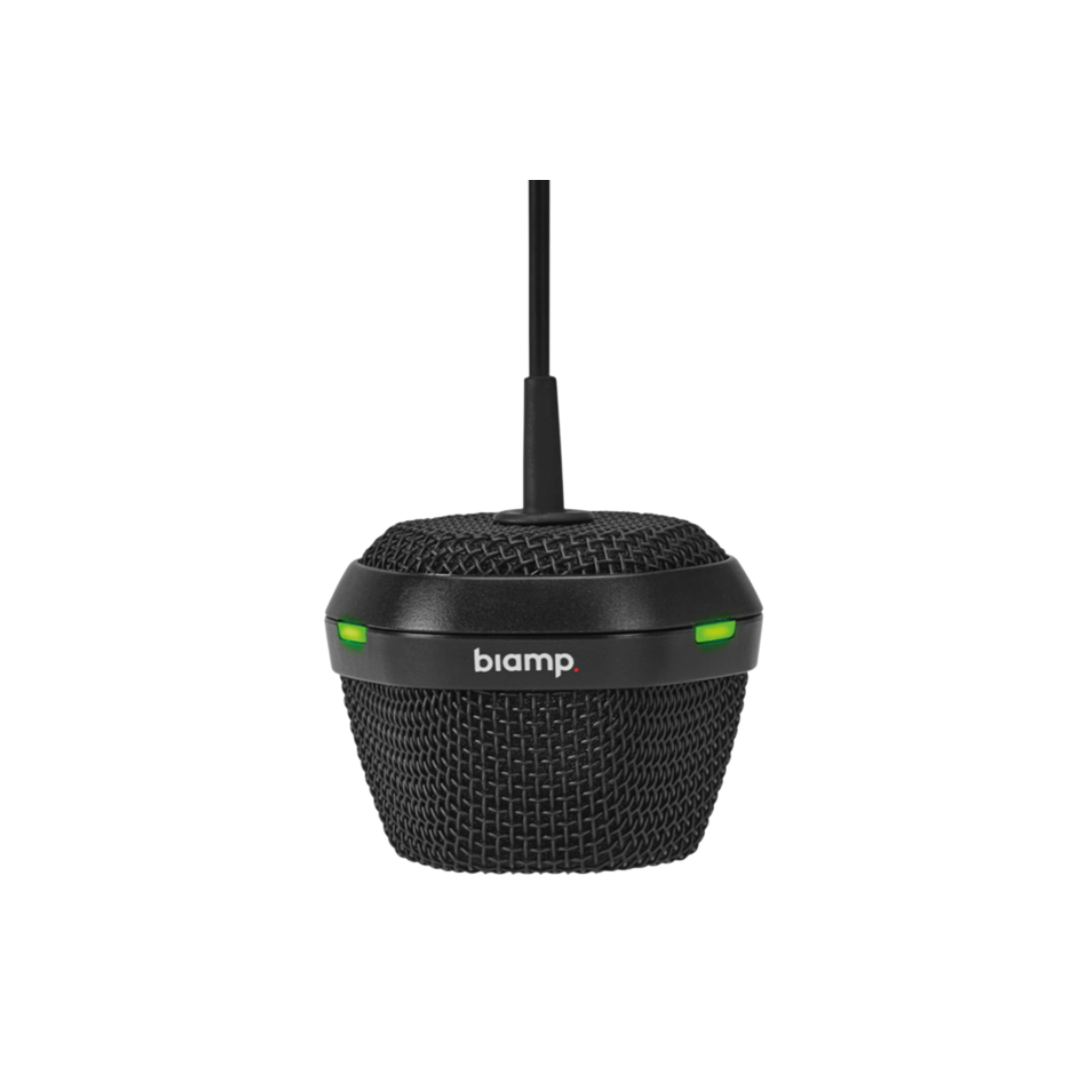

- Pendant microphone available in either white or black
- Optional tile bridge mounting accessory available
- Additional RJ-45 for daisy-chain connection to a TCM-1EX microphone (maximum of three microphones per daisy chain)
- CE marked, UL listed, and RoHS compliant
- 5-year warranty
- Compliant with the US Trade Agreement Act (TAA)
Description
The Parlé TCM-1 is an AVB pendant microphone and plenum box. Each microphone includes Beamtracking technology with three 120-degree zones, providing full 360-degree coverage of the meeting space. The plenum box is equipped with an additional RJ-45 connector for daisy-chain connections; a maximum of three microphones are permitted per daisy chain (one TCM-1 or TCM-1A required, plus up to two TCM-1EX).
Conference Room Designer Classroom Designer
The Parlé TCM-1 Black & the Parlé TCM-1 White comply with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.
Specs
|
| Height |
Microphone: 2 inches (51 mm)
Plenum Box: 2 inches (51 mm) |
| Width |
Microphone: 2.5 inches (63 mm)
Plenum Box: 7 inches (178 mm) |
| Depth |
Microphone: 2.5 inches (63 mm)
Plenum Box: 7.125 inches (181 mm) |
| Weight |
Microphone: 0.4 lbs (0.2 kg)
Plenum Box: 2.4 lbs (1.1 kg) |
| Included Accessories |
Plenum Box (included):

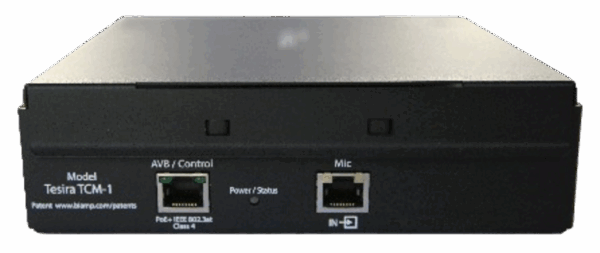

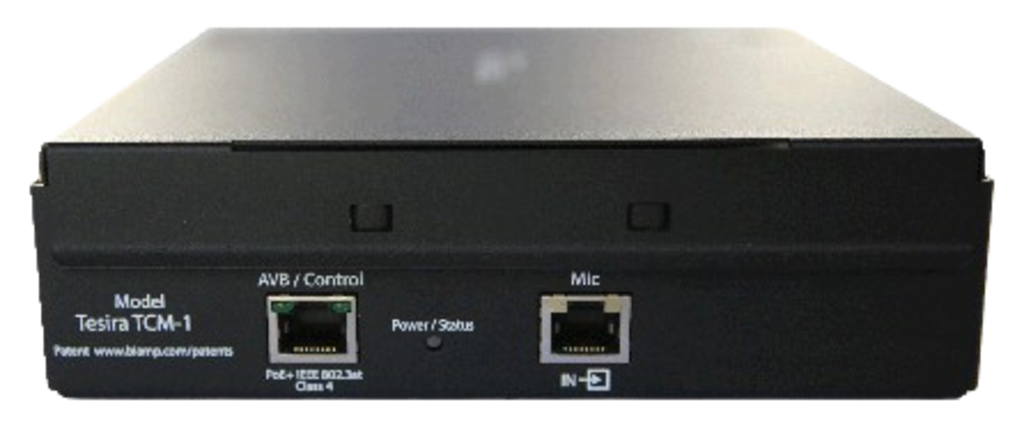

Connectors: Two RJ-45: one between TCM-1 plenum box and switch, the other between TCM-1 plenum box and additional TCM-1EX plenum box; 2-pin 3.5 mm Phoenix connector to TCM-1 microphone
Digital Interface: Custom/Proprietary
Max Distance Between Devices: 330 feet (100 meters) from switch to TCM-1 plenum box; 33 feet (10 meters) for daisy-chained connections between TCM plenum boxes |
|
| Power |
Plenum Box Power: PoE (IEEE 802.3at Class 3, 15.4W) |
| Power Indicator(s) |
Plenum Box: (Green/Yellow/Red LED)
Microphone: Mute Indicator (Green/Red LED) |
|
| Microphone |
Pendant:
Microphone Technology: 8-Element Digital Array
Polar Pattern: Beamformed
Sensitivity (94dB SPL, 1kHz): > 70dB
Dynamic Range (THD+N < 10%): 92dB, A-Weighted
Digital Interface: Custom/Proprietary
Connector: Custom 2-pin (cable length 10 feet [3 meters]) |
| Frequency Response |
(150 Hz – 16 kHz): ± 3dB |
| SPL |
(at 0.5% THD): 106dB |
|
| TAA Compliant |
TAA Compliant |
|
| Certifications |
FCC Part 15B (USA)
CE marked (Europe)
UL and C-UL listed (USA and Canada)
RoHS Directive (Europe)
Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces |
