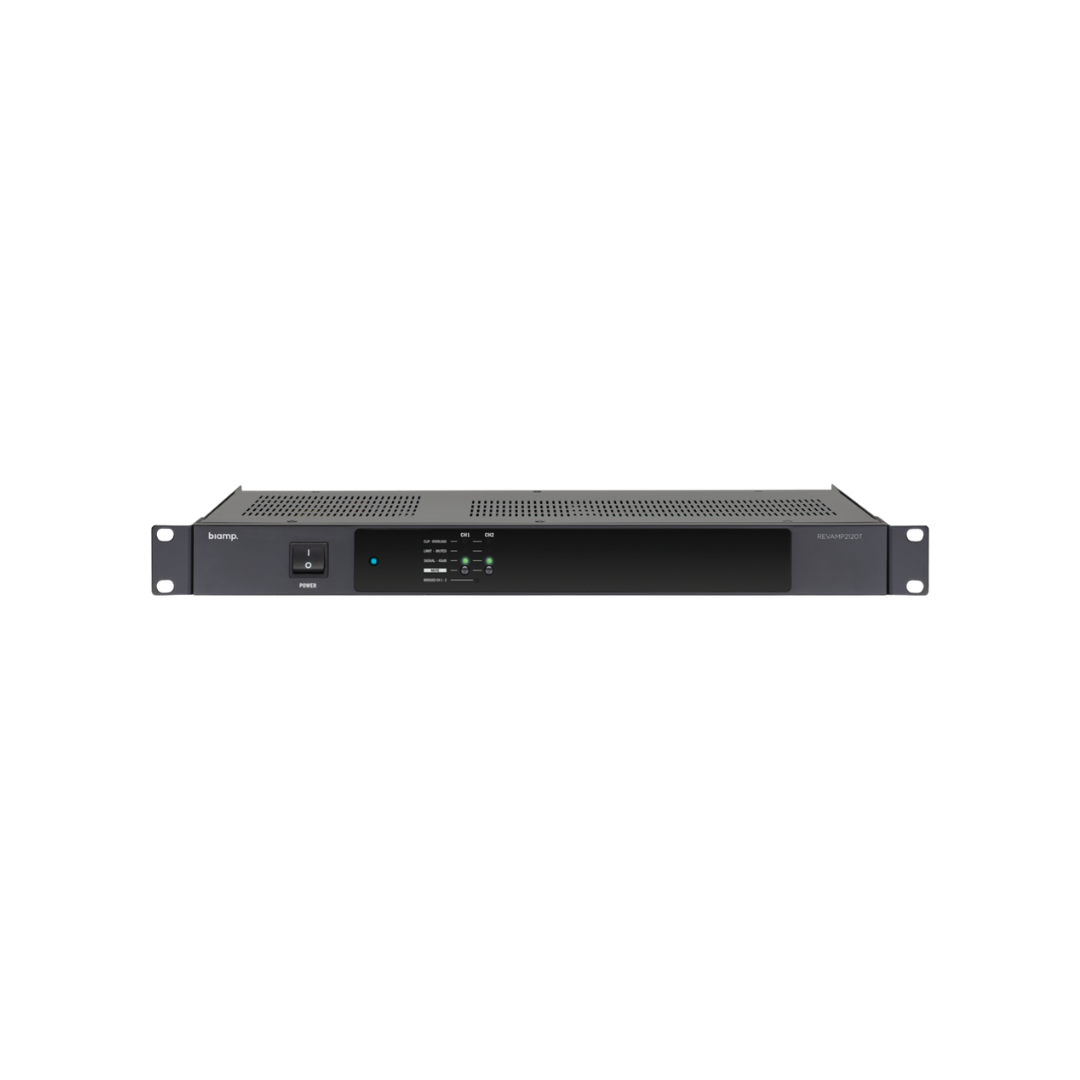

Commercial Audio REVAMP2120T
2-channel Class D digital power amplifier.
Key Features
- 2 x 120 watts output power @ 100 volts or @ 4 ohms
- Can be bridged into a powerful 240 watts @ 100 volts or 8-ohm single amplifier
- Convection cooled
- 1 U, 19-inch rackmount
Description
The REVAMP2120T is a 2-channel digital power amplifier that provides 2 x 120 watts output power @ 100 volts or @ 4 ohms, and can be bridged into a powerful 240 watts @ 100 volts or 8-ohm single amplifier.
The REVAMP2120T is a convection cooled class-D amplifier without built-in fans which ensures that the amplifier is noiseless and dust-free. The ergonomic and efficient 1U design has a galvanic separated toroidal output transformer built in to avert external influences and disturbances.

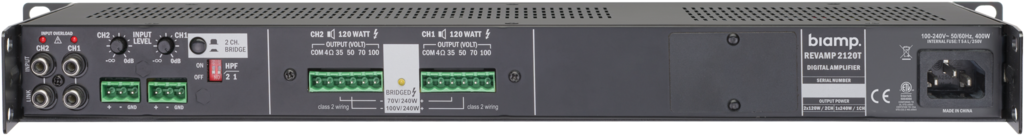

During the configuration of the input gain the rear clip LED indicator can be used for a fast and easy installation. The multiple inputs and link connectors make the REVAMP2120T a versatile and installer-friendly amplifier superior to any other in the fixed install market.
Specs
|  |
| Height | 1.73 inches (44 mm) Rack units: 1U 1.73 inches (44 mm)
 |
| Width | Rack Mounting: 19 inches (483 mm) |
| Depth | 9.40 inches (239 mm (including front) 9.05 inches (230 mm (build in)
 |
| Weight | 13.44 lbs (6.1 kg) |
|  |
| Power | Power supply: 115 – 230 VAC |
| Power Consumption | 300 watts |
| Power Output | Dynamic output power 4 ohms: 2 x 120 watts Dynamic output power 8 ohms: 2 x 60 watts
 Dynamic output power bridged 8 ohms: 240watts
 Output power RMS 100 volts: 2 x 120 watts
 RMS output power 4 ohms: 2 x 120 watts
 RMS output power 8 ohms: 2 x 60 watts
 Output power RMS bridged 8 ohms: 240 watts
 Output power RMS bridged 100 volts: 240 watts
 Output voltage tappings 4 ohms 100 – 70 – 50 – 35 volts
 |
| Cooling | Convectional |
|  |
| Channels | Channel separation > 65 dB @ 1 kHz output channels 2
 |
| Amplifier | Power amp topology class-D |
| Power Banks | Max Power Consumption: 300 watts Power Supply: 115-230 VAC
 |
|  |
| Impedance | Minimum impedance load per channel: 4 ohms Minimum impedance load bridged per channel: 8 ohms
 Applicable low impedance: yes
 |
| Frequency Response | 50 – 20 kHz |
|  |
| Specification Notes | Applicable in 100V Line input unbalanced 2
 Line input balanced 2
 |
