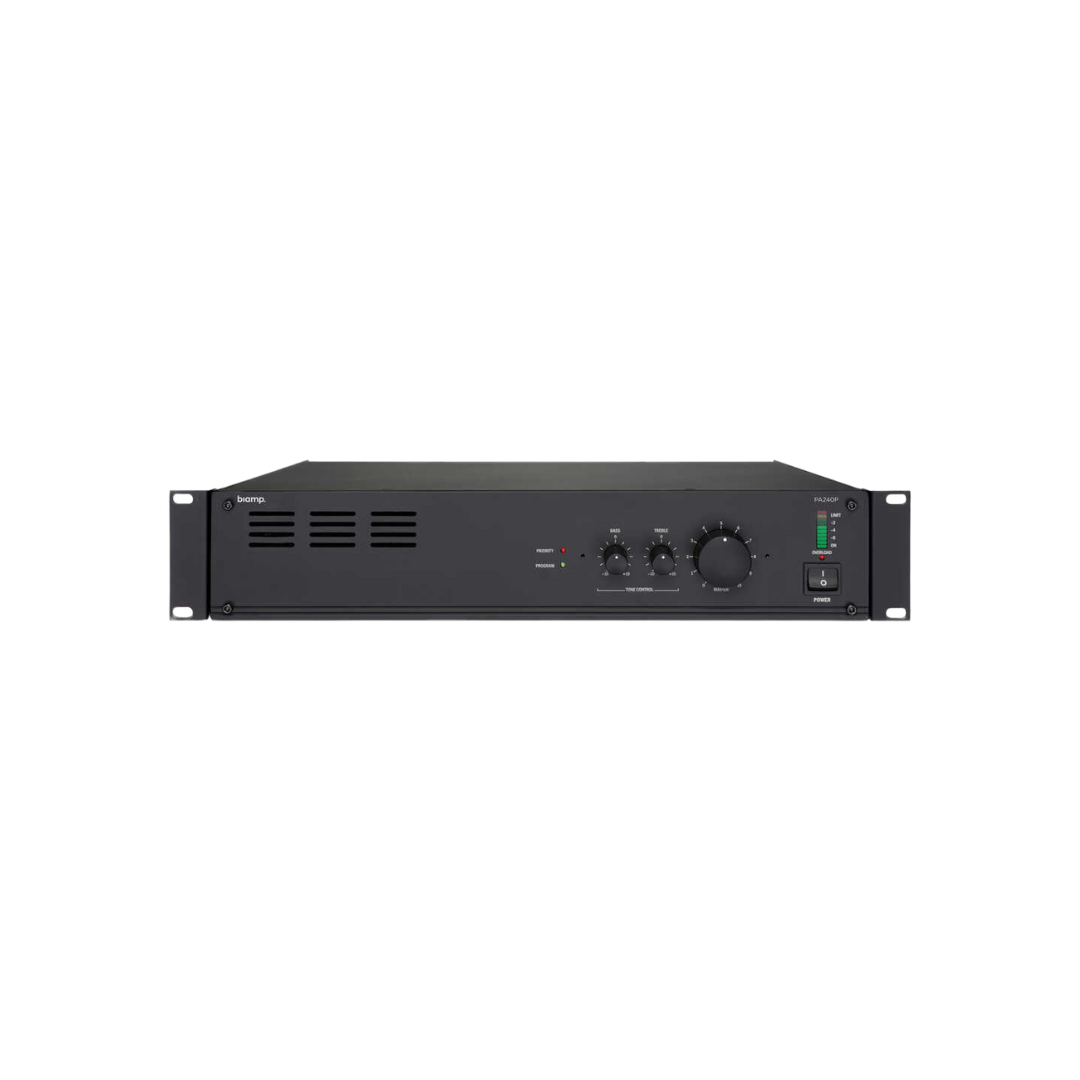

Commercial Audio PA240P
Power amplifier, 240W/100V, program and priority input, 24V priority output, tone control, 24V DC – 230 V AC.
Key Features
- 5-year warranty
- Not available in U.S. and Canada
Description
Power amplifier, 240W/100V, program and priority input, 24V priority output, tone control, 24V DC – 230 V AC.
Specs
|
Height |
Rack unit 1.73 Inches (44 mm) |
Width |
19 inches (483 mm) |
Depth |
Including front: 14.33 inches (364 mm) Build in: 13.50 inches (343 mm) |
|
Power |
Power supply: 230 VAC |
Power Consumption |
Max: 525 watts |
Power Output |
Dynamic output power 4 ohms: 240 watts
RMS output power 8 ohms: 120 watts
RMS output power 4 ohms: 240 watts
Output power RMS 100 volts: 240 watts |
|
Channels |
Output channels: 1 |
Amplifier |
Program and priority input, 24V priority output, tone control, 24V DC – 230 V AC |
|
Impedance |
Minimum impedance load per channel: 4 ohms
Minimum impedance load bridged per channel: 8 ohms |
Frequency Response |
35 – 22 k |
