$890.00
19-inch mixing amplifier; 70-100 volt/240 watts, 2 mic/line, 4 stereo line inputs, left-to-right 4 level priority system, emergency in, paging mic with chime, 24V priority output.
Key Features

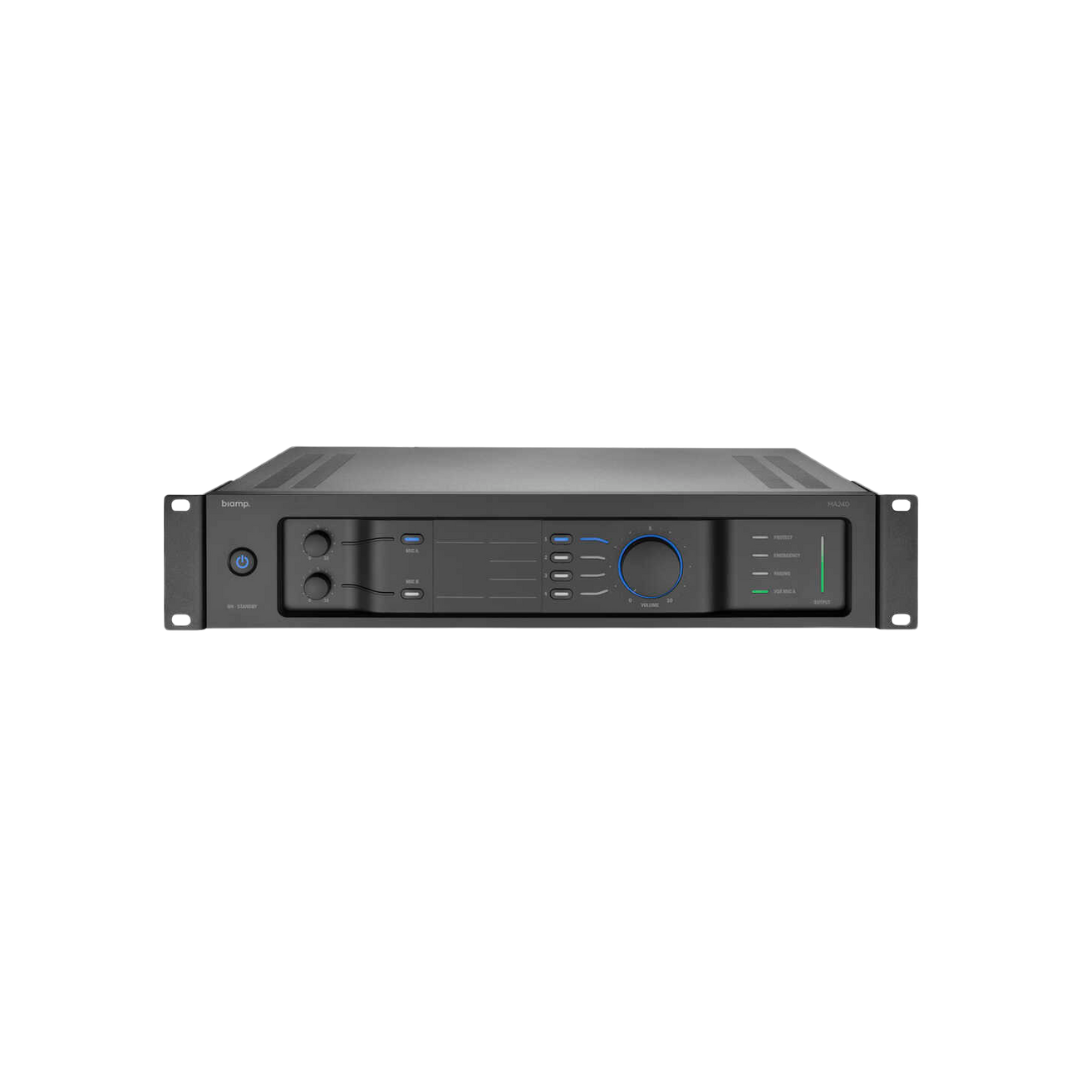

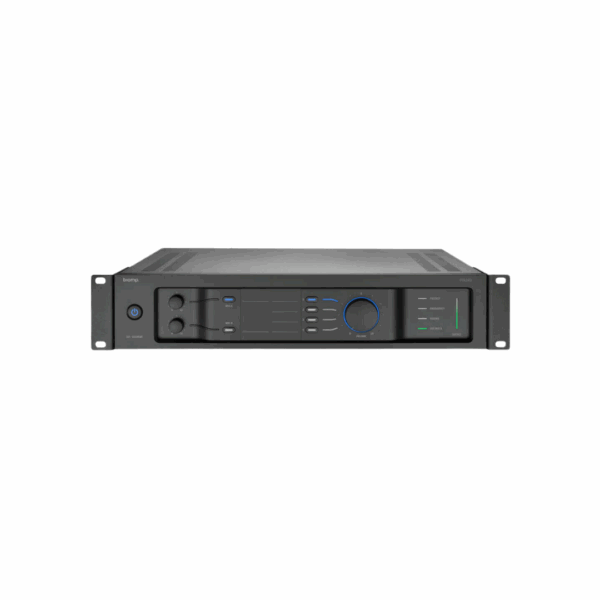

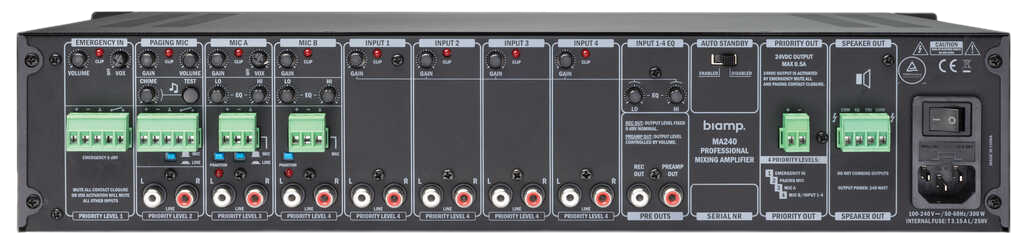

The 19-inch MA240 mixing amplifier offers 240W in 70/100-volt mode and comes with two microphone/line inputs and four stereo line, mono summed inputs. The rear features an intuitive left-to-right four-level priority system for audio routing, an emergency input, paging microphone with chime and a 24 volt DC override output.
GENERAL | |
Height | 3.5 inches (89 mm) |
Width | 19 inches (483 mm) |
Depth | 11.8 inches (300 mm) |
Weight | 13.2 lbs (6.0 kg) |
ENVIRONMENTAL | |
Ambient Operating Temperature Range | 32 – 95° F (0 – 35° C) |
Humidity | 0-95% relative humidity (non-condensing) |
Altitude | 0-6,600 ft (0-2000m) MSL |
CONTROLS & INDICATORS | |
Control | Chime: Yes Tone Control: Yes Wall Panel Controls: Yes VOX Mute: Yes Music Level Control: Yes |
Front Panel Indicator(s) | Front Panel Indicators: Signal present, clipping, overload condition, emergency mode active, paging active, VOX active |
AMPLIFIER | |
AUDIO | |
Microphone | Paging Mic Nominal Input Sensitivity (Bal. Mic): -45 dBV (5.6 mVrms) THD+N (Pre-Out, @ -6dB): < 0.4% Frequency Response (-3dB): Balanced Mic: 165 Hz – 20 kHz Unbalanced, Balanced Line: 20 Hz – 20 kHz Gain: -15 to +15 dB Chime Length: 2 sec Input Impedance: 2 kΩ Mic A, B Nominal Input Sensitivity: Balanced Mic: -45 dBV (5.6 mVrms) Balanced Line: -12 dBV (250 mVrms) Unbalanced Line: -12 dBV (250 mVrms) THD+N (Pre-Out, @ -6dB): < 0.2% Frequency Response (-3dB): Balanced Mic: 165 Hz – 20 kHz Unbalanced, Balanced Line: 20 Hz – 20 kHz Phantom Power (balanced only): +48VDC (7mA/input) VOX Attenuation (Mic A, B, Inputs 1-4): 30 dB Input Impedance: 2 kΩ Inputs 1-4 Nominal Input Sensitivity (Unbal. Line): -12 dBV (250 mVrms) THD+N (Pre-Out, @ -6dB): < 0.1% Frequency Response (-3dB): 20 Hz – 20 kHz Input Impedance: 10 kΩ |
Input Type | INPUTS Number of Inputs Emergency (line level with contact): 1 Paging Mic (mic level with contact): 1 Mic/Line (balanced): 2 Stereo Line (unbalanced): 4 Input Priority Levels: 4 Priority Input Contact: Yes Emergency Input Nominal Input Sensitivity: 0 dBV (1 Vrms) THD+N (Pre-Out, @ -6dB): < 0.5% Frequency Response (-3dB): 45 Hz – 20 kHz Input Impedance: 5 kΩ |
Impedance | 5 kΩ |
Maximum Output | Number of Output Channels: 1 Output Connectors: 4-pin, 0.3 inch (7.6 mm) Euroblock 70V/100V Mode: Yes Low Impedance Mode: Yes Priority Output Contact: Yes Minimum Operational Load: 4Ω Amplifier Topology: Class D RMS Output Power (1% THD): 240 W Dynamic Power: 280 W SNR (1% THD): > 90 dB THD+N (@ -6dB): < 0.5% Protection: Temperature, overcurrent, overvoltage, undervoltage Priority Output Voltage: 24V Max Current: 0.5A Pre-Out Nominal Output Level: 0 dBV Standby Wakeup Sensitivity: Inputs 1-4: -43 dBV (6 mVrms ± 10%) Mic A, B (RCA): -50 dBV (5 mVrms ± 10%) Mic A, B (Balanced, VOX off): -74 dBV (0.3 mVrms ± 10%) Time to Auto Standby: 10 min |
COMPLIANCE | |
Certifications | FCC Part 15B (USA) UL listed (USA and Canada) CE Marked (Europe) RoHS Directive (Europe) |
