$15,560.00

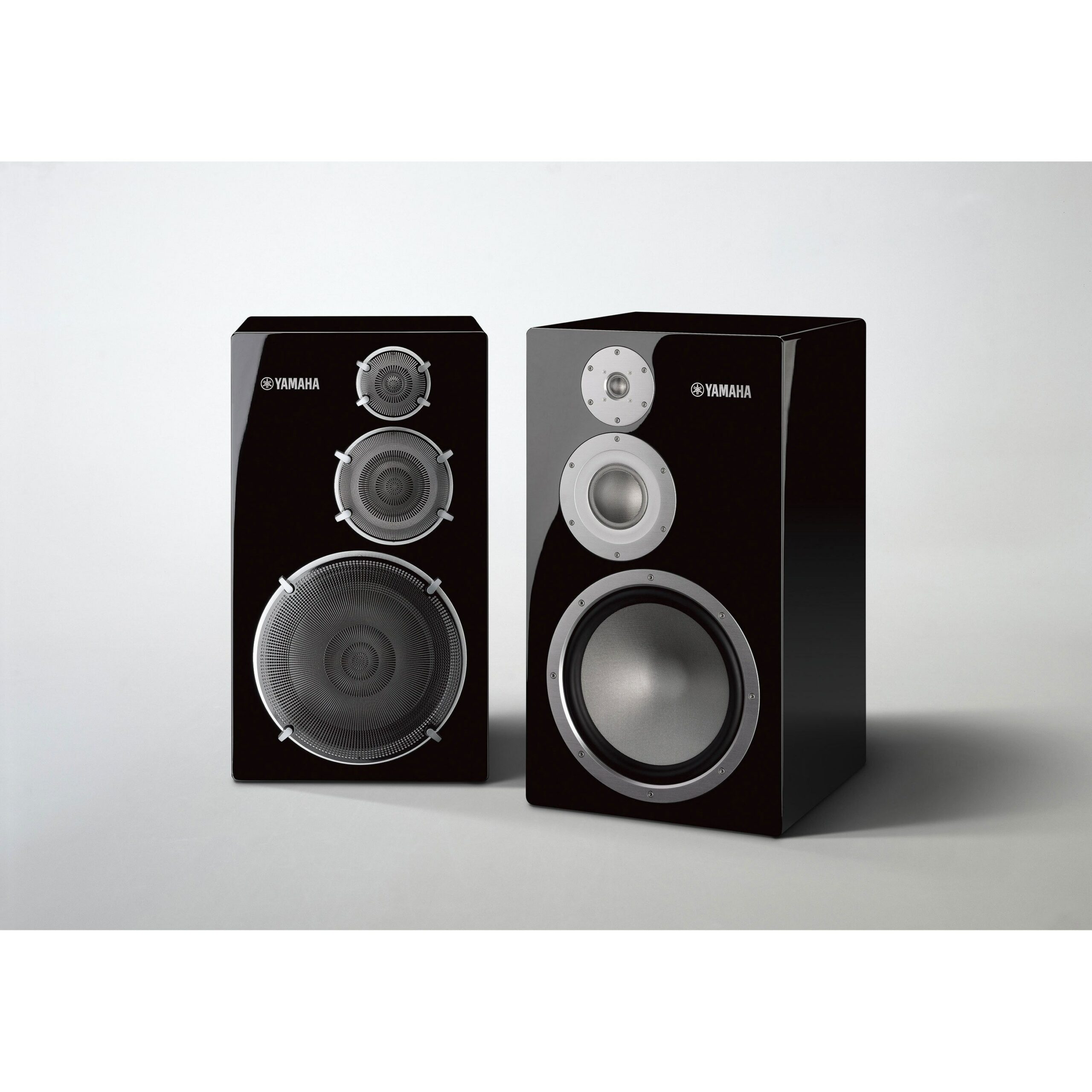

Introducing our flagship 3-way bookshelf speaker system, setting a new standard in performance and quality by which all other Hi-Fi speakers should be judged.
NS-5000’s tweeter, midrange, and woofer all feature diaphragms made of 100%* ZYLON® — a synthetic fiber created in Japan rated as the world’s strongest** and boasting optimum elasticity — and vapor-coated with Yamaha proprietary monel alloy. The soft-dome diaphragm suppresses peaks and dips in the frequency response caused by the inherent resonance of the diaphragm, while taking advantage of ZYLON’s high acoustic velocity comparable to that of beryllium. The result is a remarkably flat frequency response, with unified tone color and acoustic velocity over the entire frequency range, providing a comfortable listening experience and meticulously accurate, superb sound reproduction of the highest degree.
Mounted on the back of the tweeter and midrange speaker units are newly developed R.S. Chambers (patent pending) that suppress unnecessary tube resonance generated behind the diaphragm. Two specially shaped tubes installed in accordance with our proprietary acoustic analysis cancel tube resonance. These R.S. Chambers achieve higher-resolution audio reproduction by eliminating the need for a large quantity of sound-absorbing material inside the enclosure that tends to smooth the frequency response of each speaker unit and might degrade minute nuances of the sound.
| Type | 3-way bookshelf bass-reflex type | |
|---|---|---|
| Woofers | 12″ cone type | |
| MidRange Driver | 3-1/4″ dome type | |
| Tweeter | 1-1/4″ dome type | |
| Frequency Response | 26 Hz-40 kHz (-10dB), -100 kHz (-30dB) | |
| Nominal Input Power | 200 W | |
| Maximum Input Power | 600 W | |
| Sensitivity | 88 dB / 2.83 V/1 m | |
| Crossover Frequencies | 750 Hz / 4.5 kHz | |
| Impedance | 6 ohms (minimum 3.5 ohms) | |
| Dimensions (W x H x D) | 15-1/2″ x 27-1/8″ x 15″ (with speaker terminals) | |
| Weight | 77.2 lbs. / unit | |

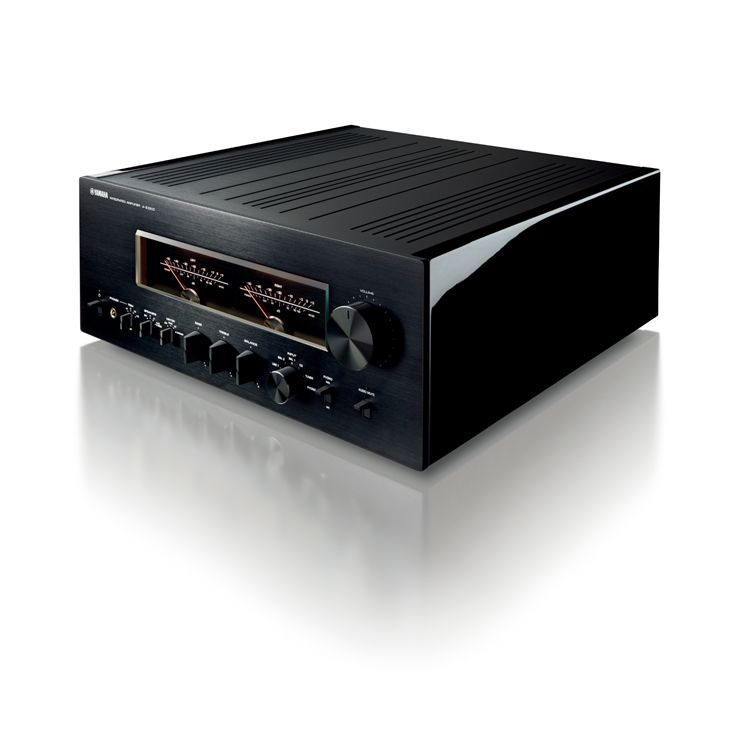

In the unyielding pursuit of innovation and musicality, Yamaha is proud to present its flagship integrated amplifier – the A-S3200. Meticulously designed from the ground up, the A-S3200 realizes the ambitions of the artist and establishes a new benchmark in high-fidelity audio.
