| Maximum number of simultaneous effects |  | 6 effects |
| User patch memories |  | 100 |
| Sampling frequency |  | 44.1 kHz |
| A/D conversion |  | 24-bit 128× oversampling |
| D/A conversion |  | 24-bit 128× oversampling |
| Signal processing |  | 32-bit |
| Frequency response |  | 20 Hz – 20 kHz (+0.5 dB/−0.5 dB) (when 10kΩ load) |
| Display |  | 160 × 128 dot-matrix LCD |
| Input | INPUT | Standard mono phone jack |
|  |  | Rated input level: −20 dBu |
|  |  | Input impedance (line): 470 kΩ |
| Outputs | L/R | Standard mono phone jacks |
|  |  | Maximum output level: +7.2 dBu (when output impedance 10 kΩ or higher) |
| Input S/N |  | 122 dB |
| Noise floor (residual noise) | L/R | –100 dBu |

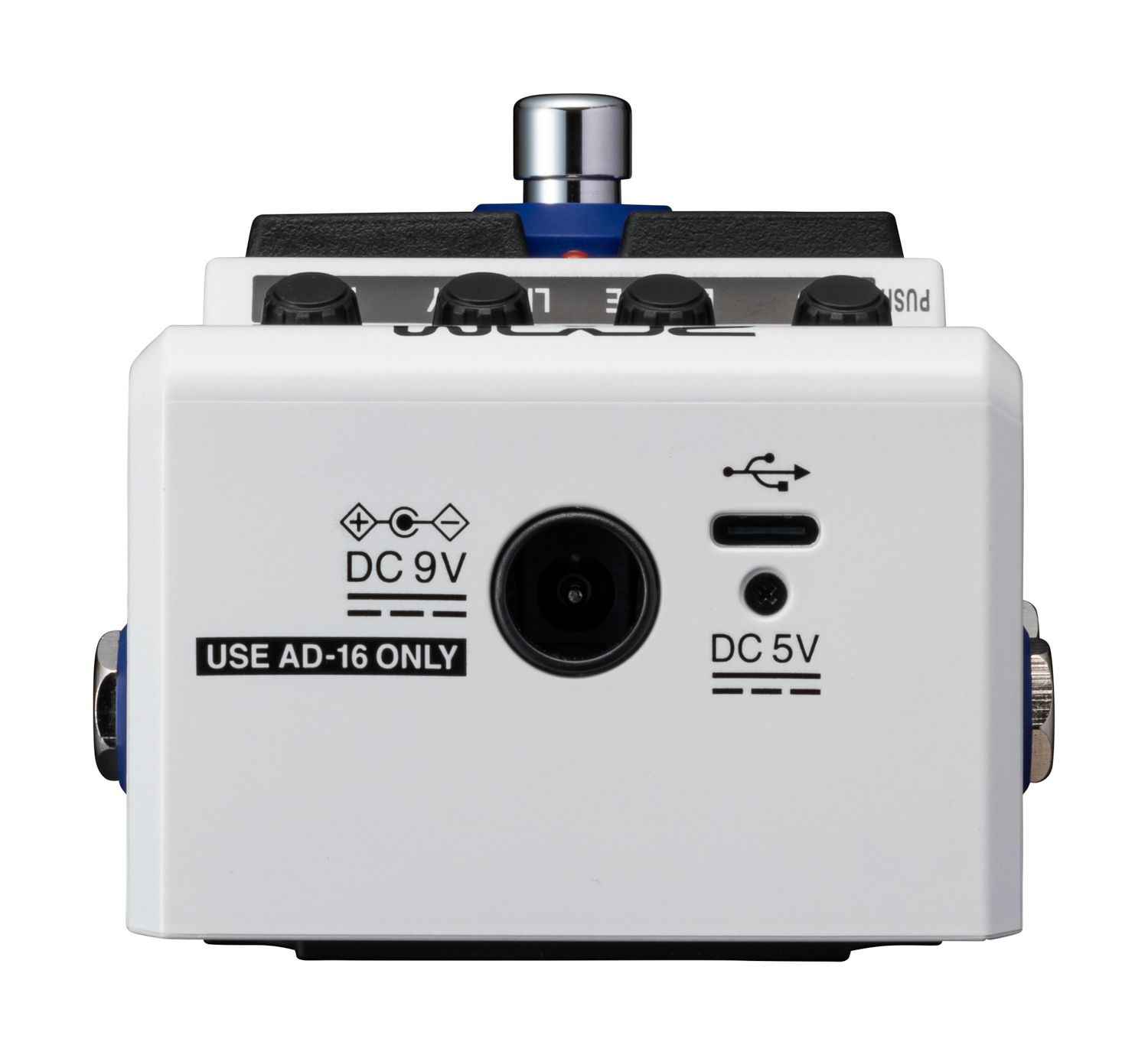

| Power | AC adapter | 9V DC 500mA center negative (ZOOM AD-16) |
|  | 2 AA batteries | Alkaline, Lithium or rechargeable NiMH batteries |
|  |  | • USB bus power is supported. |
| Estimated operation times using batteries | Alkaline batteries | About 7 hours |
|  | NiMH batteries (1900 mAh) | About 6.5 hours |
|  | Lithium batteries | About 14 hours |
|  |  | • These values are approximate. • Battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions. |
| USB | Port | USB 2.0 Type-C |
|  | Supported cable type | Type-C |
|  | Handy Guitar Lab | USB1.1 Full Speed |
|  |  | • Use a USB cable that supports data transfer. |
| Dimensions |  | 133 mm (D) × 79 mm (W) × 61 mm (H) |
| Weight |  | 353 g (excluding batteries), 400 g (including batteries) |
