Yamaha VXS5W

$175.00

VXS5W Surface Mount Speaker

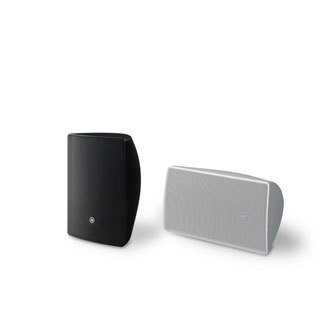

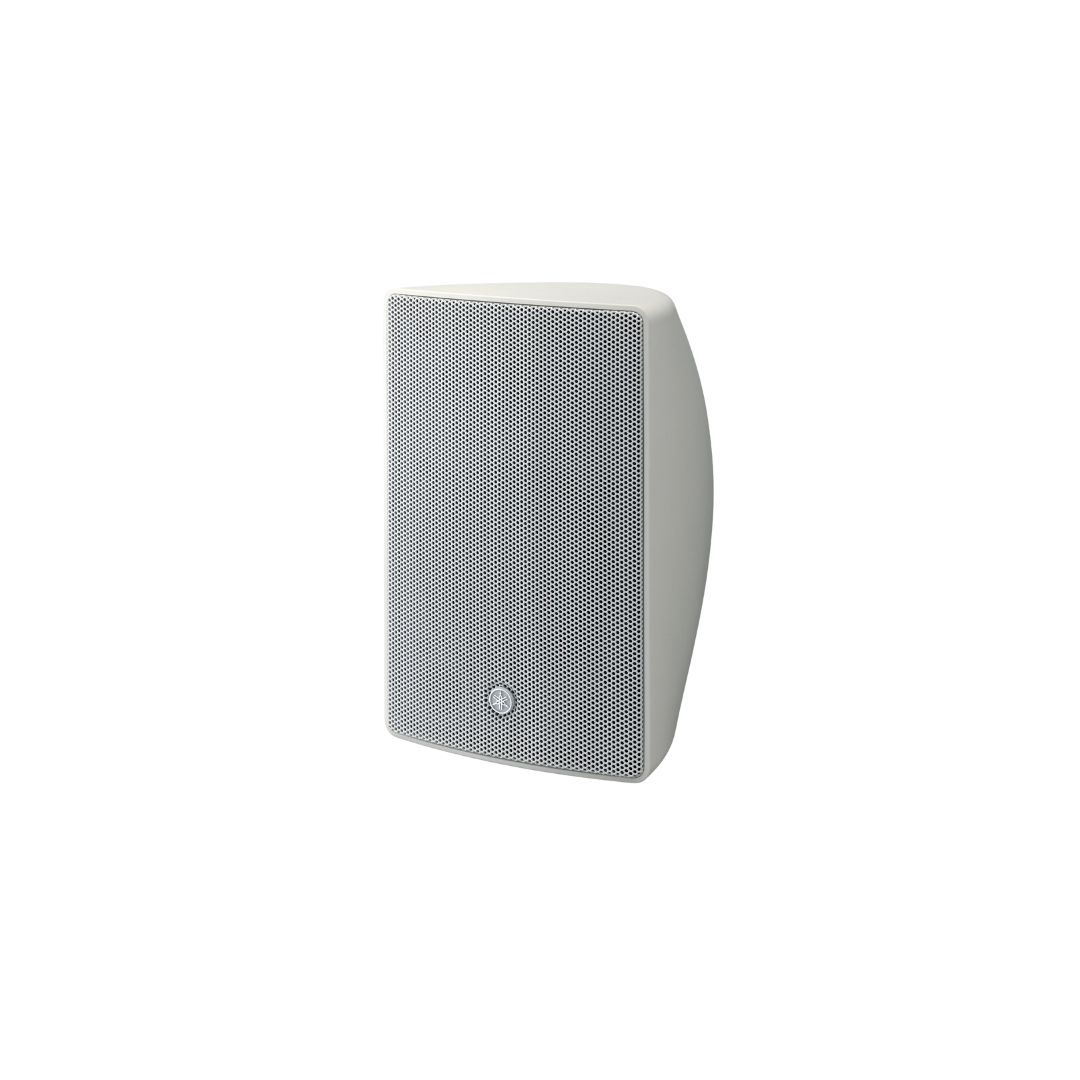

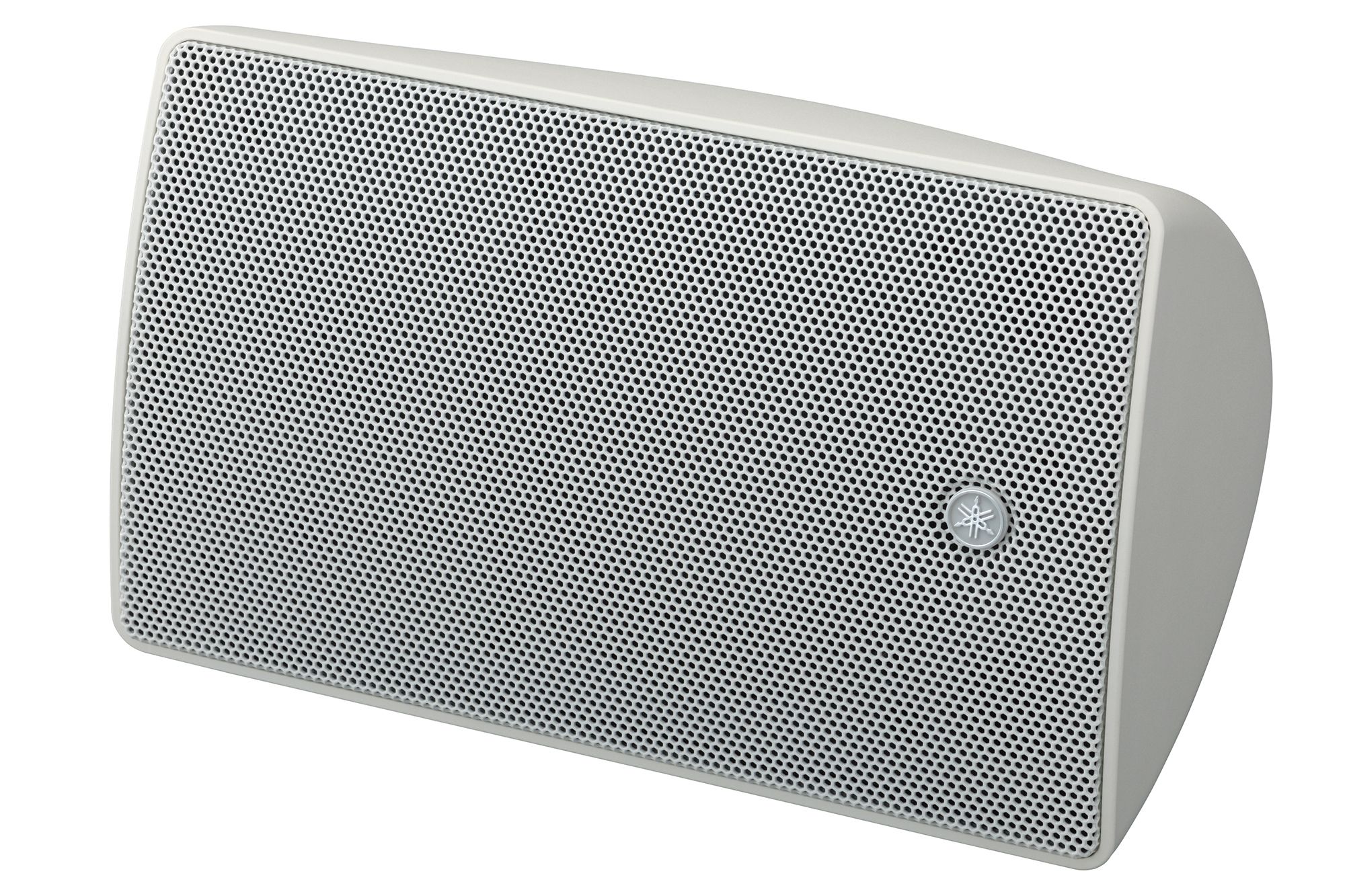

The Yamaha VXS5W is a white, two-way, bass-reflex surface-mount loudspeaker designed for commercial installations, such as restaurants, retail stores, and offices. It features a 5.25-inch woofer and a 0.75-inch soft dome tweeter.

This speaker is part of Yamaha’s versatile VXS series and is compatible with both high-impedance (70V/100V line) and low-impedance (8Ω) audio systems.
Features and design
  • Dual-impedance operation: An integrated transformer allows the VXS5W to be used with both distributed (high-impedance) audio systems and conventional low-impedance amplifiers.
  • Weather-resistant build: An IP35 rating ensures the speaker is protected against dust and water, making it suitable for use in covered outdoor areas.
  • Paintable enclosure: The body, grille, and brackets can be painted to match the interior decor of any space.
  • Flexible installation: The included mounting hardware supports both horizontal and vertical installation on walls or ceilings. The bracket’s gear guides assist in setting consistent, precise angles.
  • Acoustic design: The cabinet features an optimized bass-reflex tuning for a tight low-end. The grille has a hexagonal design that increases the aperture ratio for clearer sound.
Specifications
  • Speaker type: 2-way, bass-reflex
  • Drivers:
    • LF: 5.25-inch cone driver
    • HF: 0.75-inch soft dome tweeter
  • Frequency range (-10dB): 62Hz–20kHz
  • Nominal coverage (H x V): 120° x 120°
  • Power rating: 150W Program / 75W Noise
  • Nominal impedance: 8Ω
  • Transformer taps:
    • 100V line: 30W, 15W, 7.5W
    • 70V line: 30W, 15W, 7.5W, 3.8W
  • Sensitivity: 89dB SPL (1W, 1m on axis)
  • Maximum SPL: 114dB Peak (Calculated)
  • Dimensions (W x H x D): 176 x 280 x 163mm (6.9″ x 11.0″ x 6.4″)
  • Weight: 3.6kg (7.9 lbs)
  • Connectors: 1 x 4-pin Euroblock (Input: +/- and Loop Thru: +/-)
