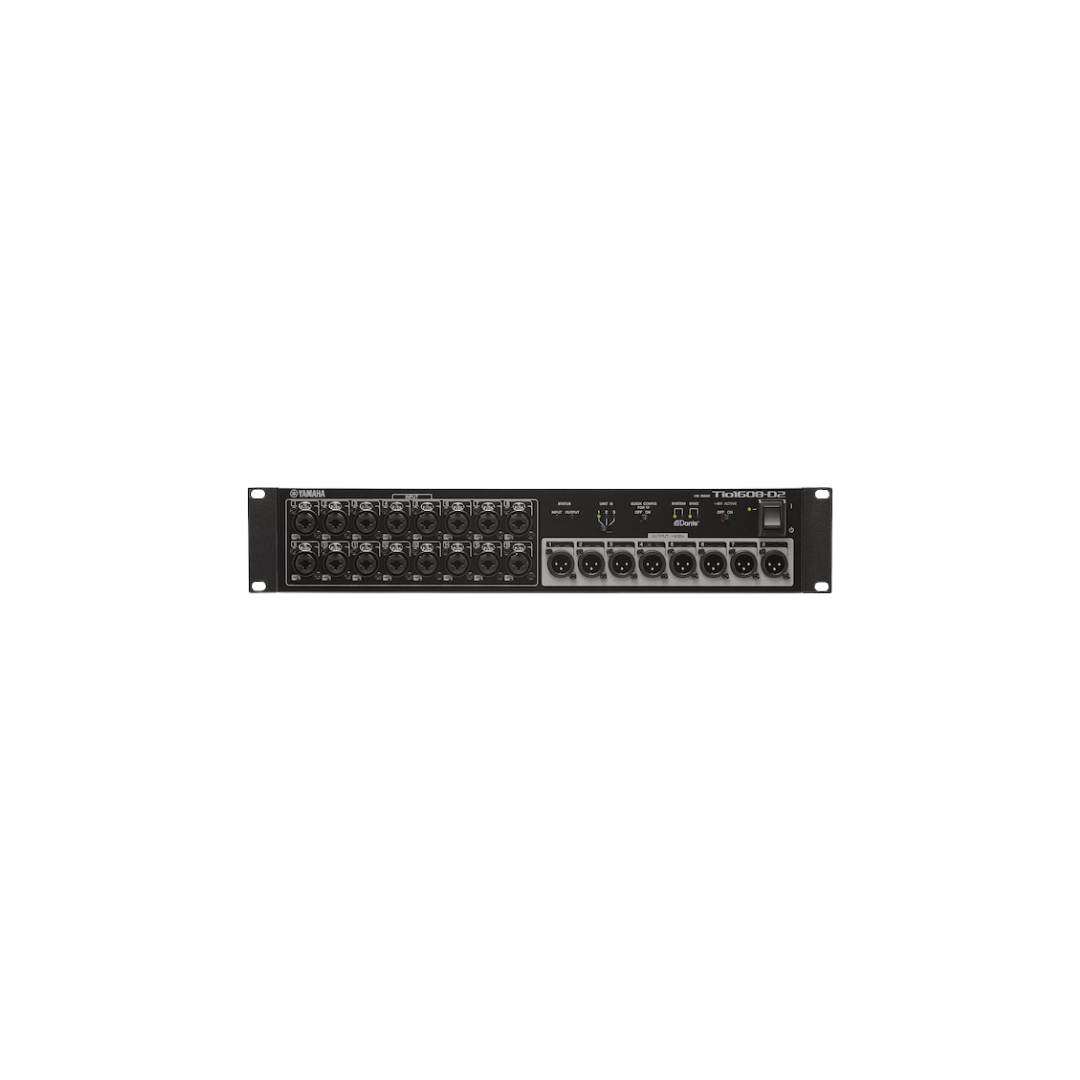

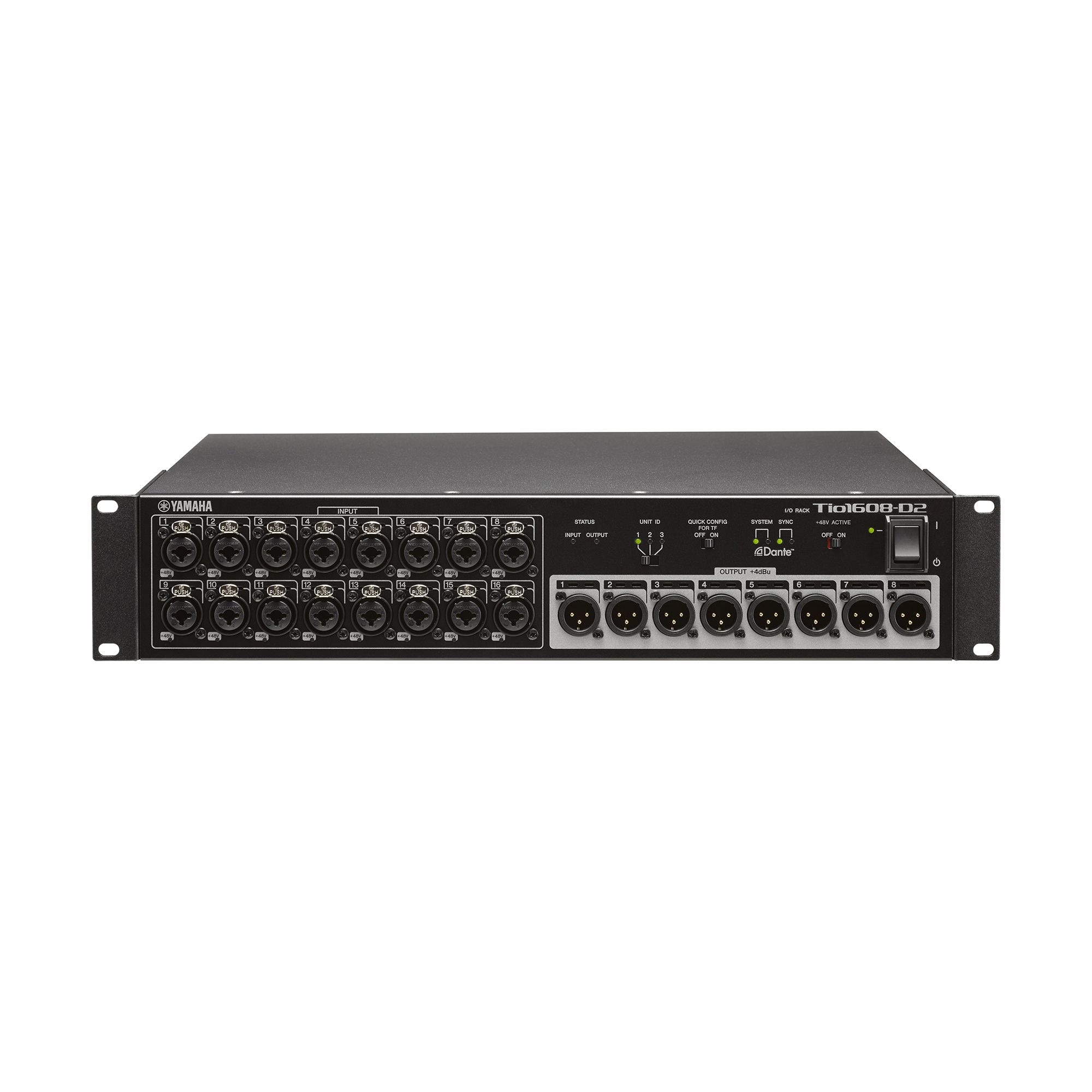

Tio1608-D2 Audio I/O Rack

• High-quality sound: The Tio1608-D2 is equipped with 16 of Yamaha’s recallable D-PRE microphone preamplifiers, which deliver a natural and musical sound.
• High sampling rate: This unit can operate at a sample rate of up to 96kHz for high-definition audio.
• Fast setup: When used with Yamaha DM3 and TF-series mixers, the rack’s network settings and audio patching can be configured automatically using a “Quick Config” or “Auto Setup” feature.
• Flexible system expansion: Dante compatibility allows the rack to be combined with a wide range of other Dante-enabled equipment. For example, a TF-series mixer with an optional NY64-D expansion card can connect to up to three Tio1608-D2 units via a daisy-chain connection.
• Low latency: Dante’s network audio protocol offers low jitter and low latency, ensuring reliable, high-quality audio transmission.
• Remote control: Microphone preamps can be remotely controlled from a connected Yamaha digital console.

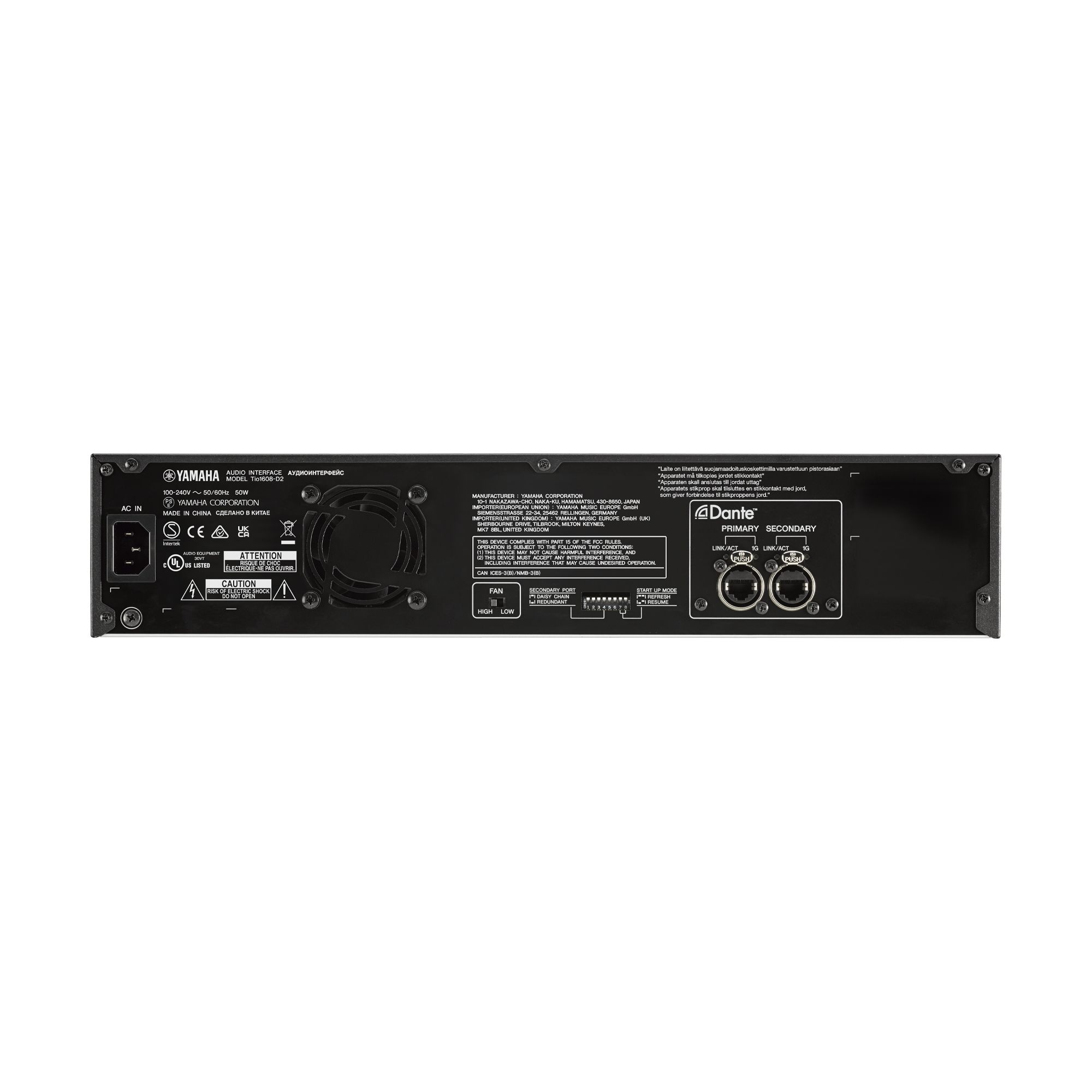

• Primary and secondary network connections: The Tio1608-D2 includes redundant network connections for reliable, flexible system setup.

• I/O: 16 mic/line inputs and 8 line outputs.
• Inputs: 16 combo XLR/TRS jacks with phantom power.
• Outputs: 8 XLR outputs.
• Power consumption: 50W.
• Dimensions (W x H x D): 480 mm x 88 mm x 364 mm (18.9″ x 3.5″ x 14.4″).
• Weight: 5.7 kg (12.6 lbs).
