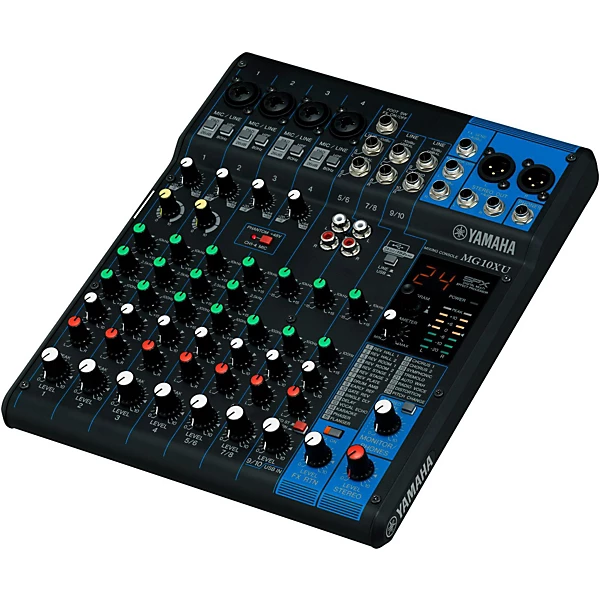

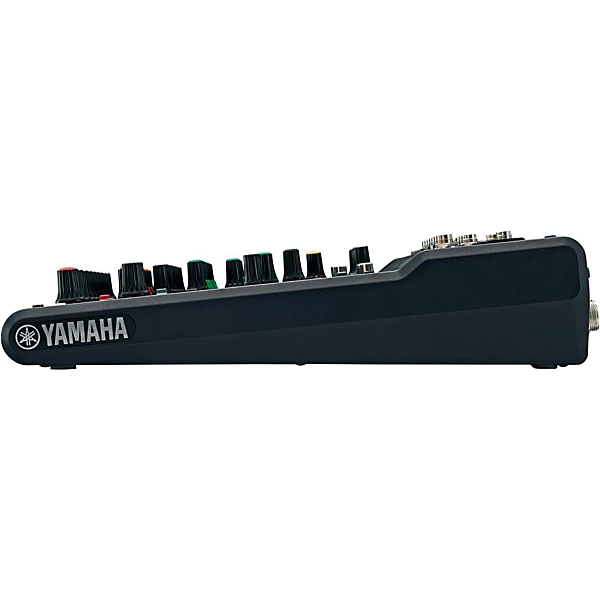

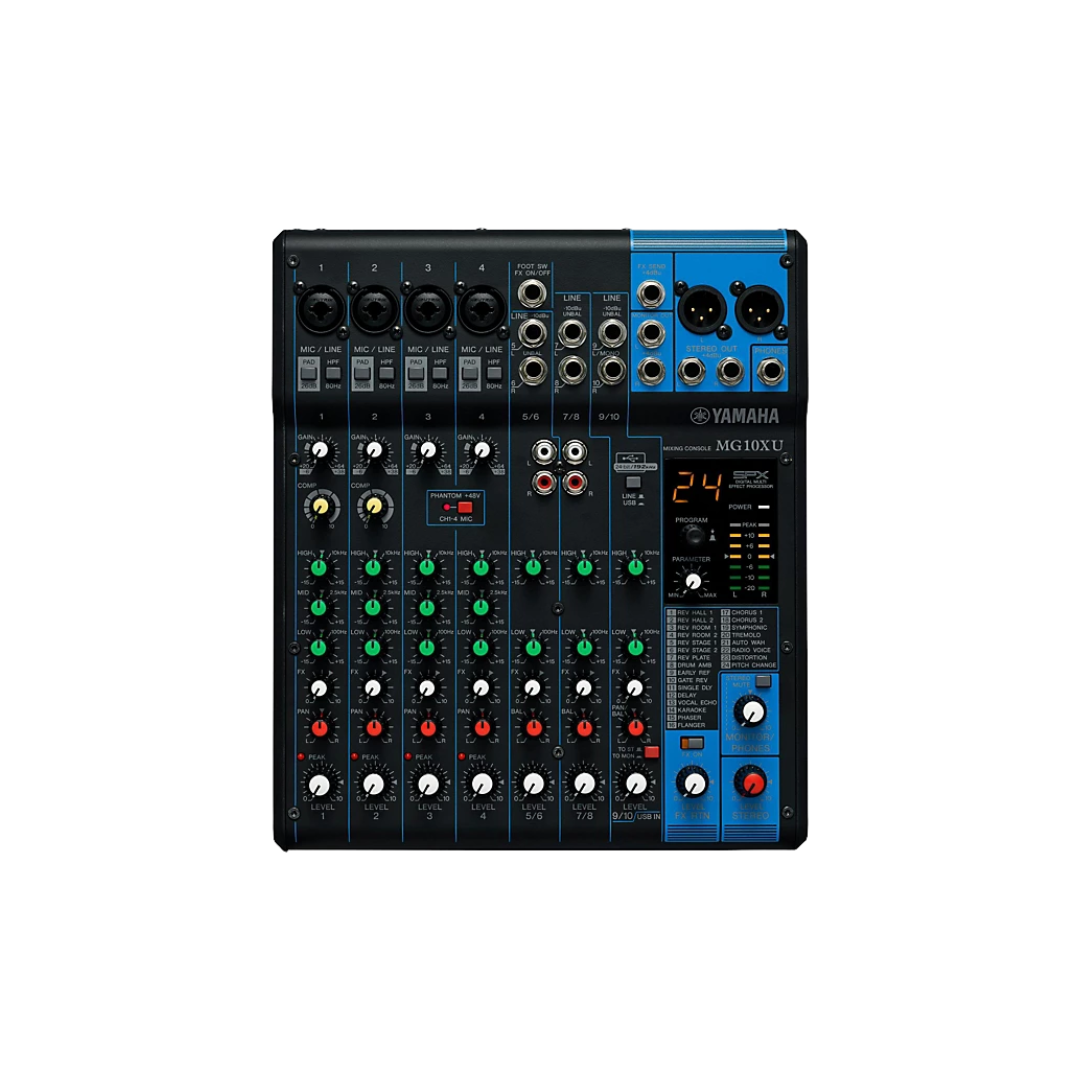

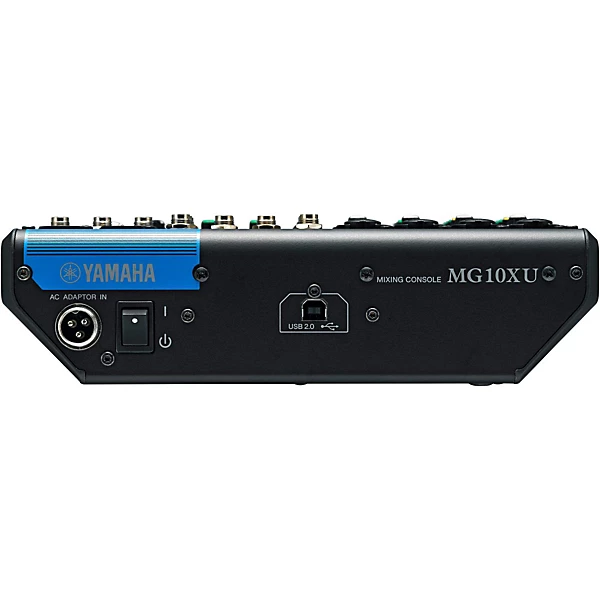

Yamaha MG10XU

Contact for more information.

MG10XU

Features

  • Outstanding microphone preamps
  • Switchable phantom power and PAD switch
  • 1-knob compressors
  • EQ and high-pass filters
  • AUX/Effect Sends/Group
  • LED level metering
  • Built-in SPX digital effects
  • Metal chassis
  • USB

Specs

  • Onboard processors : SPX algorithm: 24 programs
  • Phantom power: +48V
  • Digital I/O: USB Audio Class 2.0 compliant, Max 192kHz, 24-bit
  • Input Channels: 4 Mono [MIC/LINE], stereo [LINE]: 3
  • Output Channels: STEREO OUT: 2
  • MONITOR OUT: 1
  • PHONES: 1
  • AUX SEND: 1
  • Bus: Stereo: 1, AUX [FX]: 1
  • Input Channel Function
  • PAD: 26dB (Mono)
  • HPF: 80Hz, 12dB/oct (Mono)
  • COMP: 1-knob compressor Threshold: +22dBu to -8dBu, Ratio: 1:1 to 4:1, Output level: 0dB to 7dB, Attack time: approx. 25 msec, Release time: approx. 300 msec
  • EQ HIGH: Gain: +15dB/-15dB, Frequency: 10kHz shelving
  • EQ MID: Gain: +15dB/-15dB, Frequency: 2.5kHz peaking
  • EQ LOW: Gain: +15dB/-15dB, Frequency: 100Hz shelving
  • PEAK LED: LED turns on when post EQ signal reaches 3dB below clipping
  • Level Meter: 2 x 7-segment LED meter [PEAK, +10, +6, 0, -6, -10, -20dB]
