Yamaha DXR15mkII

Name: Yamaha DXR15mkII - Cheang Sim Center
Price: 899.00 USD
Availability: InStock

Contact for more information.

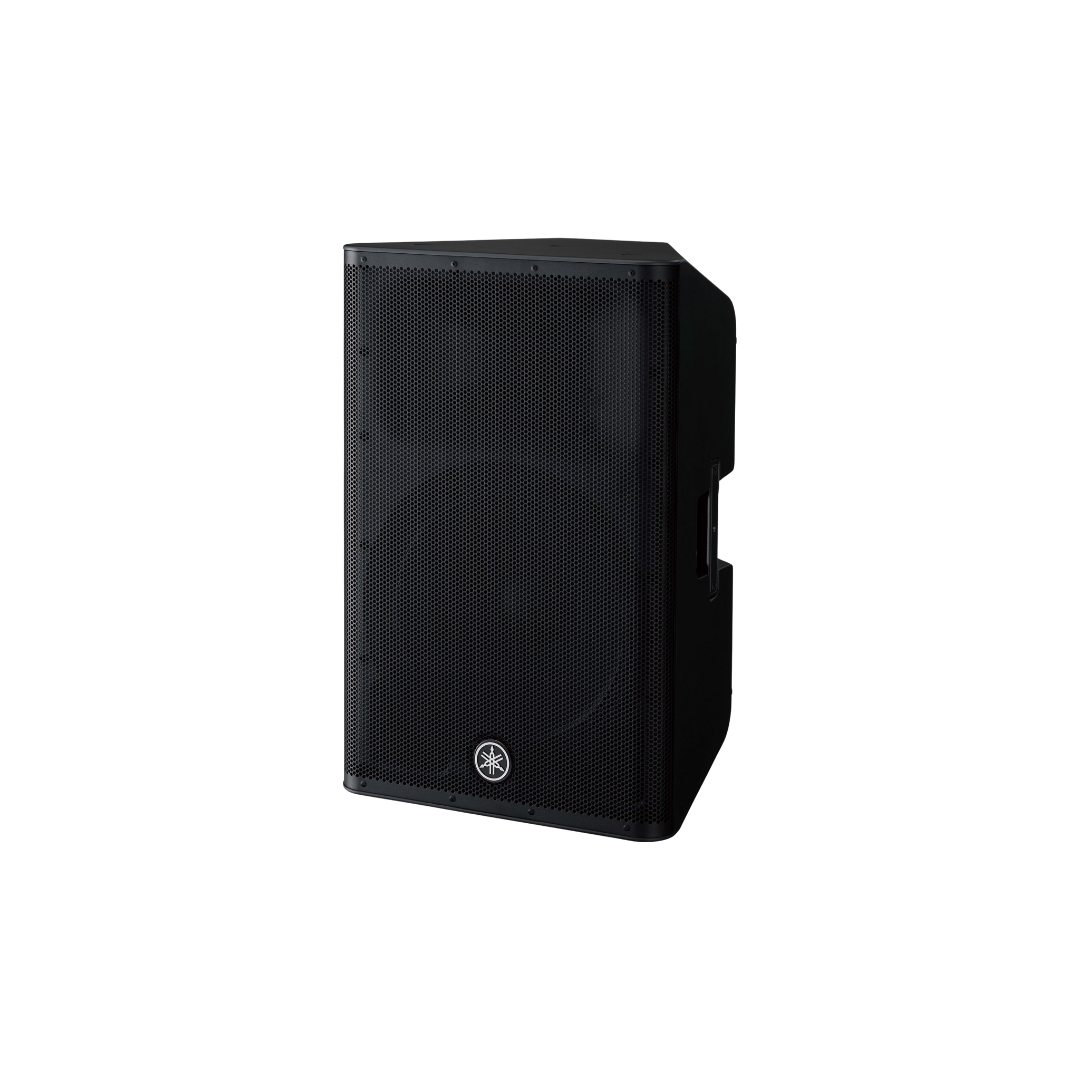

The Yamaha DXR15mkII is a powerful 15-inch 2-way powered loudspeaker designed for professional live sound applications, including front-of-house, floor monitoring, and fixed installations. It is known for its clarity, high output level, and a lightweight yet durable ABS enclosure. The speaker was developed in collaboration with touring loudspeaker specialists NEXO.

Top features

High-power output: The DXR15mkII features a highly efficient 1100W Class-D amplifier, delivering a maximum sound pressure level (SPL) of 134dB. This provides impressive volume with minimal distortion.
Detailed, clear audio: An upgraded 1.75″ neodymium compression driver delivers clear voice reproduction and musicality. The speaker’s crossover is optimized using Yamaha’s proprietary FIR-X tuning, which uses linear-phase FIR filters for a smooth frequency response.
Built-in 3-channel mixer: This flexible, integrated mixer makes the speaker ideal for simple sound reinforcement setups by allowing you to connect multiple input sources, such as microphones and line-level instruments, directly.
D-CONTOUR multi-band compressor: The “Intelligent Dynamic Control” (D-CONTOUR) technology acts as a multi-band compressor, dynamically adjusting the EQ to maintain consistent, clear sound quality across different volume levels.
Flexible mounting options: The DXR15mkII can be used as a main speaker, a floor monitor (with mirror-mode capability), pole-mounted, or flown for fixed installations.

Key specifications

	Yamaha DXR15mkII
Speaker Type	15″ 2-way, bi-amped powered speaker
Power Configuration	Bi-amped (LF: 950W, HF: 150W)
Total Power	1100W Class D
Frequency Range	49Hz–20kHz (-10dB)
Maximum Peak SPL	134dB
Inputs	1x XLR-1/4″ combo (mic/line), 2x 1/4″ (L/Mono, R), Dual RCA stereo
Outputs	1x XLR (thru), 1x XLR (link out)
Weight	48.1 lbs (21.8 kg)
Dimensions (W x H x D)	17.5″ x 27.5″ x 15″ (445mm x 700mm x 380mm)
