Yamaha DXR12mkII

$799.00

The Yamaha DXR12mkII is a high-power, lightweight 12-inch 2-way powered loudspeaker, designed for demanding live sound applications, including front-of-house, floor monitoring, and fixed installations. Developed in collaboration with touring loudspeaker specialists NEXO, it combines a robust 1100W Class-D amplifier with advanced digital signal processing (DSP) for exceptional clarity and high output levels.
Top Features
  • High Output Power: Features a highly efficient 1100W Class-D amplifier that delivers an impressive maximum sound pressure level (SPL) of 134dB.
  • Premium Transducers: Equipped with a 12-inch LF driver and a newly developed, larger yet lighter, 1.75-inch neodymium HF compression driver for precise midrange and high frequencies.
  • FIR-X Tuning™: Yamaha’s proprietary linear-phase FIR filter crossover network optimizes frequency and phase response for a smooth and clear sound around the crossover point.
  • D-CONTOUR Intelligent Dynamic Control: This multi-band compressor dynamically adjusts EQ settings based on output level, with switchable modes (FOH/MAIN or MONITOR) to ensure consistent clarity and musicality at any volume.

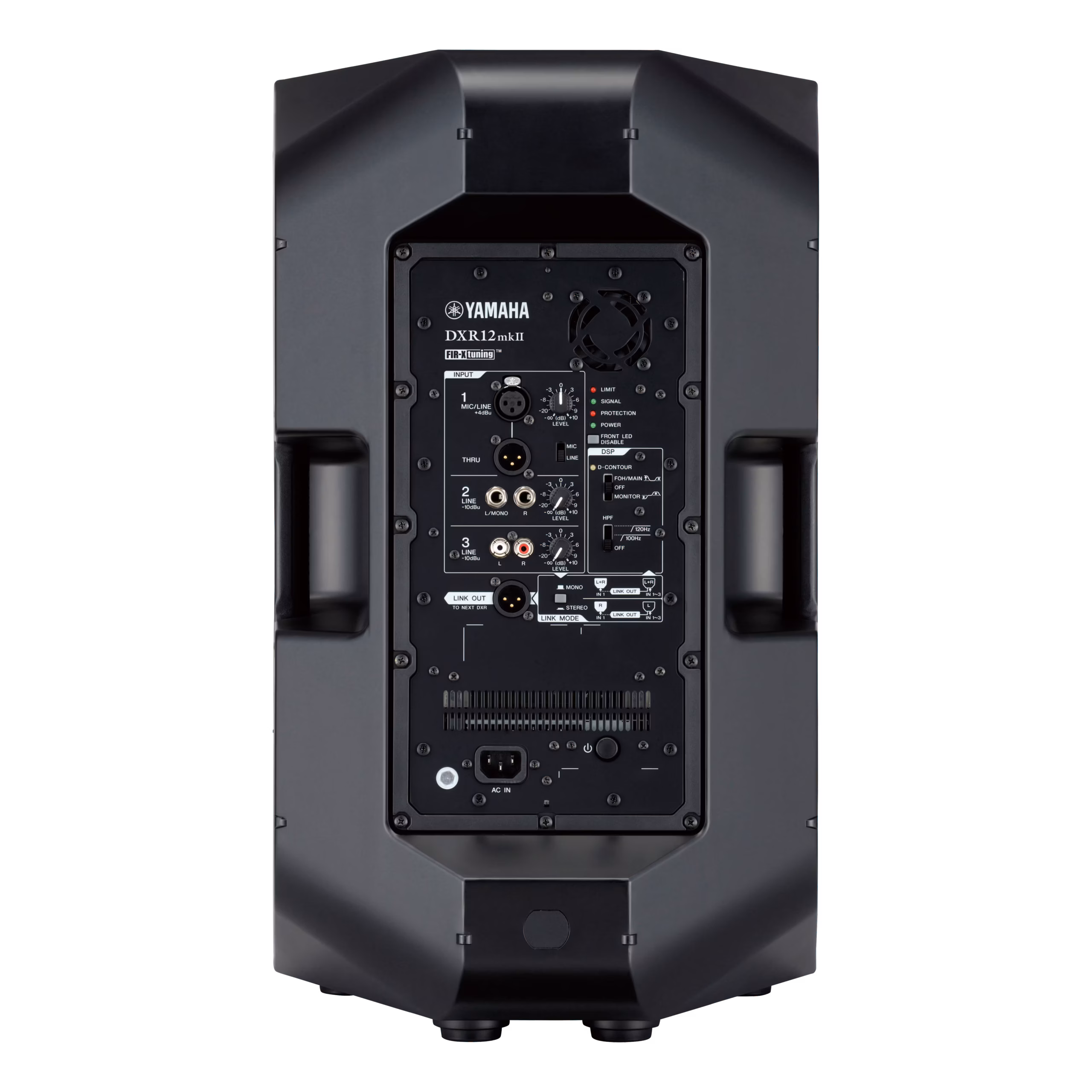

  • Integrated 3-Channel Mixer: The onboard mixer allows for direct connection of up to three simultaneous inputs (mic/line, 1/4″ phone, RCA) for simple sound reinforcement setups without an external mixer.
  • Versatile Placement: The durable ABS enclosure features a dual-angle pole mount (0° or 7° downward tilt) and a symmetrical design for effective use as a floor monitor in “mirror-mode”.
Key Specifications
Feature Specification
Speaker Type 12″ 2-way, Bi-amped Powered Speaker, Bass-reflex type
Frequency Range (-10dB) 52Hz – 20kHz
Maximum Peak SPL 134dB SPL
Total Power 1100W Dynamic (700W Continuous)
LF Driver 12″ cone, 2.5″ voice coil, Ferrite magnet
HF Driver 1.75″ diaphragm, 1″ throat, Neodymium magnet
Coverage (H x V) 90° x 60° Constant Directivity Horn
Inputs XLR-3-31 x1, Phone x2, RCA PIN x 2
Dimensions (W x H x D) 14.3″ x 23.6″ x 13.8″ (362 x 601 x 350 mm)
Weight 41.0 lbs (18.6 kg)
