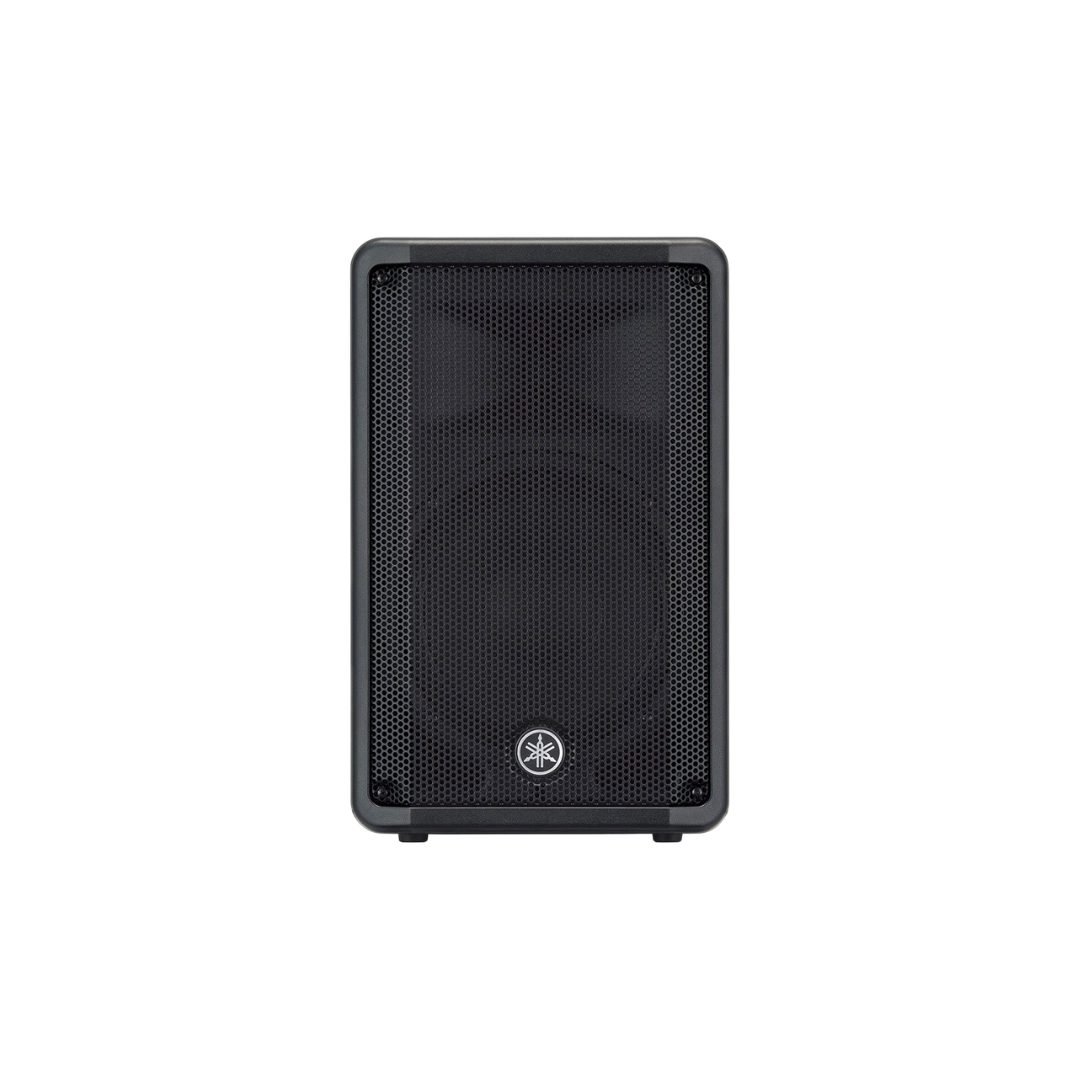

The Yamaha DBR10 is the most compact and portable model in the DBR series, a 10-inch, 2-way powered loudspeaker offering a balance of performance and affordability. Despite its small size, it can deliver high-quality sound for a variety of small to medium-sized applications, including personal monitoring, small live acoustic gigs, and events.
Features and technology
700W Class-D amplifier: The DBR10 is equipped with a high-efficiency Class-D amplifier, delivering up to 700 watts of dynamic power (350W continuous) to achieve a maximum SPL of 129dB.
Custom-designed components: It features a 10-inch woofer for powerful bass with low distortion and a 1-inch precision compression driver for accurate high frequencies.
FIR-X tuning: This proprietary DSP technology optimizes the crossover frequency and phase alignment, ensuring high-resolution audio with smooth frequency response.
D-CONTOUR processing: The onboard dynamic multi-band processor can be switched between two modes: FOH/MAIN for use as a primary speaker or MONITOR for use as a floor monitor.
2-channel mixer: The integrated mixer offers a flexible range of inputs, including combination jacks for microphones and line-level signals, plus RCA inputs for stereo sources like media players.
Lightweight and durable cabinet: Made from a compact and durable plastic, the DBR10 is highly portable. It includes a steel grille for protection and ergonomic handles for easy transport.

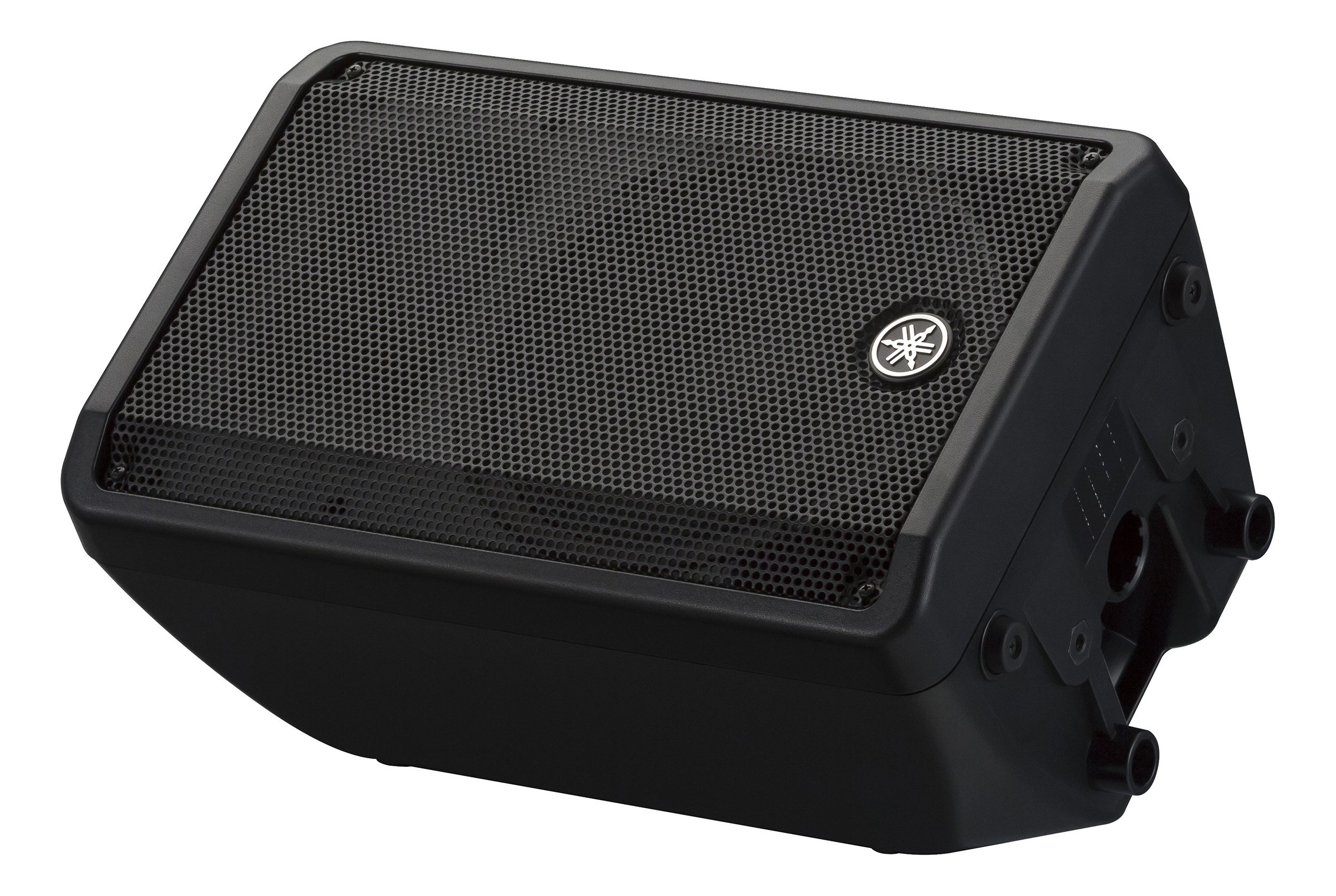

Smart floor monitor design: An optimized 50° wedge angle allows the speaker to be used as a floor monitor.
Rigging points for installation: Two M8 rigging threads on the bottom allow for installation with optional brackets or eyebolts.
Specifications
Speaker Type: 2-way, Bi-amp powered, bass-reflex type
Frequency Range (-10dB): 55Hz – 20kHz
Maximum Output Level (1m; on axis): 129dB SPL
Nominal Coverage (HxV): 90° x 60°
Dimensions (WxHxD): 308mm x 493mm x 289mm (12.1″ x 19.4″ x 11.4″)
