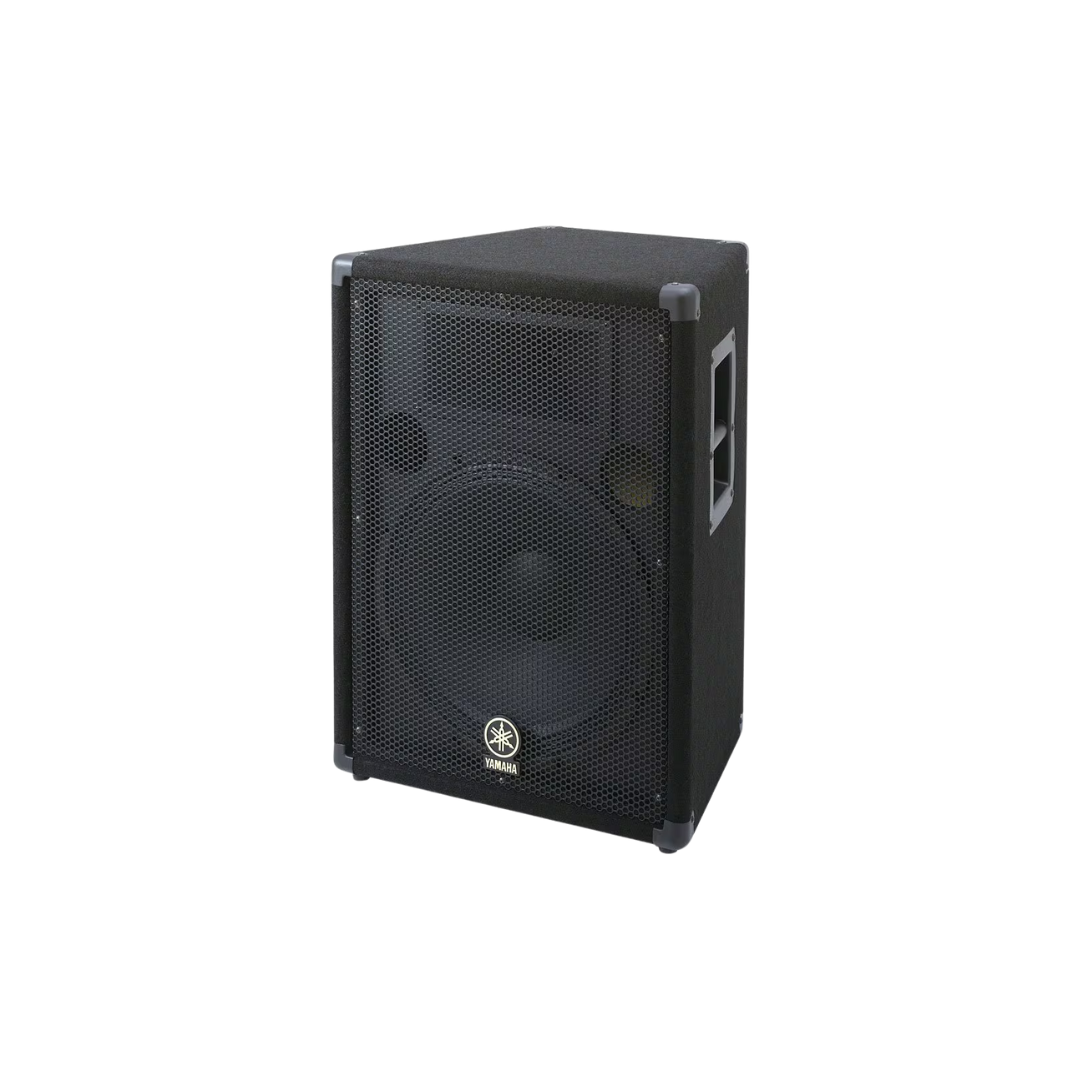

The Yamaha BR15 is a passive 15-inch, 2-way PA speaker designed for musicians, schools, and small churches looking for a powerful and affordable option. It is part of Yamaha’s older BR series, which is largely discontinued and has been succeeded by the CBR and DBR series. The speaker features a titanium horn-loaded tweeter and a bass-reflex design to deliver full, robust sound.
Key features
Quality audio components: The BR15 uses a 15-inch woofer and a 1-inch titanium horn-loaded compression driver for high-quality audio. The crossover protection circuitry helps prevent damage to the high-frequency tweeter from excessive input.
Durable construction: The cabinet is constructed from carpet-covered wood with steel corner protectors and a steel mesh grille to withstand the rigors of travel and live performance.
Flexible placement: It includes a pole socket for use with a speaker stand and is also designed with a trapezoidal shape for use as a floor monitor.
Simple connectivity: The speaker is equipped with dual 1/4″ phone jacks for easy input and parallel connection.
Inherited sound quality: The BR series was developed in the USA to deliver the reliable audio quality of Yamaha’s legendary Concert Club series at a more affordable price.
Specifications
Speaker Type: 2-way, bass-reflex passive speaker
Power Handling (Program / Peak): 400W / 800W
Nominal Impedance: 8 ohms
Frequency Range (-10dB): 60Hz–20kHz
Nominal Coverage (HxV): 90° x 40°
Maximum Peak SPL: 98 dB SPL @ 1m
Dimensions (WxHxD): 485mm x 656mm x 365mm (19.1″ x 25.8″ x 14.4″)
