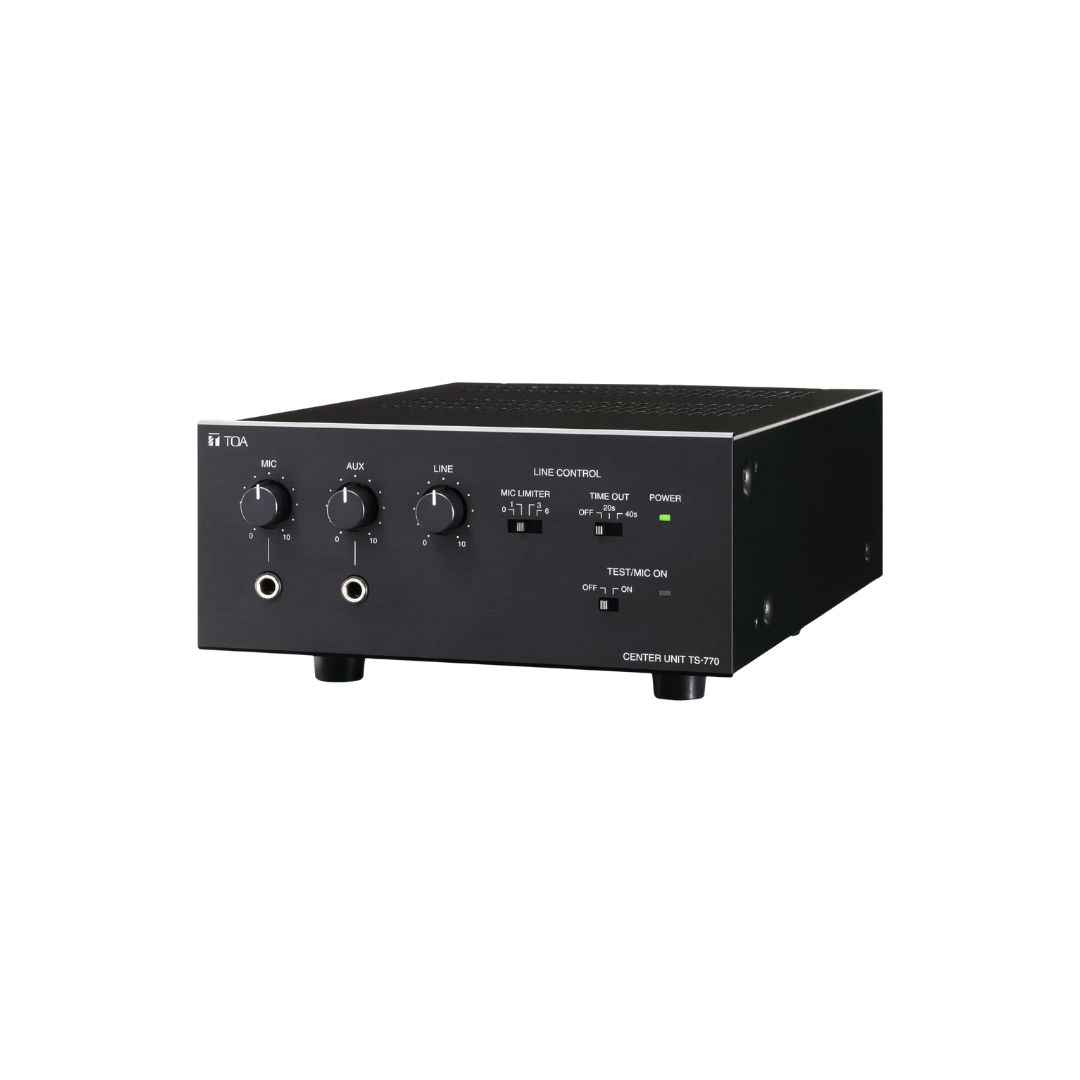

TOA TS-770

$450.00

TS-770

Central unit

The TS-770 is a Central unit for TOA Conference system, of which compact design makes it easy to install and store. Use of its line connection terminals permits connections to the conference units of TS-771, TS-772, and TS-775, making up a conference system. Up to 3 Central units can be connected.

  • Good coverage
  • Up to 70 units can be attached
  • System expandable to 210 units by connection of 3 Central Units
  • Connect a recording device for high-quality audio recording of conferences
  • Test function allows connections to be accurately verified
  • Remote Interface Unit facilitates conference calls
  • Features microphone volume control, AUX volume control and line volume control
  • Speaker restriction function

Specs

TS-770
Power source 230 V AC, 50 / 60 Hz
Power / current consumption Max. 60 W
Finish Aluminium, black
Dimensions 210 x 107.1 x 316 mm (W x H x D)
Weight 4 kg
Input / Output Input: MIC: -60 dBV, 600 Ω, unbalanced, phone jack, AUX: -20 dBV, 10 kΩ, unbalanced, phone jack
Output: Recording: -20 dBV, 10 kΩ, unbalanced, phone jack, pin jack × 2
Connection MIC: -60 dBV, 600 Ω, unbalanced, phone jack

AUX: -20 dBV, 10 kΩ, unbalanced, phone jack

Recording: -20 dBV, 10 kΩ, unbalanced, phone jack, pin jack × 2

Expansion Input and Output Terminal:

Input: -20 dBV, 10 kΩ, pin jack × 2

Output: -20 dBV, 10 kΩ, pin jack × 2

Control: 10 kΩ or more, voltage output, pin jack × 2
