TOA TS-690

$430.00

TS-690 Series Conference System

A simple and compact wired conference system.

System Benefits

  • Plug-and-play system.
  • Up to 24 units can be connected per Central Unit. The use of Booster Unit, TS-690BS, allows for a maximum of 30 units to be connected.
  • Suitable for small-scale corporate boardrooms and meeting rooms.
  • Test function allows connections to be accurately verified.
  • Connect a recording device for high-quality audio recording of conferences.
  • Compact and stable hardware design.

System Example

A typical setup includes a Central Unit (TS-690), Chairman Unit (TS-691L), Delegate Units (TS-692L), and optionally a Booster Unit (TS-690BS).

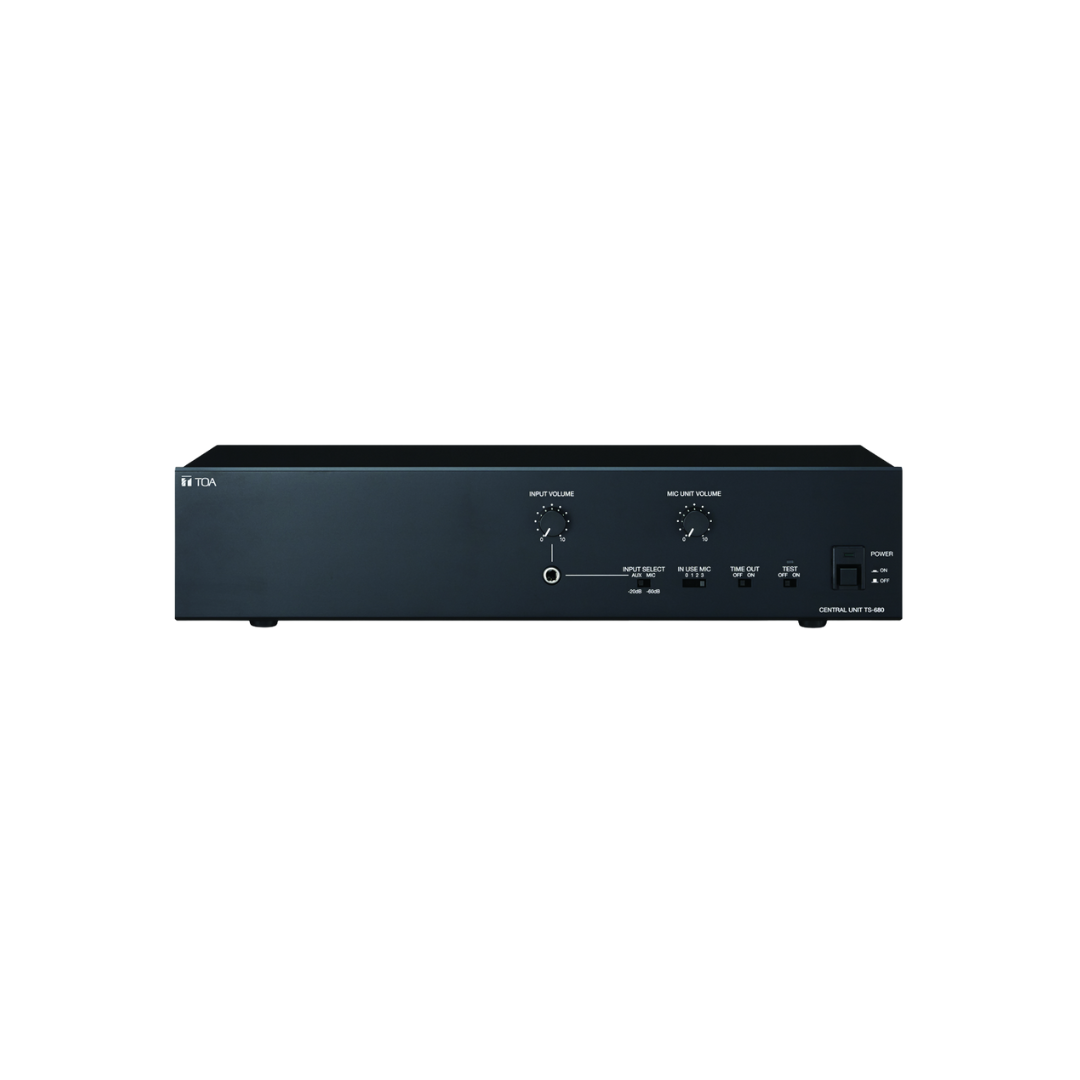

TS-690 Central Unit Specifications

Parameter Specification
Power Source 220-240 V AC, 50/60 Hz
Power Consumption 20 W
Rated Output 36 V DC, 480 mA
Input Mic: -60dB*, 600 Ω, unbalanced, phone jack
AUX: -20 dB*, 10k Ω, unbalanced, phone jack
Recording: -20dB*, 10k Ω, unbalanced, RCA jack
Output Recording: -20dB*, 10k Ω, unbalanced, RCA jack
No. of connectable Chairman/Delegate Unit Max. 24 units
Control Priority speech chime: Operation of TS-691L-AS priority button activates a single-tone chime
Speaker restriction: No. of simultaneous-usable TS-692L-AS can be set to 0 – 3
Automatic Mic-off function: Off, 30 sec. (selectable)
Applicable Unit TS-691L-AS / TS-692L-AS
Finish Panel: Aluminum, black, 30% gloss, paint
Case: Steel plate, black, 30% gloss, paint
Dimensions (W x H x D) 420 x 96.1 x 222.5 mm
Weight 2.7 kg
Accessory Power Cord (2m) x 1
