TOA SC 615

$55.00

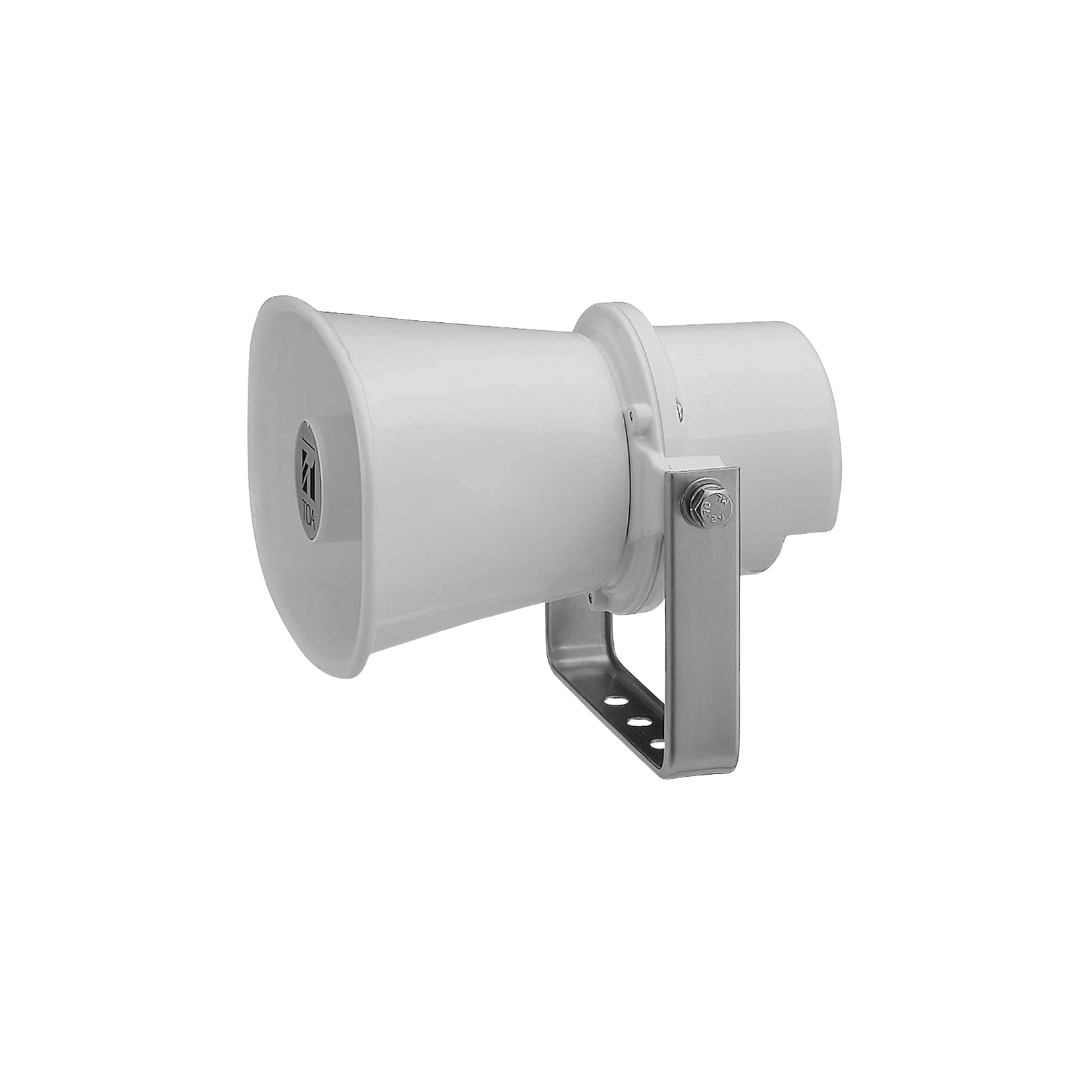

Paging Horn Speaker

SC-615

The SC-615 is a compact, highly intelligible speaker suited to public address announcement applications. Its external speaker component finished with powder coating, and stainless steel bracket and screws ensure the unit’s weatherproof capability.

  • Delivers Clear Audio: High sound pressure level (112 dB) ensures intelligible voice announcements.
  • Weather-Resistant Design: IP65-rated and corrosion-resistant materials support outdoor use in typical conditions.
  • Durable Build: Shock-resistant aluminum horn and stainless steel hardware provide long-term reliability.
  • Compact and Lightweight: Easy to install in various locations, weighing only 1.1 kg.
  • Ideal for Standard Systems: Designed for low-impedance setups, suitable for direct amplifier connections.

Specs

Rated Input: 15 W (Mobile Mount use: 10 W)
Rated Impedance: 8 Ω
Sound Pressure Level: 112 dB (1 W, 1 m at 500 Hz to 2.5 kHz peak level)
Frequency Response: 280 Hz – 12.5 kHz
Polarity: Hot: Black , Com: White
Dust/Water Protection: IP65
Operating Temperature: -20 °C to +55 °C (-4 °F to 131 °F) (must be free from dew condensation)
Finish: Horn flare: Aluminum, off-white, powder coating
Reflector horn and rear cover: ABS resin, off-white
Bracket, screws and bolts: Stainless steel
Speaker cable: Polyvinyl chloride insulated cabtyre cable
(6 mm in diameter, 600 mm in length)
Dimensions: 222 (W) x 179 (H) x 234 (D) mm
Weight: 1.1 kg
Optional Accessories: Swivel bracket: YS-151S (Can be used instead of the supplied bracket.)
