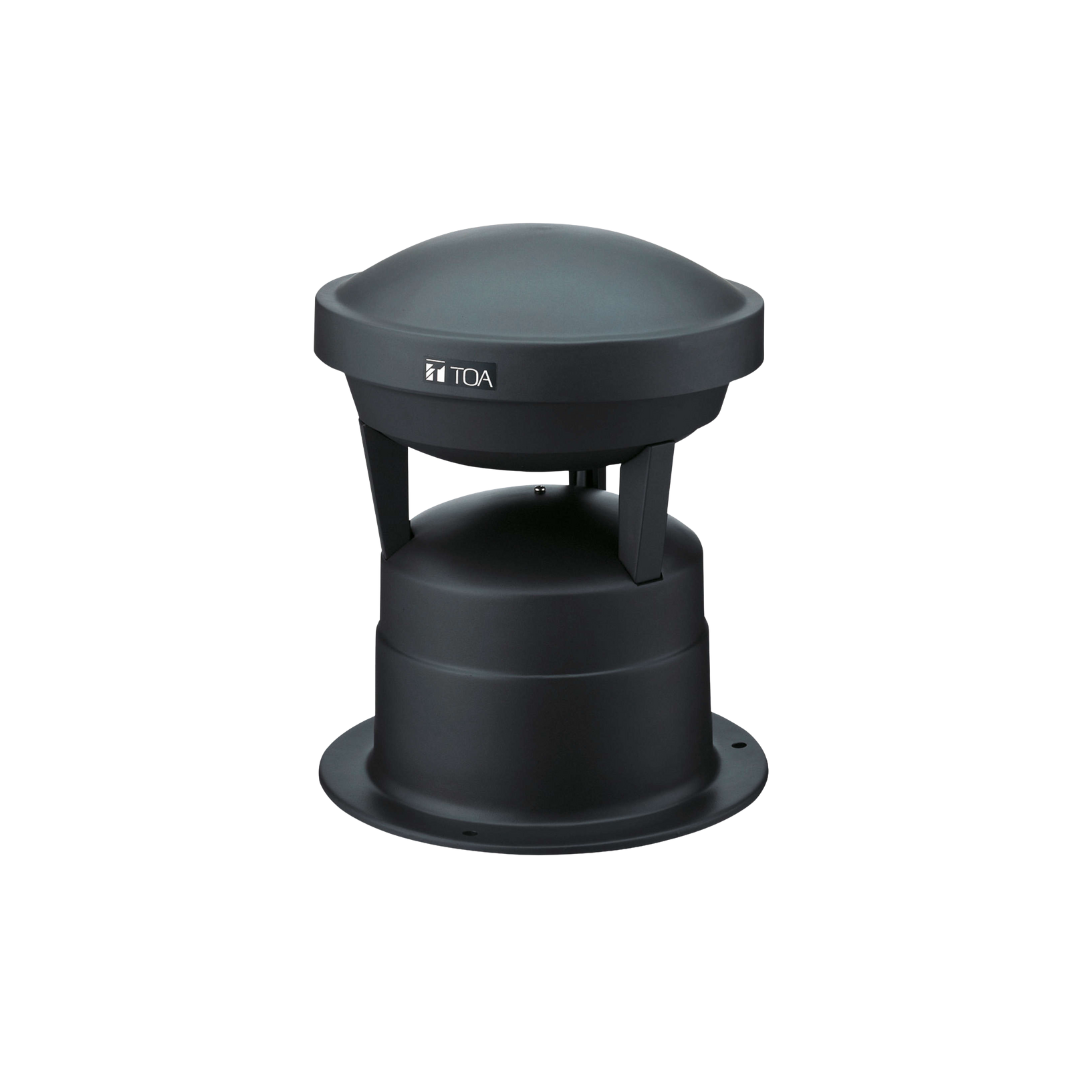

The GS-302 Garden Speaker is a compact speaker that is ideal for applications such as paging and background music broadcasting in various locations such as gardens, theme parks, resort facilities and others. The exterior is formed of corrosion-resistant material that gives it an extended service life
in adverse environments (IPX4 category).
The Garden Speakers inconspicuous design enables it to be easily installed in the middle of garden shrubbery and virtually disappear into the surroundings.
Rated Input: 30 W (100 V line), 15 W (70 V line)
Rated Impedance: 100 V line: 330 Ω (30 W), 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W), 3.3 kΩ (3 W)
70 V line: 330 Ω (15 W), 670 Ω (7.5 W), 1 kΩ (5 W), 2 kΩ (2.5 W), 3.3 kΩ (1.5 W)
Sensitivity: 87 dB (1 W, 1 m)
Frequency Response: 100 Hz – 8 kHz
Speaker Component: 12 cm splash-proof cone-type
Input Terminal: Push-in terminal
Cable Requirements: Solid copper wire: Ø0.8 – Ø1.6 mm, Stranded cooper wire: 0.75 – 1.25 mm²
Operating Temperature: -10 °C to +50 °C (14 °F to 122 °F)
Finish: Top cover and base: FRP resin, dark gray, semi-gloss, paint
Speaker panel: ABS resin, dark gray, semi-gloss, paint
Legs: Aluminum, dark gray, semi-gloss, paint
Dimensions: Ø270 x 335 (H) mm
Included Accessories: TOA label …2
