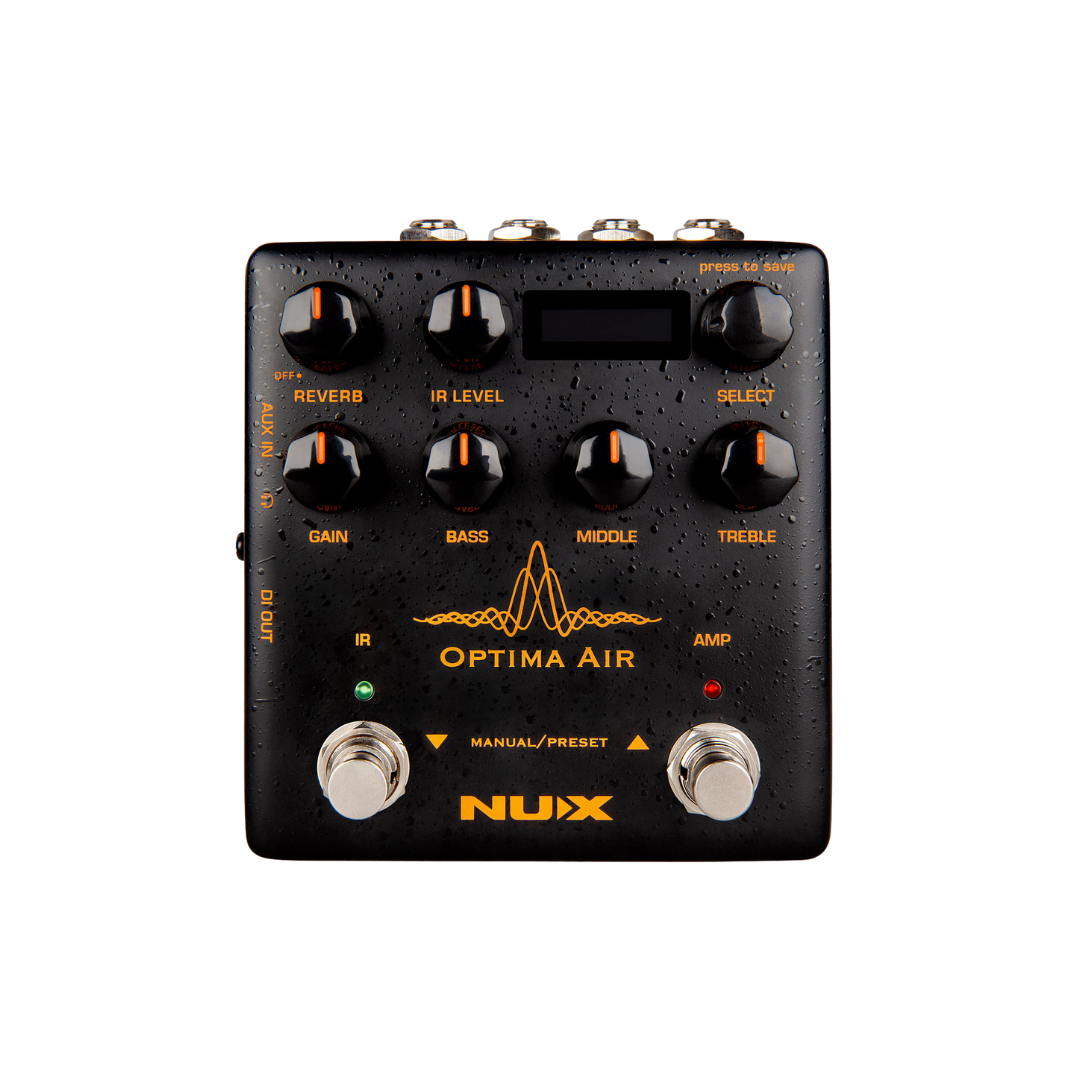

Reverb: One Knob Reverb effect control. It adjusts the Dry/Wet and Decay parameters. Or you can turn it OFF by tweaking to 0
IR Level: Adjusts the simulated signal (Impulse Response file) LEVEL
Select (Push to Save): In manual mode, you can choose the IR file. And you can save your customized preset by pushing the knob
Gain: Adjusts the signal input Gain level
3-Band EQ:
– Bass: Adjusts the low frequency level
– Middle: Adjusts the middle frequency level
– Treble: Adjusts the high frequency level
IR Footswitch:
– Manual Mode: Engage/disengage the selected IR file. Acoustic guitar simulation ON/OFF
– Preset Mode: Bank DOWN
Also, if you are editing a preset, you can push the IR footswitch to exit without saving
AMP Footswitch:
– Manual Mode: Activates the pre-amp section. When you engage the AMP, you can use the Gain and the 3-band EQ
– Preset Mode: Bank UP
Also, If you are editing a preset, while you changing the preset name you can push the AMP footswitch and move the cursor to the next selection area to choose a letter, number or symbol.
Specs
– 24-bit, 48-kHz Sampling Quality.
– Acoustic Guitar Impulse Response and Pre-Amp controls.
– 15 built-in acoustic guitar profiles with IR level control.
– 9 Preset Slots.
– Reverb effect.
– Gain, Bass, Middle and Treble controls.

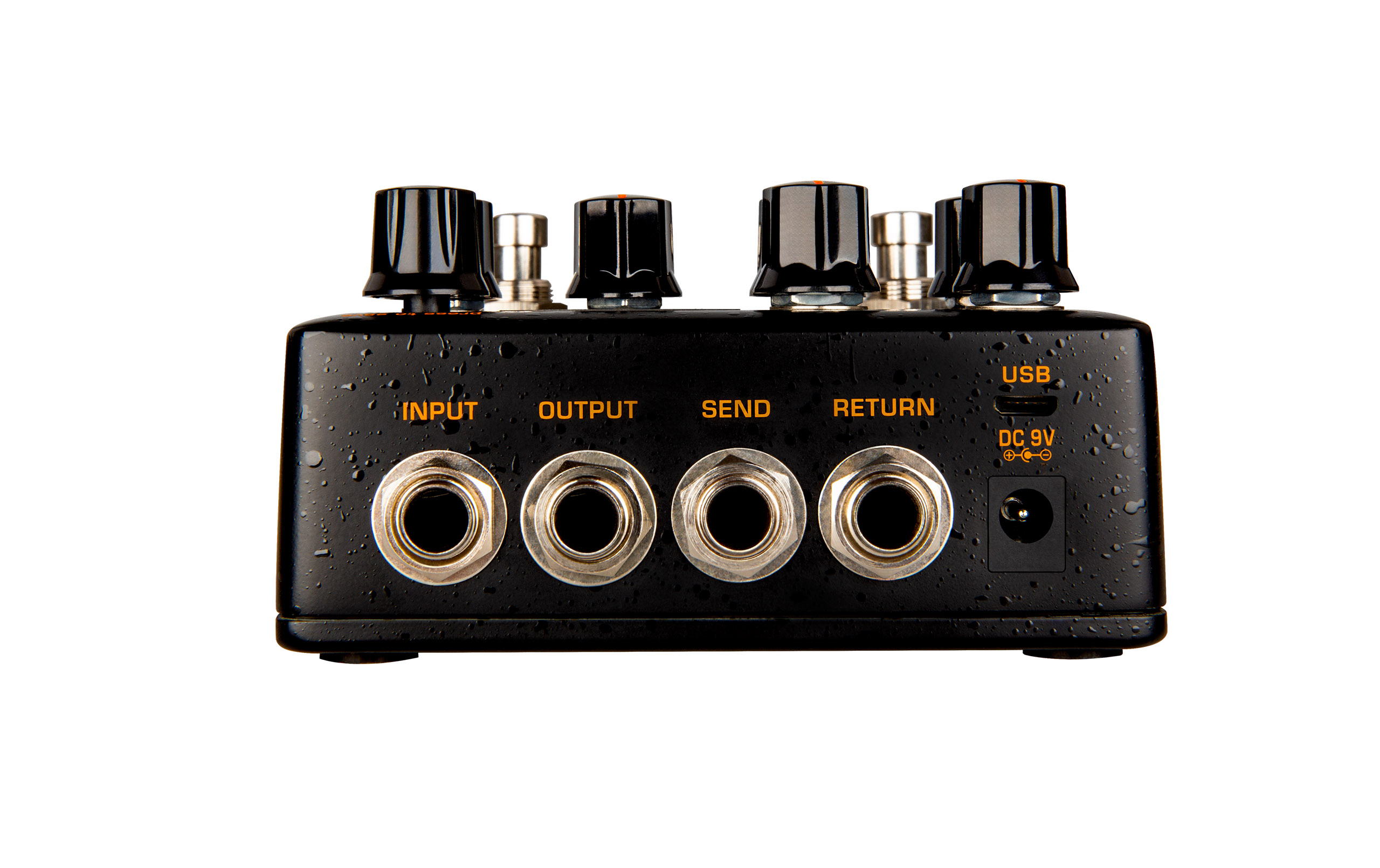

– 6.35mm (1/4-inch) Send/Return, effects loop.
– 3.5mm (1/8-inch) Auxiliary input.
– 3.5mm (1/8-inch) Headphones input.
– XLR DI Out.
– Micro B USB Port for USB Audio Stream and Edit Software.
