$196.00

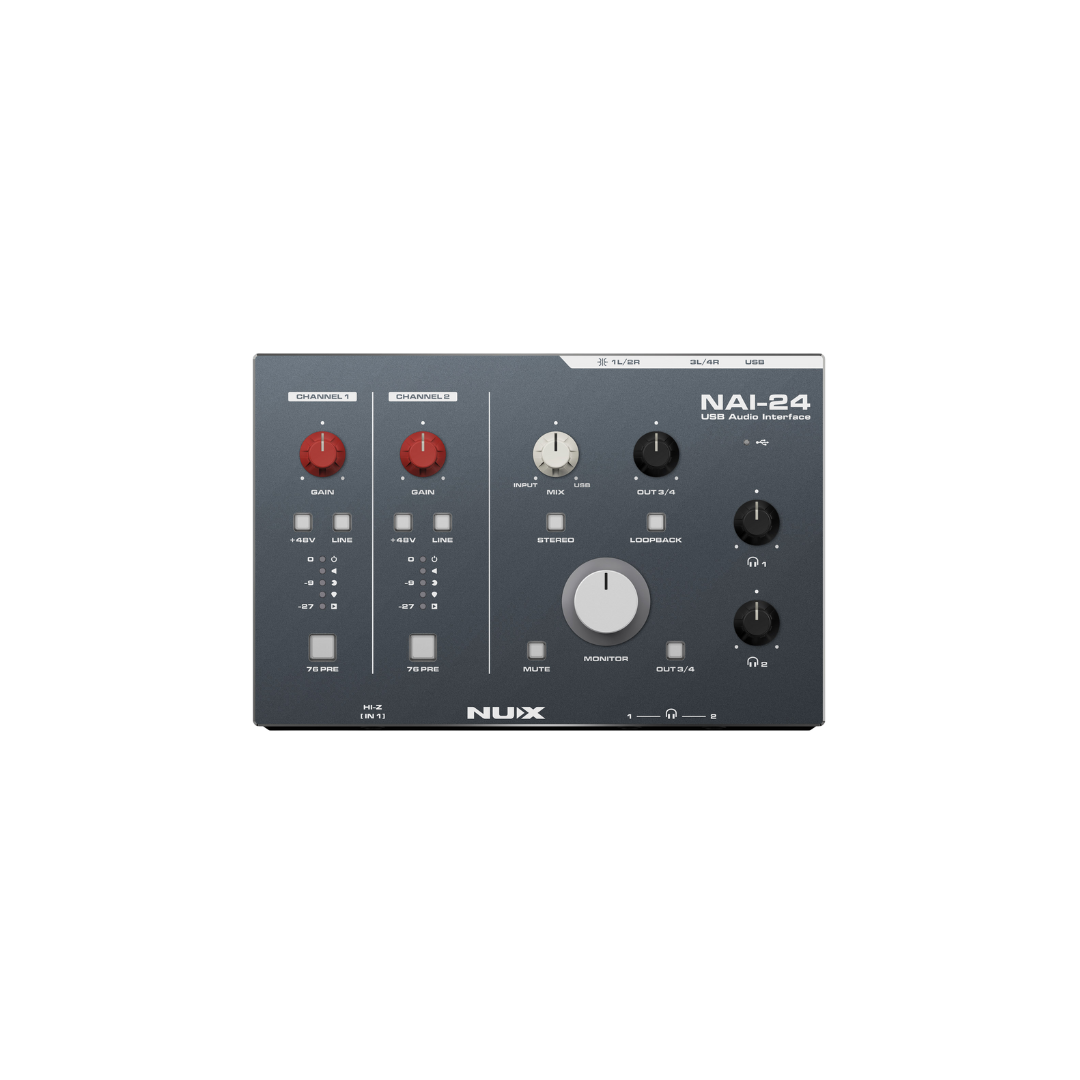

– 2-in/4-out desktop USB audio interface with support for up to 32-bit/192kHz sample rate.
– Pure Class-A discrete transistor preamplifier delivering ultra-high dynamic range and resolution.
– FET type 76PRE compression circuit with multiple preset modes for various applications.
– Studio-grade audio transformer on Main Output 1L/2R channels for warm, professional sound characteristics.
– Additional 3L/4R output channels for auxiliary output, enhancing versatility in different setups.
– Two high-performance headphone amplifiers with routable channels for customized monitoring.
– USB powered, no external power supply required.
– 48V phantom power with independent on/off control for each channel.
– Ultra-low latency direct monitoring channels for real-time performance.
– Provides stable and reliable signal transmission using high-quality XLR connectors and 6.35mm connectors.
MIC IN
– Dynamic Range: 114dB(A-weighted)
– Frequency Response: 20-20000Hz ± 0.1dB
– THD+N: 0.002%@-1dBFS(at minimum gain)
– EIN: -126dB(A-weighted)
– Maximum Input Level: 6dBu(at minimum gain)
– Gain Range: 5.4-63dB
– Input lmpedance: 2.4kΩ
LINE IN
– Dynamic Range: 114dB(A-weighted)
– Frequency Response: 20-20000Hz ± 0.12dB
– THD+N：0.003%@-1dBFS (at minimum gain)
– Maximum Input Level: 26dBu (at minimum gain)
– Gain Range: -12.6-45dB
– Input lmpedance: 21kΩ
HI-Z
– Nominal input Level: -10dBu
– Input lmpedance: 1MΩ1
L/2R
– Dynamic Range: 112 dB(Balanced, 600 Ω.A-weighted)
– Frequency Response: 20-20000Hz ± 0.5dB
– Maximum Output Level: +12.4dBu(Balanced,0dBFS)
– THD+N: 0.0015%@-1dBFS
– Output lmpedance: 580Ω
3L/4R
– Dynamic Range: 112dB(Balanced, 200kΩ, A-weighted)
– Frequency Response: 20-20000Hz ± 0.1dB
– THD+N: 0.001%@-1dBFS
– Maximum OutputLevel: +18.4dBu(Balanced, 0dBFS)
– Output lmpedance: 240Ω
PHONES OUTPUT
– Dynamic Range: 104dB (A-weighted)
– Frequency Response: 20-20000Hz ± 0.25dB
– THD+N: 0.005%@-5dBFS
– Power Output: 30mW@32Ω
– Dimensions: 194(L)x128(W)x67(H)mm
– Weight: 722g
