NUX Edge Delay NDD-3

$55.00

Edge Delay

3 Delay Types with Smart Tap

The Dotted Eighth is the edge of this delay’s beauty.

The Edge Delay Provides You With 3 Unique Delays, Each Including Acurate Control Over Its Sonic Character and Feel. Clear, Studio-Quality Digital Delays. Saturated and Fluctuating Sounds of Tape Delay Machines. Warm and Fuzzy Analog Style Repeats.

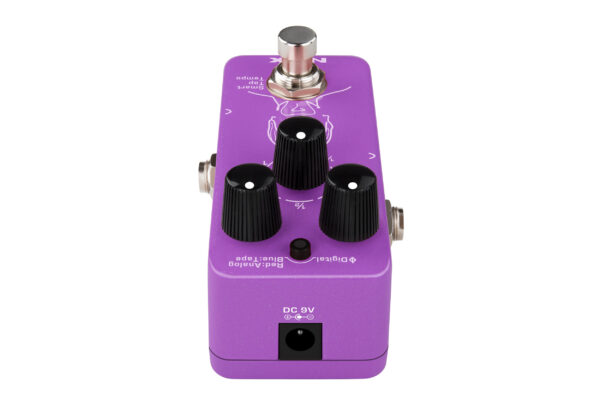

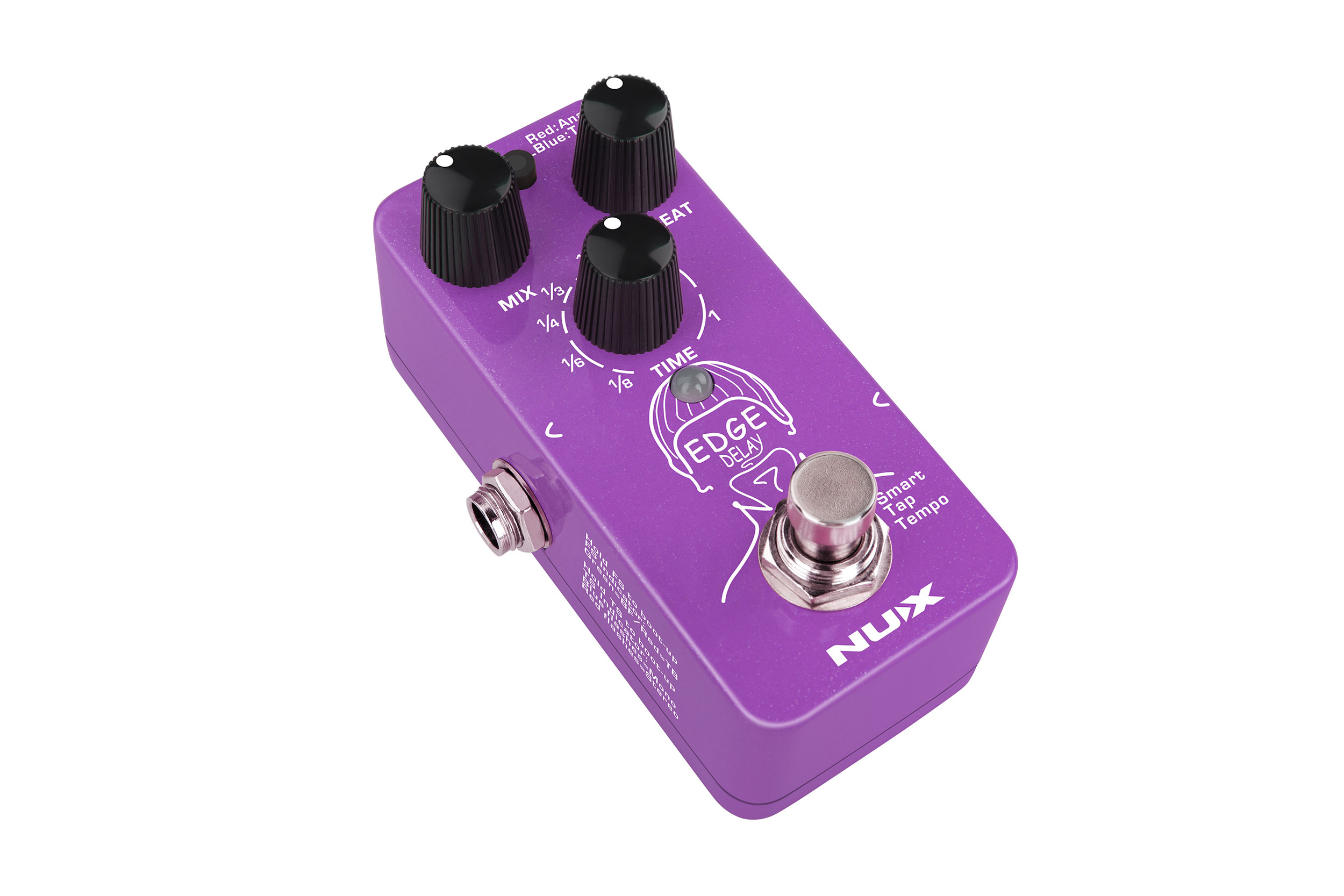

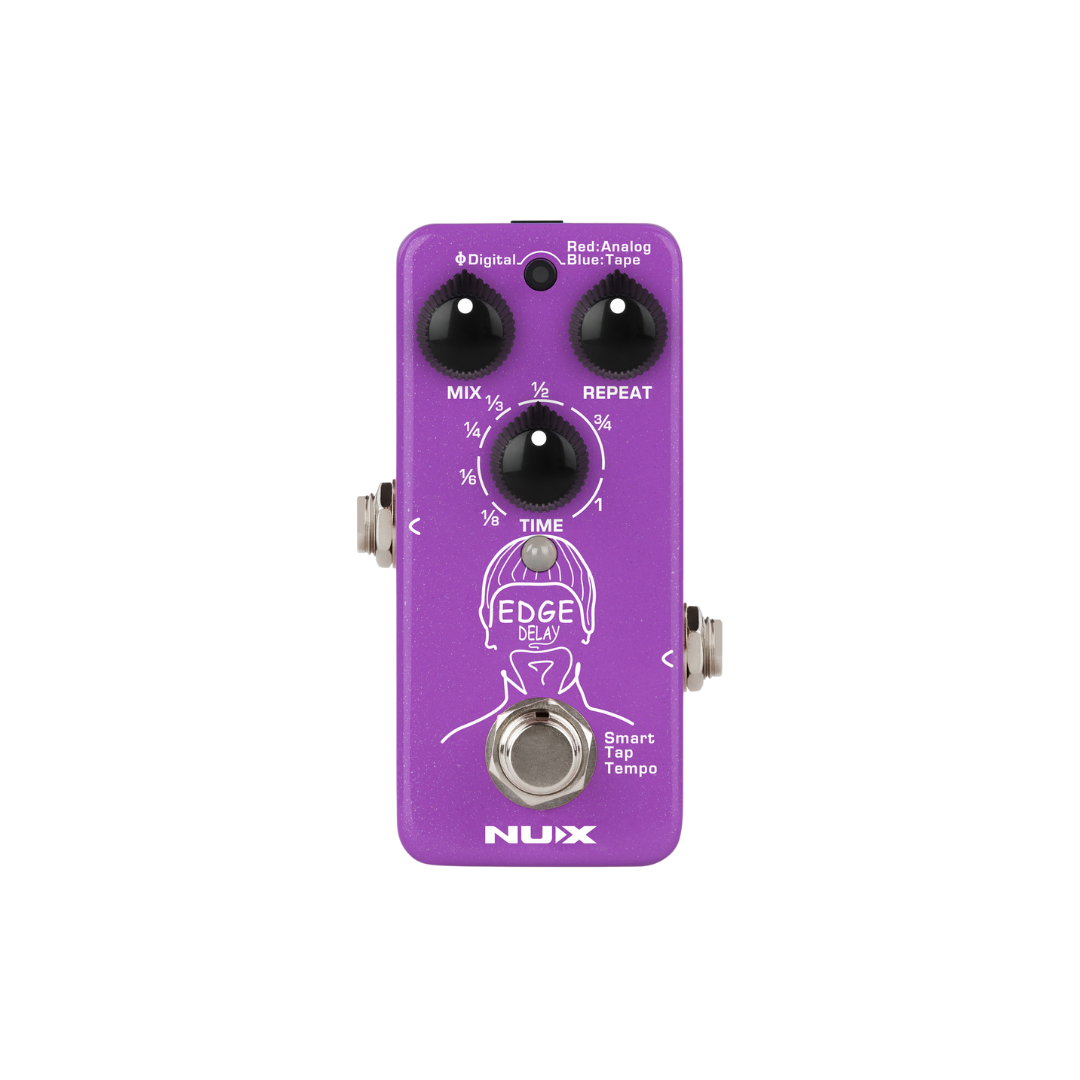

The Edge delay (NDD-3) is a mini delay pedal with 3 different delay types including ΦPhi Digital Delay, Analog Delay, and Tape Echo. You can switch delay types by pressing and holding the footswitch.

Highlight

– 3 delay types in a mini enclosure.

– ΦPhi Digital Delay: Musical digital delay with golden ratio 2nd repeat head.

– Analog Delay: BBD Warm sound with natural treble decay.

– Tape Echo: High-frequency saturation and low-end decay.

– Sub-division with Smart Tap Tempo. (Maximum: 1500ms)

– True-bypass or Buffer-bypass (Trails).

– Supports Stereo I/O with TRS Cable.

– Low power consumption. (less than 100mA)

– Analog dry signal for low noise and zero latency.

Specs

– Input Impedance: 1MΩ

– Output Impedance: 10kΩ

– Dynamic Range: 103dB

– DSP Processing: 48KHz/32-bit

– A/D D/A Sampling Rate: 48KHz/24-bit

– Power: 9V DC (Negative tip, Optional ACD-006A adapter)

– Current Draw: less than 100mA

– Dimensions: 194(L)x51(W)x53(H)mm

– Weight: 175g
