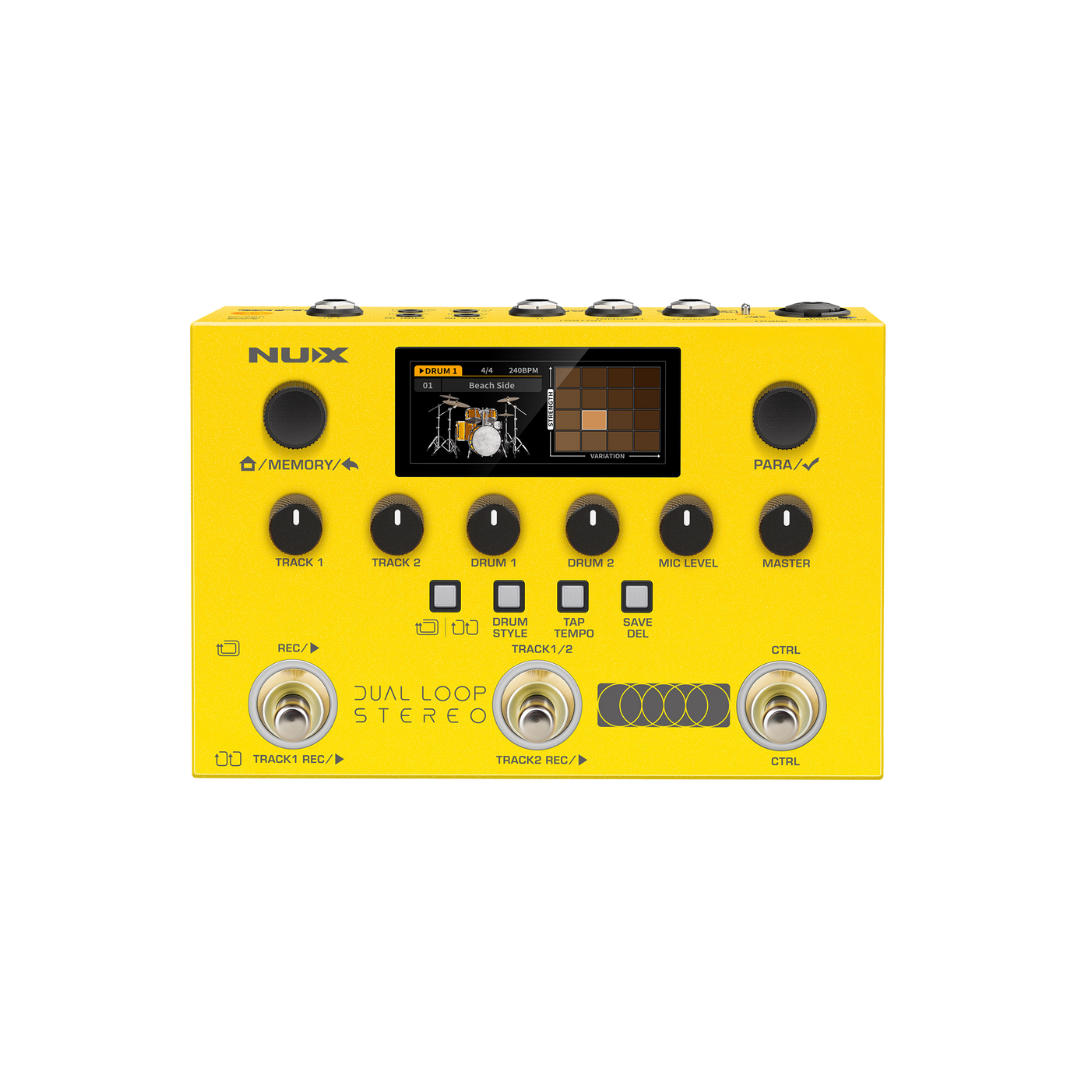

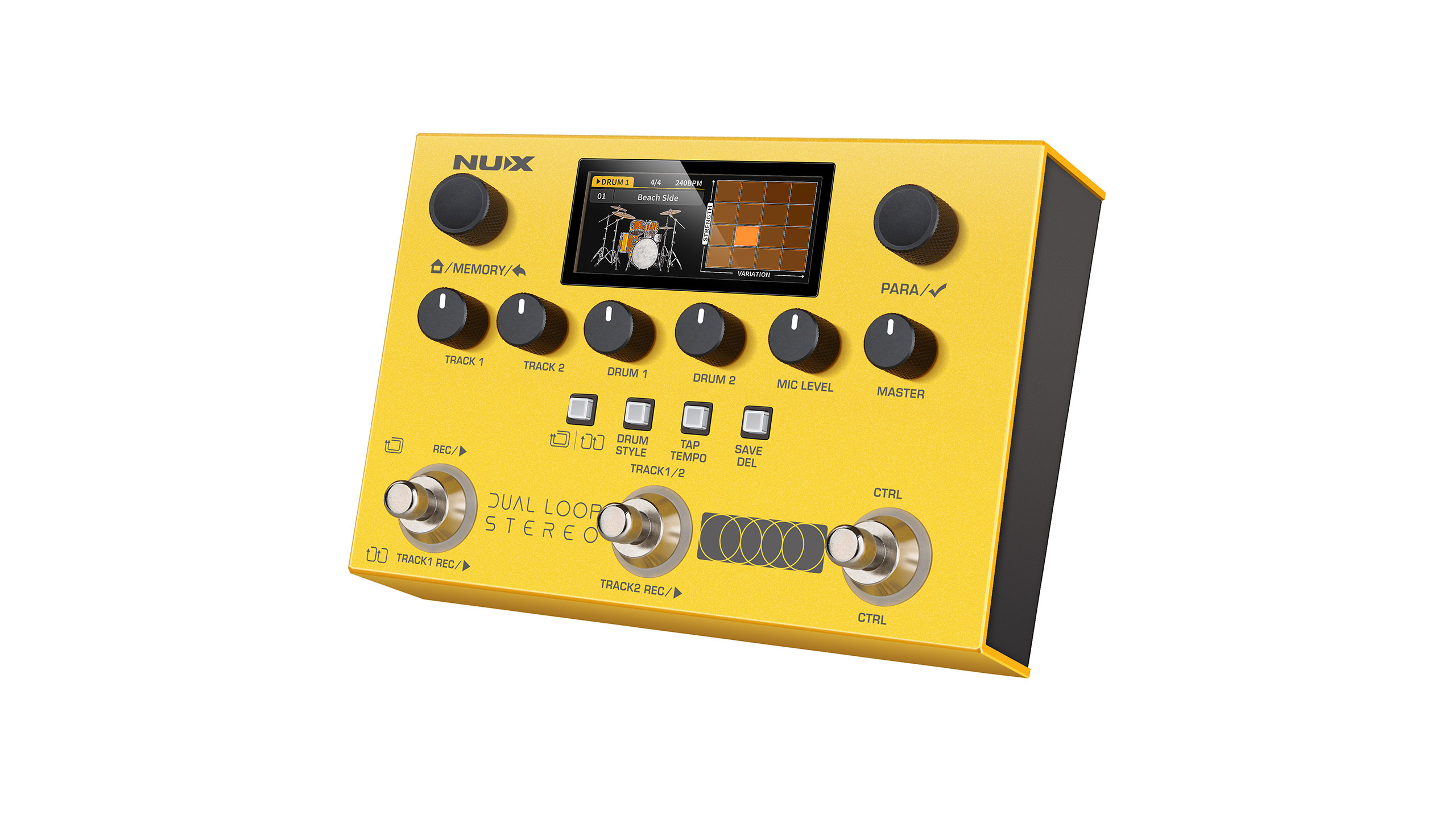

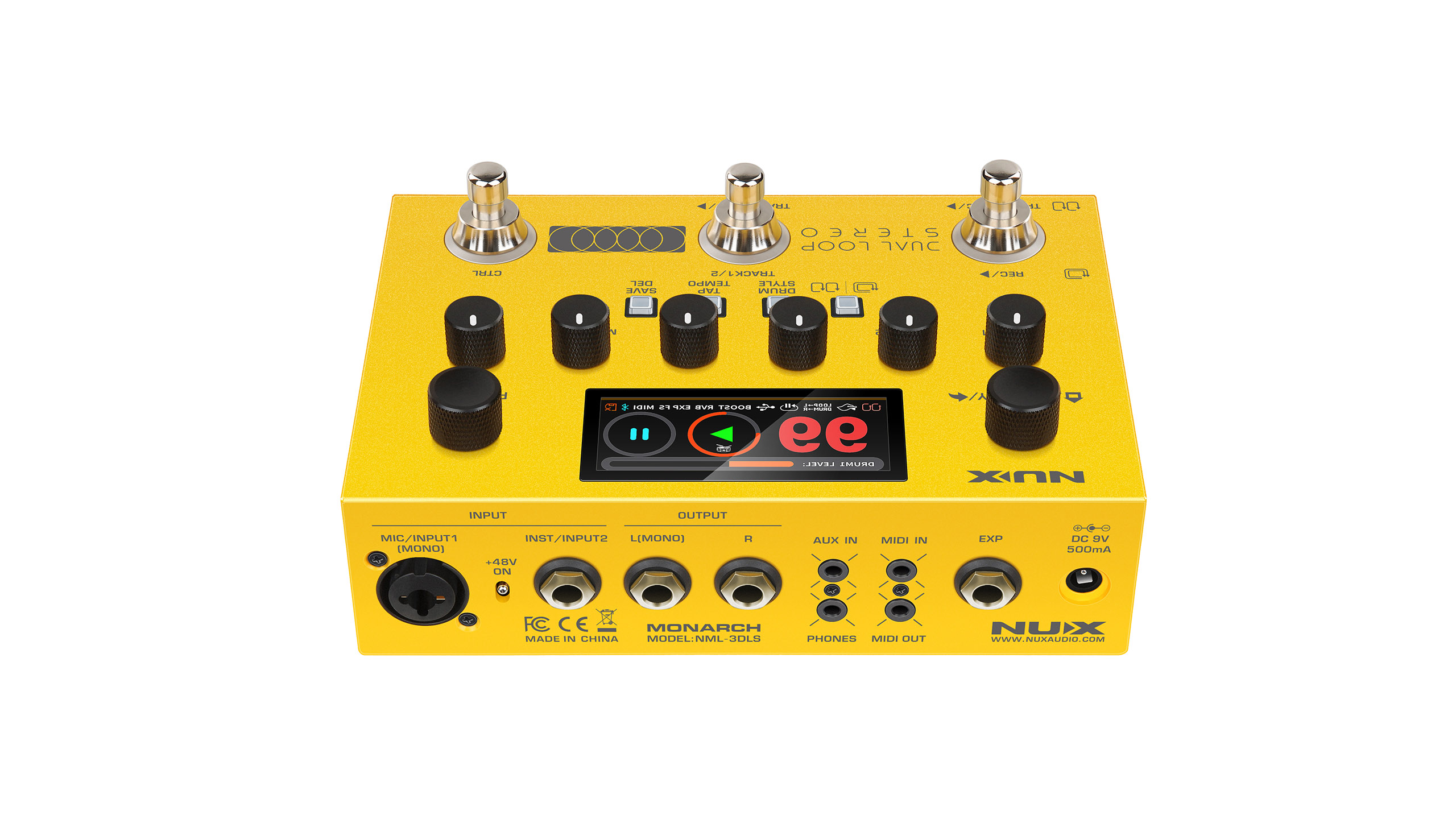

NUX Dual Loop Stereo

Highlight

– Dual-Track looper & Dual drum kit
– 99 phrase memories
– 90 minutes of stereo recording time on a single track
– 26 hours of stereo recording time in total
– 42 rhythm presets with 672 rhythm variations
– 4 effects including Octave, Booster, Amp Simulation, Reverb (only for rhythm)
– Sampling Rate: 44.1 kHz
– AD/DA Conversion: 32 bits
– Processing: 32-bit floating point
– Data Format: WAV (44.1 kHz, 32-bit float, stereo)
– Customized GIF Boot-up display (960 x 376 pixels, Max size 2 M)
– 2.86” high-definition colored LCD display (960 x 376 pixels)
– INPUT: Mono/stereo 1/4 inch inputs including XLR mic input with phantom power
– OUTPUT: Mono/stereo 1/4 inch outputs, headphones
– Support for expanded control via external footswitches, an expression pedal, or MIDI
– Full MIDI I/O provided with space-saving mini TRS jacks
– USB audio with Loop-back

Specs

– Sampling Frequency: 44.1 kHz
– AD/DA Conversion: 32 bits
– Processing: 32-bit floating point
– Recording/Playback:

Number of Tracks: 2
Data Format: WAV (44.1 kHz, 32-bit float, stereo)
Approx. 1.5 hours (1 track), Approx. 26 hours (total of all memories)
Rhythm Type: 42 groups, 672 patterns
Effect: Octave, Booster, Amp Simulation, Reverb (for drum or mic/instrument of input 1)
Memory: 99

– Maximum Input Level:
MIC IN: +6 dBu (with minimum mic gain)
INPUT 1/2: +8 dBu
AUX IN L/R: +8 dBu
Mic Input Gain Range: 5.4 dB – 63 dB

– Input Impedance:
MIC IN: 2.4 kΩ
INPUT 1/2: 1 MΩ
AUX IN L/R: 1 MΩ

– Output Impedance:
OUTPUT L/R: 1 kΩ
PHONES L/R: 3.3 Ω
Bypass: Buffered bypass
Display: 2.86″ Colored LCD display, 960 x 376 pixels

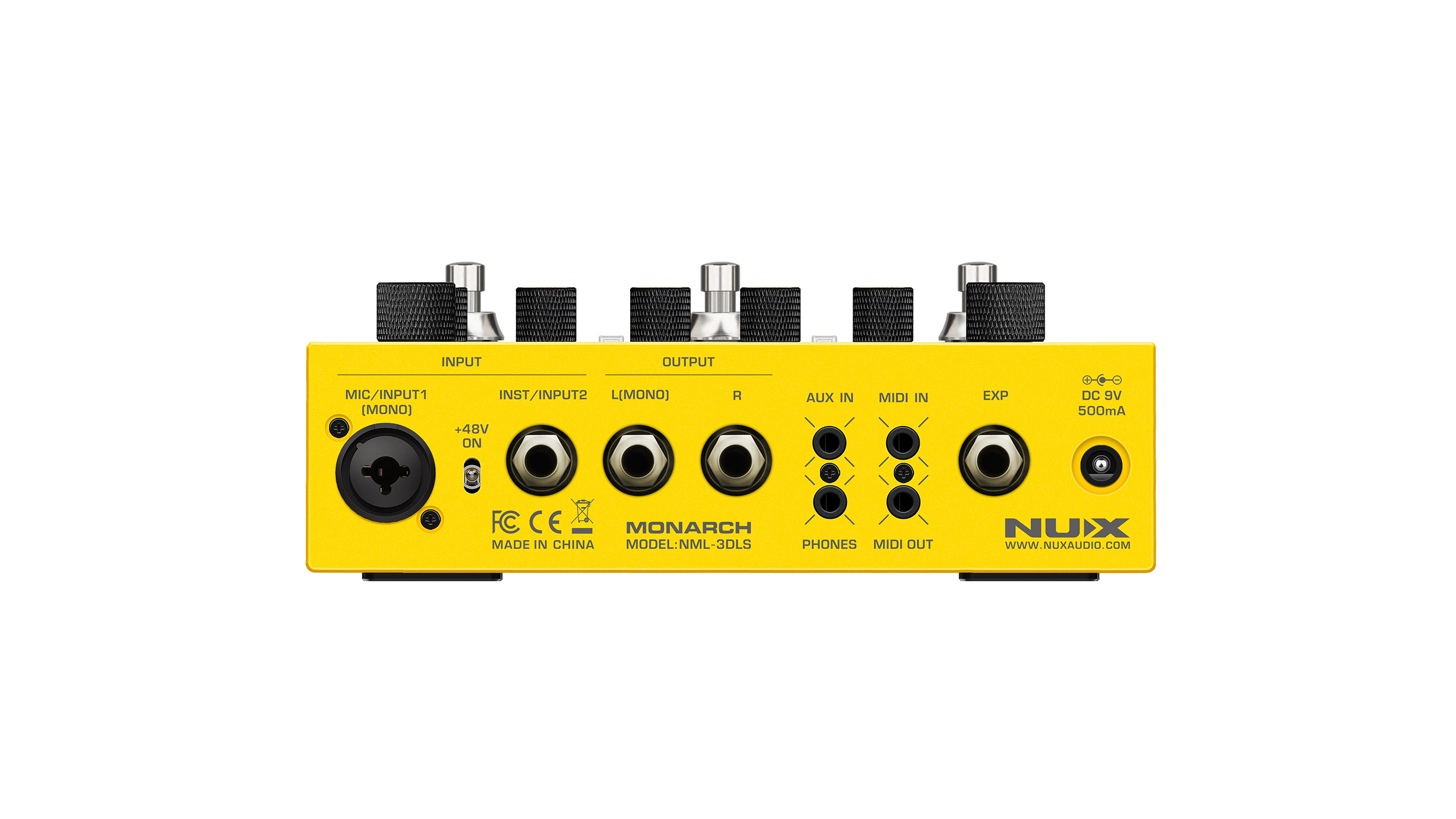

– Connectors:
MIC/INPUT 1: Combined XLR & 1/4 – inch type jack (balanced, phantom power: DC 48 V)
INST/INPUT 2: 1/4 – inch phone type jack
OUTPUT L (MONO): 1/4 – inch phone type jack
OUTPUT R: 1/4-inch phone type jack
AUX IN: 1/8-inch stereo miniature type jack
PHONES: 1/8-inch stereo miniature type jack
MIDl (IN, OUT) jacks: 1/8-inch stereo miniature type jacks
EXP jack: 1/4-inch TRS phone type
DC IN jack
USB port: USB-C type

– Power Supply: ACD-006 (9 V 500 mA)

– Current Draw:
Less than 170 mA (Phantom power off)
Less than 270 mA (Phantom power on)

– Dimensions: 183 (L) x 130 (W) x 65.3 (H) mm
– Weight: 765 g
