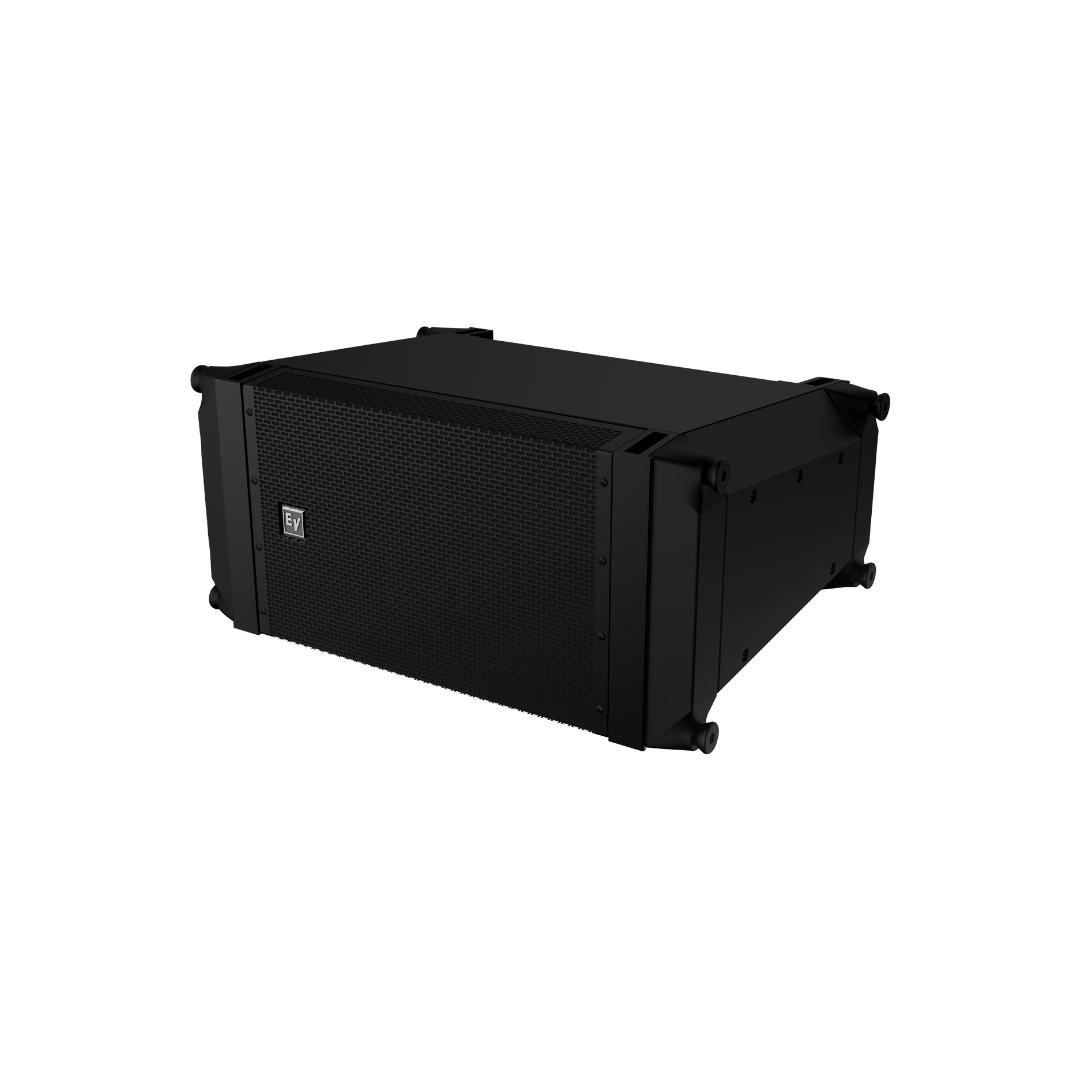

Electro-Voice X2-212/120

$5,700.00

High‑performance compact 12″ vertical line array loudspeaker system

  • Integrated Rigging System – (IRS)
  • Mid-Band Hydra Line Source Technology – (MBH)
  • Pin Diffraction Hydra – (PDH)
  • Proprietary Electro-Voice FIR-Drive settings
  • Compatible with all grids and dollies currently available for 90-degree versions
  • New IRIS-Net speaker settings, EASE files, EDS documents, and LAPS 3.3 are available

The high-performance X2-212/120 is two-way vertical line-array loudspeaker element providing 120-degree horizontal coverage, expanding the flexibility of the X-Line Advance family.

It is ideal for use as a wide-coverage system for live sound using all 120-degree elements, or as the near-field element in a combined line array positioned below 90-degree elements, bi-amplified only.

The X-Line Advance family is designed for a wide variety of applications where wide bandwidth, vertical and horizontal directivity control, and high efficiency are required in a compact, cost-effective package.

Specs

Freq. Response (-3 dB) 52 Hz – 19 kHz1
Horizontal Coverage 120°
Vertical Coverage Array dependent
Recommended High-Pass
Freq.
50 Hz
Max Calculated SPL 145 db Peak2
Configuration Bi-amp
LF Transducer DVN3125, 12-in (305 mm) driver
LF Axial Sensitivity 101 db (1 W/1 m)4
LF Power Handling 500 W Continuous, 2000 W Peak
LF Impedance 8 Ω (nominal), 6.1 Ω (min)
HF Transducer 2 x ND6A, 3-in (76.2 mm)
diaphragm compression driver
HF Axial Sensitivity 111 db (1 W/1 m)4
HF Power Handling 150 W Continuous, 600 W Peak3
HF Impedance 8 Ω (nominal), 6.0 Ω (min)
Connectors Dual NL8 type connector
Enclosure 13-ply weather resistant plywood with
EVCoat
Grille 16 GA powder coated galvanneal
Suspension IRS — Integrated Rigging System
Dimensions (H x W x D) 13.5 in x 28.77 in x 12.04 in
(342.9 mm x 730.8 mm x 534.4
mm)
Net Weight 93 lb (42.2 kg)
Shipping Weight 107 lb (48.5 kg)
