CS-310 Delegates

Contact for more information.

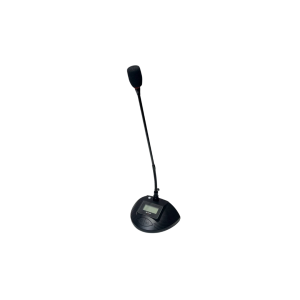

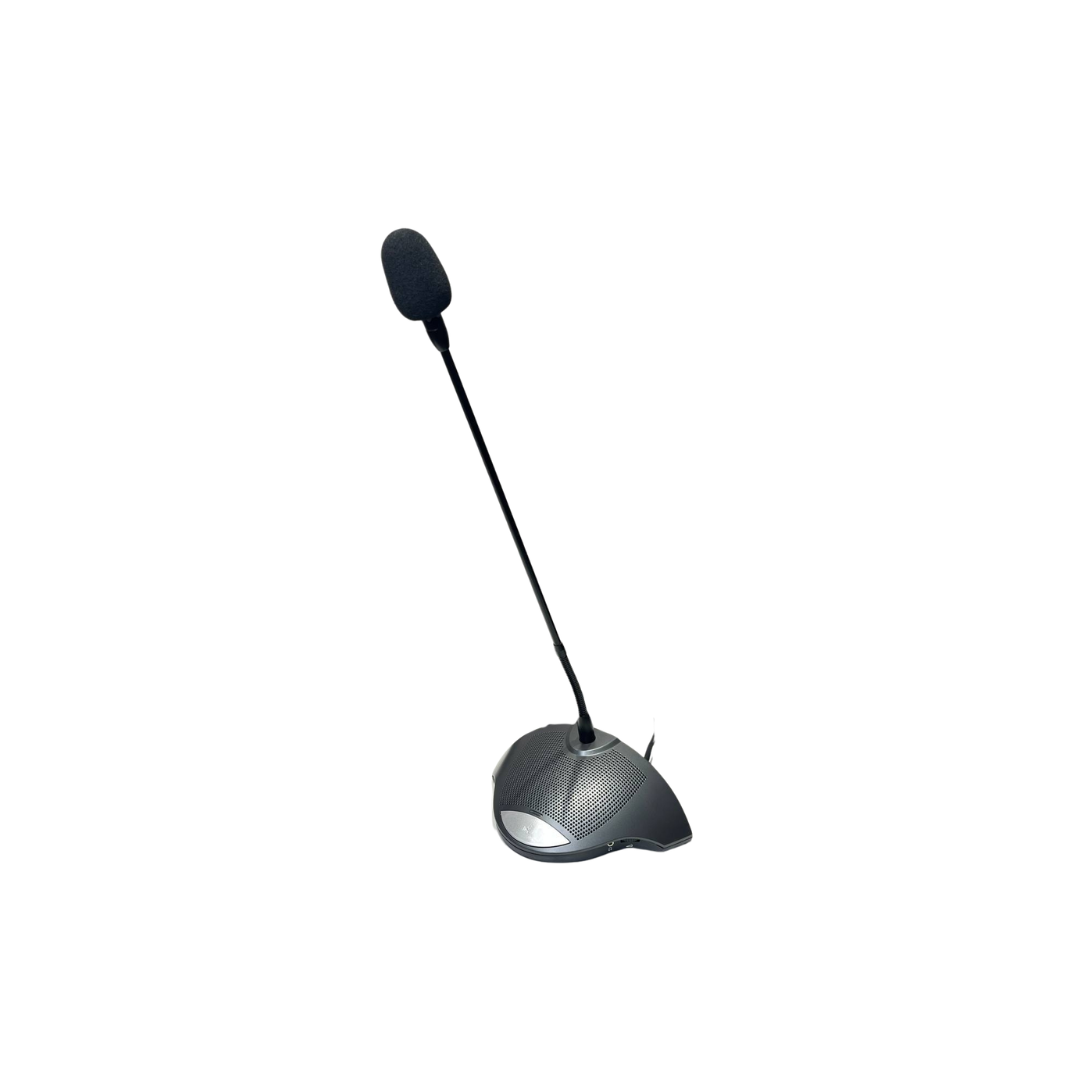

The CS-310 Delegate Microphone is a professional chairman conference microphone unit designed to work with the CS-310 series digital conference system. It serves as the primary control unit for a meeting’s moderator, offering expanded features compared to the CS-115 or CS-100 series.
Key Features
  • Integrated Monitoring: Unlike entry-level units, the CS-310C often features a high-definition OLED screen that displays the microphone status, current conference mode, and system messages in real-time.
  • Priority Controls: Includes a dedicated PRIORITY button that allows the chairman to override all active delegate microphones, effectively muting them to take control of the discussion.
  • Built-in Speaker: Equipped with a high-fidelity internal speaker that allows the chairman to hear the discussion clearly without needing external monitors.
  • Advanced Pickup: Uses a cardioid condenser microphone (often the EG-series gooseneck) to ensure clear, directional voice pickup while minimizing background noise and feedback.
  • Privacy Options: Includes a 3.5mm headphone jack for private listening and a volume control for the internal speaker or headset.
Technical Specifications
Feature Details
Microphone Type Cardioid Condenser (Directional)
Frequency Response 50Hz – 18kHz
S/N Ratio >100dBA (A-weighted)
Power Supply 24V DC (powered via the central controller)
Interface Anti-off aviation plug or RJ45 (depending on specific model variant)
Gooseneck Length Standard 480mm (variable based on EG-series choice)
Operational Modes
The CS-310C supports several sophisticated modes through the central controller:
  • VOX (Voice Activated): Automatically turns on the mic when the chairman speaks.
  • Approval Mode: Requires the chairman to manually approve requests from delegates who wish to speak.
  • Camera Tracking: Integrates with video systems to automatically point cameras at the chairman when their unit is active.
