Biamp TCM-XEX White

$1,515.00

Parlé TCM-XEX White

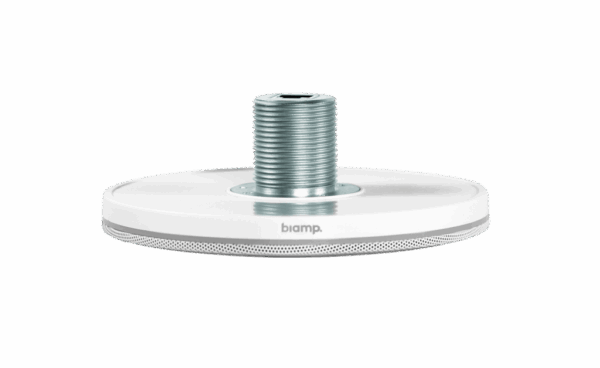

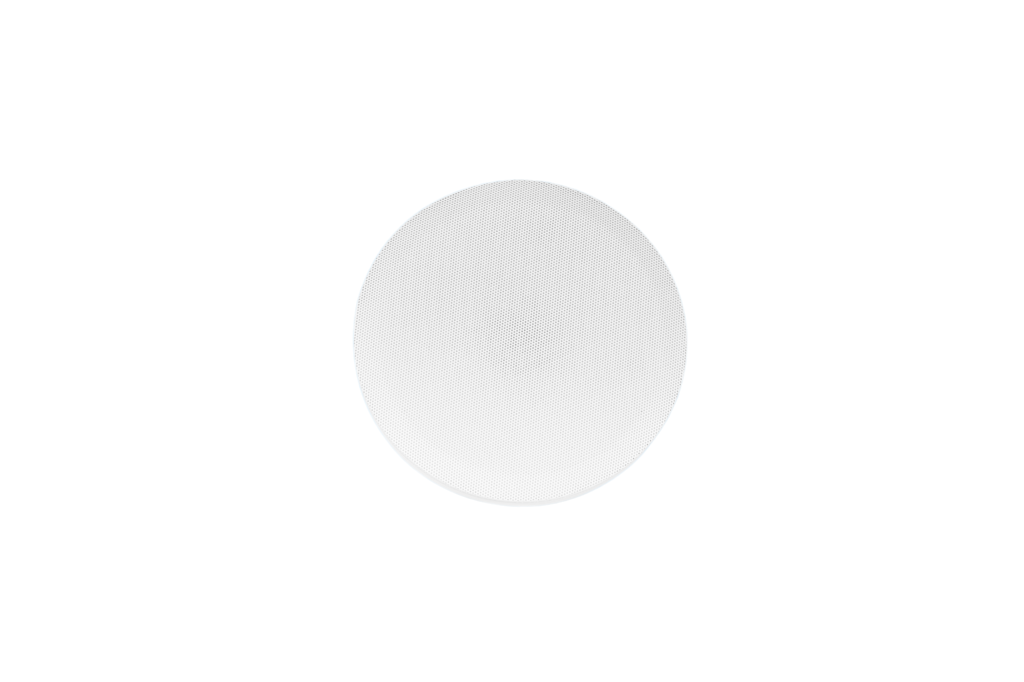

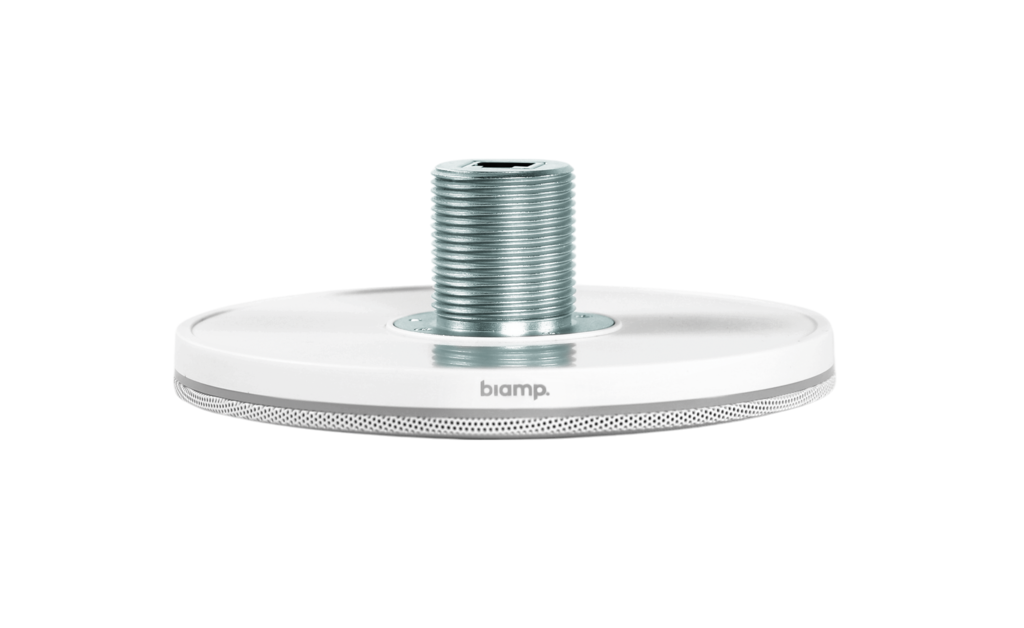

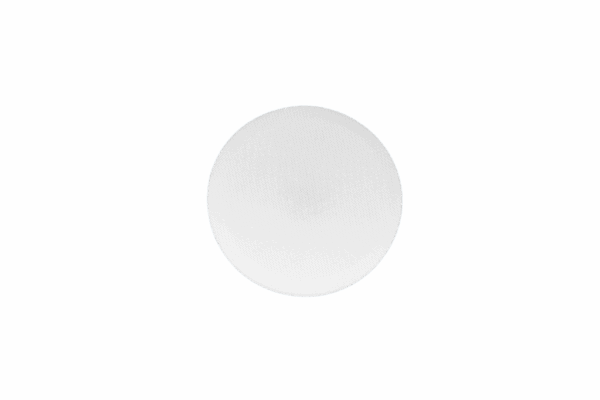

Expansion AVB Beamtracking, surface-mount ceiling microphone, white.

Key Features

  • Measures 5.90 inches (150mm) in diameter
  • Mounts directly to the ceiling to virtually disappear in room
  • Beamtracking technology actively tracks and intelligently mixes conversations
  • Four 90-degree zones for full 360-degree room coverage
  • Beamtracking technology works out-of-box without any lobe aiming or room mapping
  • Uses only one channel of AEC per microphone
  • Single cable connection via category cable
  • LED mute status indicator
  • Available in either black or white
  • Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
  • CE marked, UL listed, and RoHS compliant
  • Compliant with the US Trade Agreement Act (TAA)

Description

The Parlé TCM-XEX is an expansion AVB low-profile ceiling microphone for use in Tesira systems. Each microphone includes Beamtracking technology with four 90-degree zones, providing full 360-degree coverage of the meeting space.

The Parlé TCM-XEX is intended to be used as a second microphone in conjunction with the TCM-X or TCM-XA; it cannot operate as a standalone device.

Conference Room Designer
Classroom Designer

The Parlé TCM-XEX Black & Parlé TCM-XEX White comply with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.

Specs

GENERAL
Height (excluding ceiling mount): 0.7 inches (17 mm)
Diameter 5.9 inches (150 mm)
Weight 0.7 lbs (340 g)
ENVIRONMENTAL
Ambient Operating Temperature Range 32 – 104° F (0 – 40° C)
Humidity 0-95% relative humidity (non-condensing)
Altitude 0-10,000 ft (0-3000m) MSL
POWER
Power Custom/Proprietary
Max Distance Between Devices:
33 feet (10 meters) between TCM-XEX and DSP host device
CONTROLS & INDICATORS
Front Panel Indicator(s) Mute Indicator (Green/Red LED) around parameter
AUDIO
Audio Polar Pattern: Active Beamformed
SNR (at 1kHz, 94dBSPL A-Weighted): > 76dB
Digital Interface: Custom/Proprietary
Connector: RJ-45 (cable length 6.6 feet [2 meters])
Microphone Microphone Technology: 16-Element Digital Array
Frequency Response (150 Hz – 16 kHz): ± 3dB
Dynamic Range Dynamic Range (THD+N < 1%): 92dB, A-Weighted
SPL Maximum SPL (at < 1% THD): 109dB
CERTIFIED SOLUTIONS
TAA Compliant TAA Compliant
COMPLIANCE
Certifications FCC Part 15B (USA)
CE marked (Europe)
UL and C-UL listed (USA and Canada)
RoHS Directive (Europe)
Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
