Biamp TCM-XA White

$2,920.00

Parlé TCM-XA White

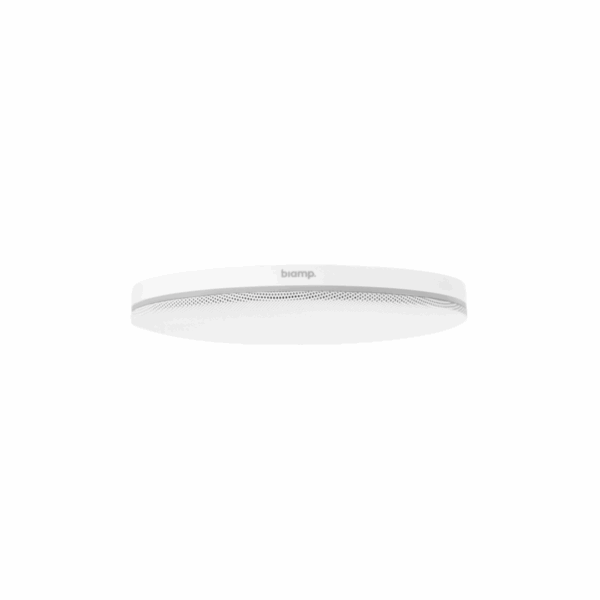

AVB Beamtracking, surface-mount ceiling microphone with PoE+ amplifier, white.

Key Features

  • Measures 5.90 inches (150mm) in diameter
  • Uses only one channel of AEC per microphone
  • Network box includes DSP for Beamtracking and a PoE+ amplifier:
    • Two channels
    • Burst mode to handle peak loads; supports up to 40 watts (4Ω) or 30 watts (8Ω) per channel
    • Software-selectable power vs. channel count
    • Includes internal limiter function
  • Beamtracking technology works out-of-box without any lobe aiming or room mapping
  • Single cable connection via CAT5 cable
  • LED mute status indicator
  • Available in either black or white
  • Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
  • Additional RJ-45 connection
  • CE marked, UL listed, and RoHS compliant
  • Compliant with the US Trade Agreement Act (TAA)

Description

The Parlé TCM-XA is an AVB low-profile ceiling microphone and PoE+ (IEEE 802.3at Class 4, 30W) amplifier for use in Tesira systems.

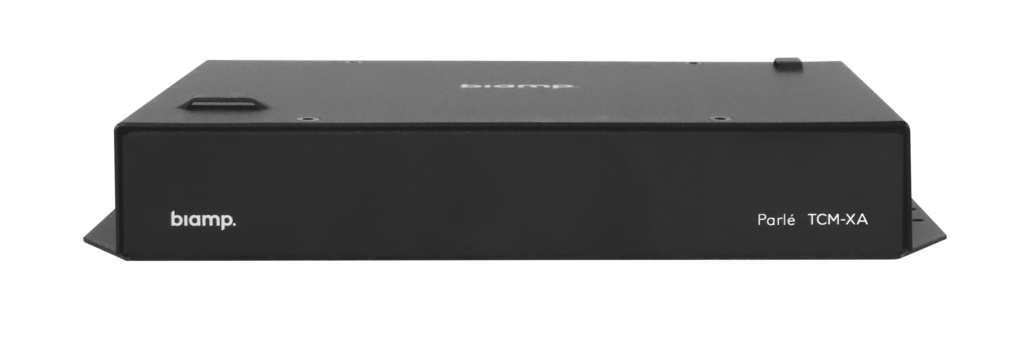

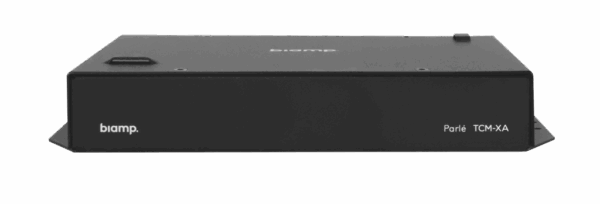

Comprising a network box and a ceiling microphone, each microphone includes Beamtracking technology with four 90-degree zones, providing full 360-degree coverage of the meeting space. Each network box has its own digital signal processing module and comes with an additional RJ-45 connector to add an optional TCM-XEX.

A maximum of two microphones are permitted per network box (one TCM-X or TCM-XA with TCM-XEX). The 2-channel PoE+ amplifier includes an internal limiter, selectable power, and a burst mode to handle peak signals.

Conference Room Designer
Classroom Designer

The Parlé TCM-XA Black & Parlé TCM-XA White comply with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.

Specs

GENERAL
Height 1.2 inches (30 mm)
Width 6.8 inches (172 mm)
Depth 5.2 inches (132 mm)
Diameter 5.9 inches (150 mm)
Weight 1.5 lbs (680 g)
Included Accessories Optional Accessories:
Seismic Cable Adapter Cable adapter for TCM plenum boxes
TB-1 Tile bridge for TCM plenum boxes
TCM-X Installation Tool Hole saw and driver
TCM-X-DK Plenum attachment for drywall ceilings
TCM-X-FM Flush Mount Kit
Plenum Box 12×12 Chicago compliant plenum box
C5E-10-P, C5E-25-P 10ft and 25ft pre-terminated plenum rated Cat 5e cables
ENVIRONMENTAL
Ambient Operating Temperature Range 32 – 104° F (0 – 40° C)
Humidity 0-95% relative humidity (non-condensing)
Altitude 0-10,000 ft (0-3000m) MSL
POWER
Power PoE (IEEE 802.3at Class 3, 15.4W)
Power Indicator(s) (Green/Yellow/Red LED)
NETWORK

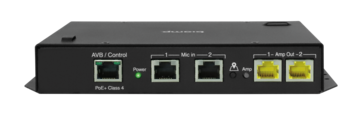

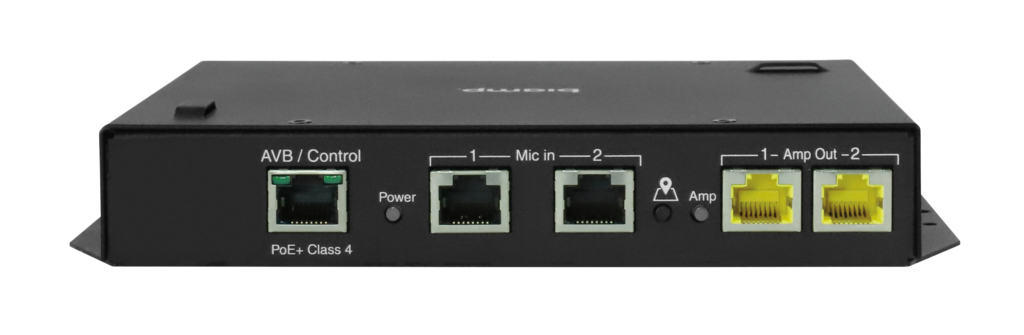

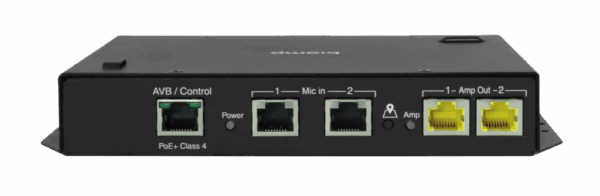

Network Connection(s) NETWORK BOX
Connectors: Three RJ-45:
One between TCM-X network box and switch
One between the network box and microphone
One between TCM-X network box and TCM-XEX
Network Connection(s) NETWORK BOX
Connectors: Three RJ-45:
One between TCM-X network box and switch
One between the network box and microphone
One between TCM-X network box and TCM-XEX
AMPLIFIER
Amplifier Number of Channels: 2
Connectors: RJ-45
Amplifier Topology: Class D
Burst Power Output (per ANSI/CTA-2006-B @ 1kHz):
4Ω (per channel): 40W
8Ω (per channel): 30W

Continuous Power Output:
Single Channel Driven, (4Ω, 8Ω): 8W
Dual Channel Driven (4Ω, 8Ω): 4W

THD+N (20Hz-20kHz, at continuous power): < 0.3%
Frequency Response (20Hz-20kHz): ± 1dB
Dynamic Range (20Hz-20kHz BW): > 85dB
Minimum Operational Load: 4Ω
Intermodulation distortion (SMPTE): < 0.3%
Cross Talk (channel to channel @ 1kHz): < -90dB
AUDIO
Audio Polar Pattern: Active Beamformed
SNR (at 1kHz, 94dBSPL A-Weighted): > 76dB
Indicators: Mute Indicator (Green/Red LED)
Digital Interface: Custom/Proprietary
Connector: RJ-45 (cable length 6.6 feet [2 meters])
Max Distance Between Devices:
330 feet (100 meters) from switch to TCM-X network box;
33 feet (10 meters) between TCM-X network box and TCM-XEX
Microphone Microphone Technology: 16-Element Digital Array
THD+N Dynamic Range (THD+N < 1%): 92dB, A-Weighted
Frequency Response (150 Hz – 16 kHz): ± 3dB
SPL Maximum SPL (at < 1% THD): 109dB
CERTIFIED SOLUTIONS
TAA Compliant TAA Compliant
COMPLIANCE
Certifications Compliance:
FCC Part 15B (USA)
CE marked (Europe)
UL and C-UL listed (USA and Canada)
RoHS Directive (Europe)
Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
