Parlé TCM-X White
AVB Beamtracking, surface-mount ceiling microphone, white.
Key Features
- Measures 5.90 inches (150mm) in diameter
- Mounts directly to the ceiling to virtually disappear in room
- Beamtracking technology actively tracks and intelligently mixes conversations
- Four 90-degree zones for full 360-degree room coverage
- Network box includes DSP for Beamtracking
- Uses only one channel of AEC per microphone
- Single cable connection via CAT5 cable
- Beamtracking technology works out-of-box without any lobe aiming or room mapping
- LED mute status indicator
- Available in either black or white
- Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
- Additional RJ-45 connection
- CE marked, UL listed, and RoHS compliant
- 5-year warranty
- Compliant with the US Trade Agreement Act (TAA)
Description
The TCM-X is an AVB low-profile ceiling microphone for use in Tesira systems. Comprising a network box and a ceiling microphone, each microphone includes Beamtracking technology with four 90-degree zones, providing full 360-degree coverage of the meeting space.
The TCM-X microphone delivers the same level of performance as our other Beamtracking microphones in a sleek, unobtrusive design that mounts to the ceiling. The TCM-X actively tracks and intelligently mixes conversations from around the table, allowing far-end participants to experience the conversation as they would a face-to-face meeting. Each network box has its own digital signal processing module and comes with an additional RJ-45 connector to add an optional TCM-XEX to the network box. A maximum of two microphones are permitted per network box (one TCM-X or TCM-XA with TCM-XEX).
The TCM-X is well suited for a variety of room types and sizes with 10 foot ceilings or lower that require high quality audio solutions and low profile or unobtrusive microphones. White surface mount.
Conference Room Designer
Classroom Designer
The Parlé TCM-X White & Parlé TCM-X Black comply with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.
Specs
|
| Height |
1.2 inches (30 mm) |
| Width |
6.8 inches (172 mm) |
| Depth |
5.2 inches (132 mm) |
| Diameter |
5.9 inches (150 mm) |
| Weight |
1.4 lbs (625 g) |
| Included Accessories |
Optional Accessories:
Seismic Cable Adapter Cable adapter for TCM plenum boxes
TB-1 Tile bridge for TCM plenum boxes
TCM-X Installation Tool Hole saw and driver
TCM-X-DK Plenum attachment for drywall ceilings
TCM-X-FM Flush Mount Kit
Plenum Box 12×12 Chicago compliant plenum box
C5E-10-P, C5E-25-P 10ft and 25ft pre-terminated plenum rated Cat 5e cables |
|
| Ambient Operating Temperature Range |
32 – 104° F (0 – 40° C) |
| Humidity |
0-95% relative humidity (non-condensing) |
| Altitude |
0-10,000 ft (0-3000m) MSL |
|
| Power |
PoE (IEEE 802.3at Class 3, 15.4W) |
| Power Indicator(s) |
Power Indicator (Green/Yellow/Red LED) |
|
| Network Connection(s) |
MICROPHONE:
RJ-45 (cable length 6.6 feet [2 meters])

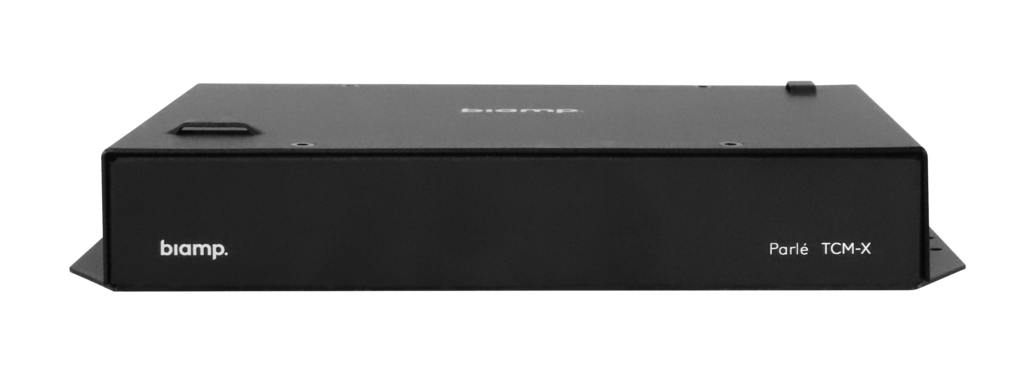

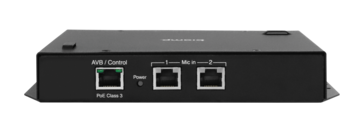

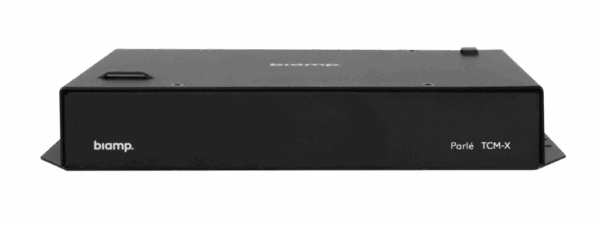

NETWORK BOX
Connectors: Three RJ-45:
One between TCM-X network box and switch
One between the network box and microphone
One between TCM-X network box and TCM-XEX expansion microphone (for dual microphone install) |
| Network Connection(s) |
MICROPHONE:
RJ-45 (cable length 6.6 feet [2 meters])
NETWORK BOX
Connectors: Three RJ-45:
One between TCM-X network box and switch
One between the network box and microphone
One between TCM-X network box and TCM-XEX expansion microphone (for dual microphone install) |
|
| Microphone |
Microphone Technology: 16-Element Digital Array
Frequency Response: (150 Hz – 16 kHz): ± 3dB
Polar Pattern: Active Beamformed
SNR (at 1kHz, 94dBSPL A-Weighted): > 76dB
Maximum SPL (at < 1% THD): 109dB
Dynamic Range (THD+N < 1%): 92dB, A-Weighted
Indicators: Mute Indicator (Green/Red LED)
Digital Interface: Custom/Proprietary
Connector: RJ-45 (cable length 6.6 feet [2 meters])
Digital Interface: Custom/Proprietary
Max Distance Between Devices:
330 feet (100 meters) from switch to TCM-X network box;
33 feet (10 meters) between TCM-X network box and TCM-XEX |
|
| TAA Compliant |
TAA Compliant |
|
| Certifications |
Compliance:
FCC Part 15B (USA)
CE marked (Europe)
UL and C-UL listed (USA and Canada)
RoHS Directive (Europe)
Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces |
