Biamp TCM-1EX Black

$1,015.00

Parlé TCM-1EX Black

Expansion AVB Beamtracking pendant microphone, black.

Key Features

  • Must be used with a Parlé TCM-1 or TCM-1A microphone
  • Beamtracking technology actively tracks and intelligently mixes conversations
  • Three 120-degree zones for 360-degree coverage
  • Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
  • Pendant microphone available in either white or black
  • Optional tile bridge mounting accessory available
  • Additional RJ-45 for daisy-chain connection to a TCM-1EX microphone (maximum of three microphones per daisy chain)
  • CE marked, UL listed, and RoHS compliant
  • Compliant with the US Trade Agreement Act (TAA)

Description

The Parlé TCM-1EX is an expansion AVB ceiling microphone intended to be used as a second and third microphone in conjunction with a TCM-1 or TCM-1A; it cannot operate as a standalone device.

Each microphone includes Beamtracking technology with three 120-degree zones, providing full 360-degree coverage of the meeting space. The plenum box is equipped with an additional RJ-45 connector for daisy chain connections; a maximum of three microphones are permitted per daisy chain (one TCM-1 or TCM-1A required, plus up to two TCM-1EX).

Conference Room Designer Classroom Designer

The Parlé TCM-1EX Black & Parlé TCM-1EX White comply with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.

Specs

GENERAL
Height Microphone: 2 inches (51 mm)

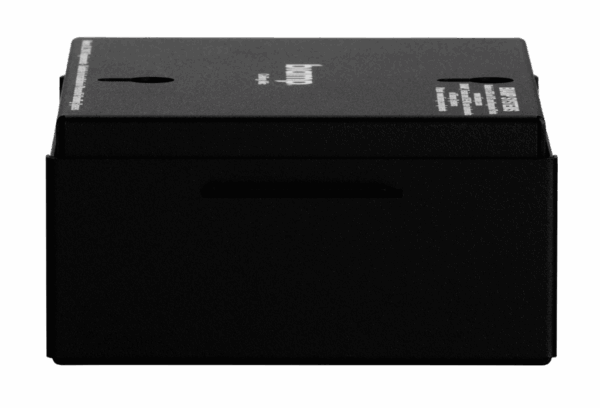

Plenum Box: 2 inches (51 mm)
Width Microphone: 2.5 inches (63 mm)
Plenum Box: 4 inches (102 mm)
Depth Microphone: 2.5 inches (63 mm)
Plenum Box: 5.25 inches (133 mm)
Weight Microphone: 0.4 lbs (0.2 kg)
Plenum Box: 0.8 lbs (0.4 kg)

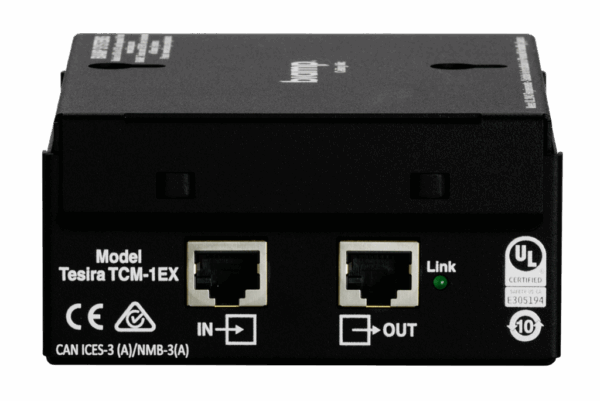

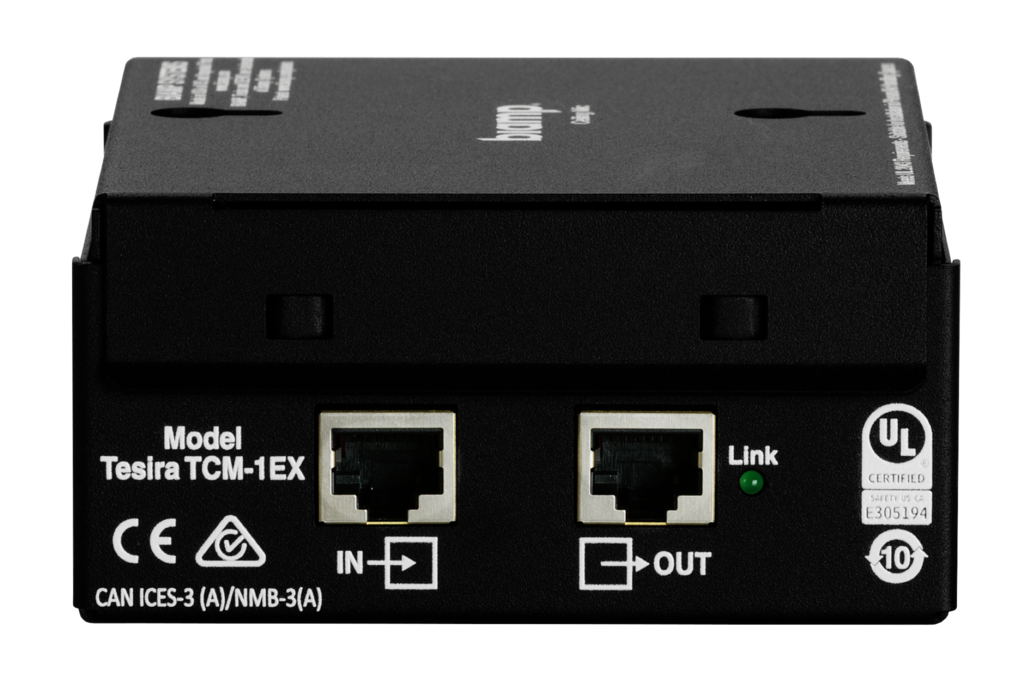

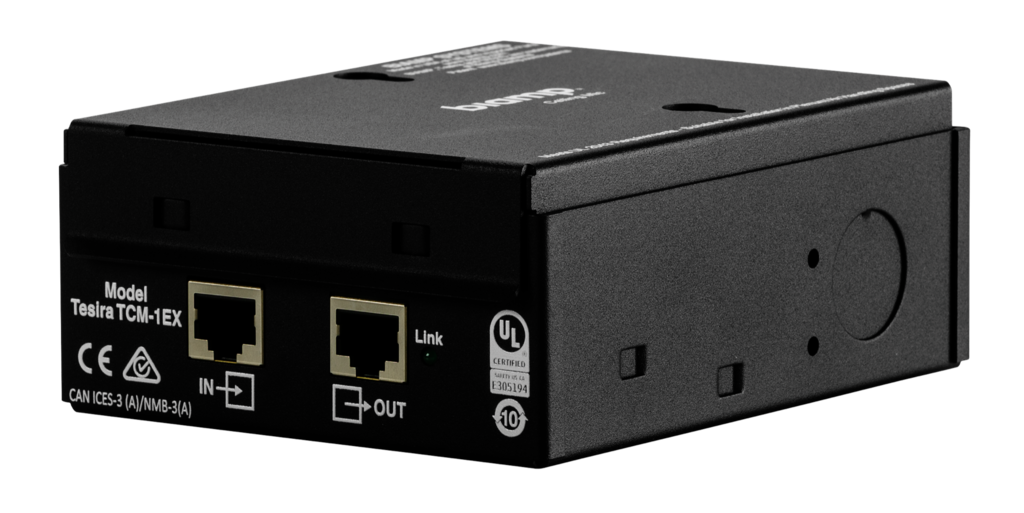

Included Accessories Plenum Box (included): Connectors: Two RJ-45: one between TCM-1EX plenum box and TCM-1 or TCM-1A, the other between TCM-1EX plenum box and additional TCM-1EX plenum box; 2-pin 3.5 mm Phoenix connector to TCM-1EX microphone
Digital Interface: Custom/Proprietary
Max Distance Between Devices: 33 feet (10 meters) between TCM plenum boxes
POWER
Power Plenum Box: Custom/Proprietary
Power Indicator(s) Plenum Box: Link Indicator (Green LED) Microphone: Mute Indicator (Green/Red LED)
AUDIO
Microphone Pendant: Microphone Technology: 8-Element Digital Array
Polar Pattern: Beamformed
Sensitivity (94dB SPL, 1kHz): > 70dB
Digital Interface: Custom/Proprietary
Connector: Custom 2-pin (cable length 10 feet [3 meters])
Frequency Response (150 Hz – 16 kHz): ± 3dB
Dynamic Range (THD+N < 10%): 92dB, A-Weighted
SPL (at 0.5% THD): 106dB
CERTIFIED SOLUTIONS
TAA Compliant TAA Compliant
COMPLIANCE
Certifications FCC Part 15B (USA)
CE marked (Europe)
UL and C-UL listed (USA and Canada)
RoHS Directive (Europe)
Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
