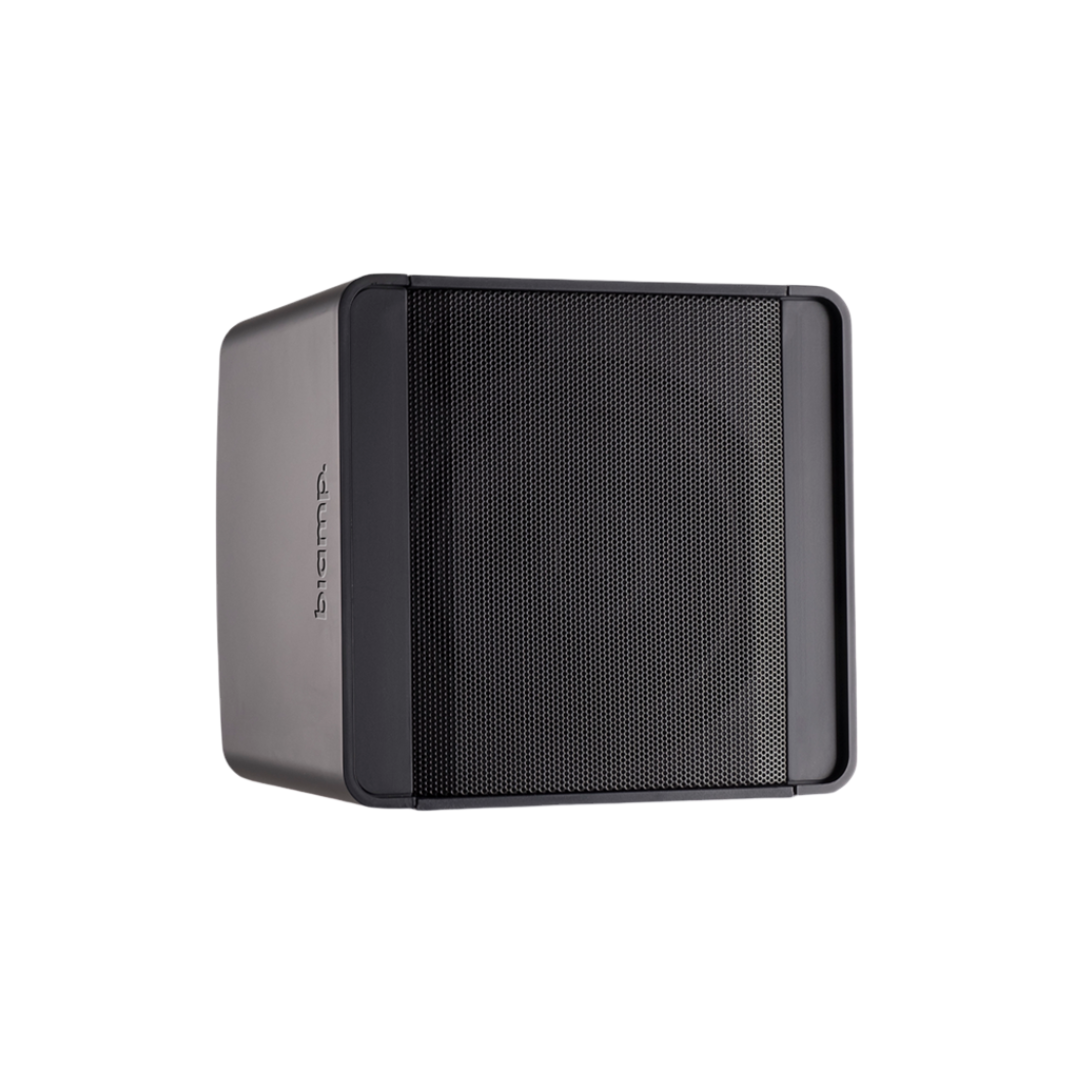

Biamp KUBO3-BL

$120.00

Desono KUBO3-BL

Black, 3-inch, full range, compact, surface mount loudspeaker, 8 ohms / 40 watts, mounting bracket and safety cable included.

Key Features

  • Zoom certified
  • High speech intelligibility coupled with full-range music reproduction
  • Stylish yet subtle design; blends well in many environments
  • Can be mounted to track lighting rails through innovative optional accessories
  • IP40 rated
  • Magnetically attached end caps hide audio connections and bracket hardware
  • Loudspeaker overload protection for 24/7 failsafe operation

Descriptions

The Desono KUBO3 full range, 3-inch, surface mount, loudspeaker is the result of increasing demand for more stylish yet subtle audio products. Designed to blend into any background, the KUBO3 delivers crystal clear sound for all your background music needs, while the bass reflex port provides a fast and dynamic bass response.

Available in black or white, the 140° range of motion allows the KUBO3 to be installed on walls or ceilings in either horizontal or vertical orientation. The audio connections and bracket hardware are hidden under magnetically attached end caps, providing a refined look for high visibility locations. For retail applications, optional accessories are available that allow the KUBO3 to be attached directly to many types of track lighting rails.

The Desono KUBO3 is an excellent choice for indoor audio applications that demand superior speech intelligibility and full range music reproduction, as well as open deck sound masking applications.

Specs

GENERAL
Height 4.9 inches (125 mm)
Width 5.2 inches (131 mm)
Depth 4.3 inches (109 mm)
Weight 2.1 lbs (1 kg)
Finish Grille: White (RAL 9016) or Black (RAL 9011)
Enclosure: Matte finish
Material Enclosure: ABS plastic Grille: Steel
Enclosure ABS plastic
Mounting Mounting Provisions: U-bracket
Included Accessories Included Accessories: U-bracket; Safety cable
Optional Accessories: LRABAS(-BL/-W): Basic light rail adaptor, black or white, LRAPRE(-BL/-W): Premium light rail adaptor, black or white
Recommended Amplifiers 25W – 50W @ 8Ω (14V – 20V)
ENVIRONMENTAL
Operating Environment Indoor
POWER
Power Continuous Power Handling @ Nominal Impedance: 14V 25W @ 8Ω (100W peak)
LOUDSPEAKER
Loudspeaker System Full-Range
Operating Mode Passive
Operating Range (-10dB): 115 Hz to 20 kHz
Beamwidth Nominal Beamwidth (H x V): 100° x 100°
Transducers 1×3 inch (76 mm) polypropylene cone
Sensitivity Nominal Sensitivity @ 1m:
@ 1W: 84 dB
@ 2.83V: 84 dB
AUDIO
Input Type INPUT CONNECTION: (2x) 2-way Euroblock connectors for daisy-chaining;
Connectors accept up to 12 AWG (2.5 mm²) conductors
SPL Nominal Maximum SPL @ 1m:
Peak: 104 dB
Continuous: 98 dB
CERTIFIED SOLUTIONS
Zoom Zoom Certified
COMPLIANCE
Safety Features PROTECTION: 3-step self-resetting protection
Environmental Ratings IP40 per IEC 60529
NOTES
Specification Notes INCLUDED ACCESSORIES:
Mounting bracket (U-bracket)
Safety cable
