Community IS6-118B

$2,580.00

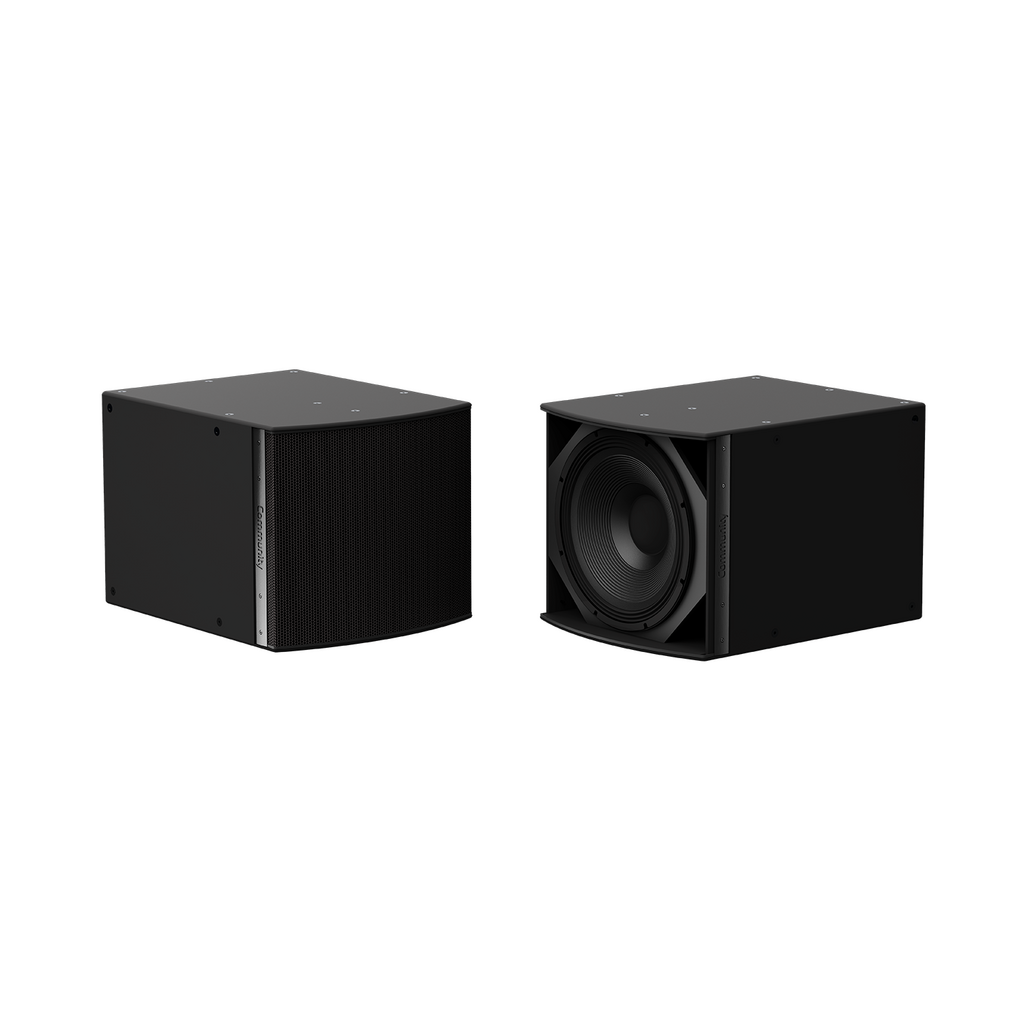

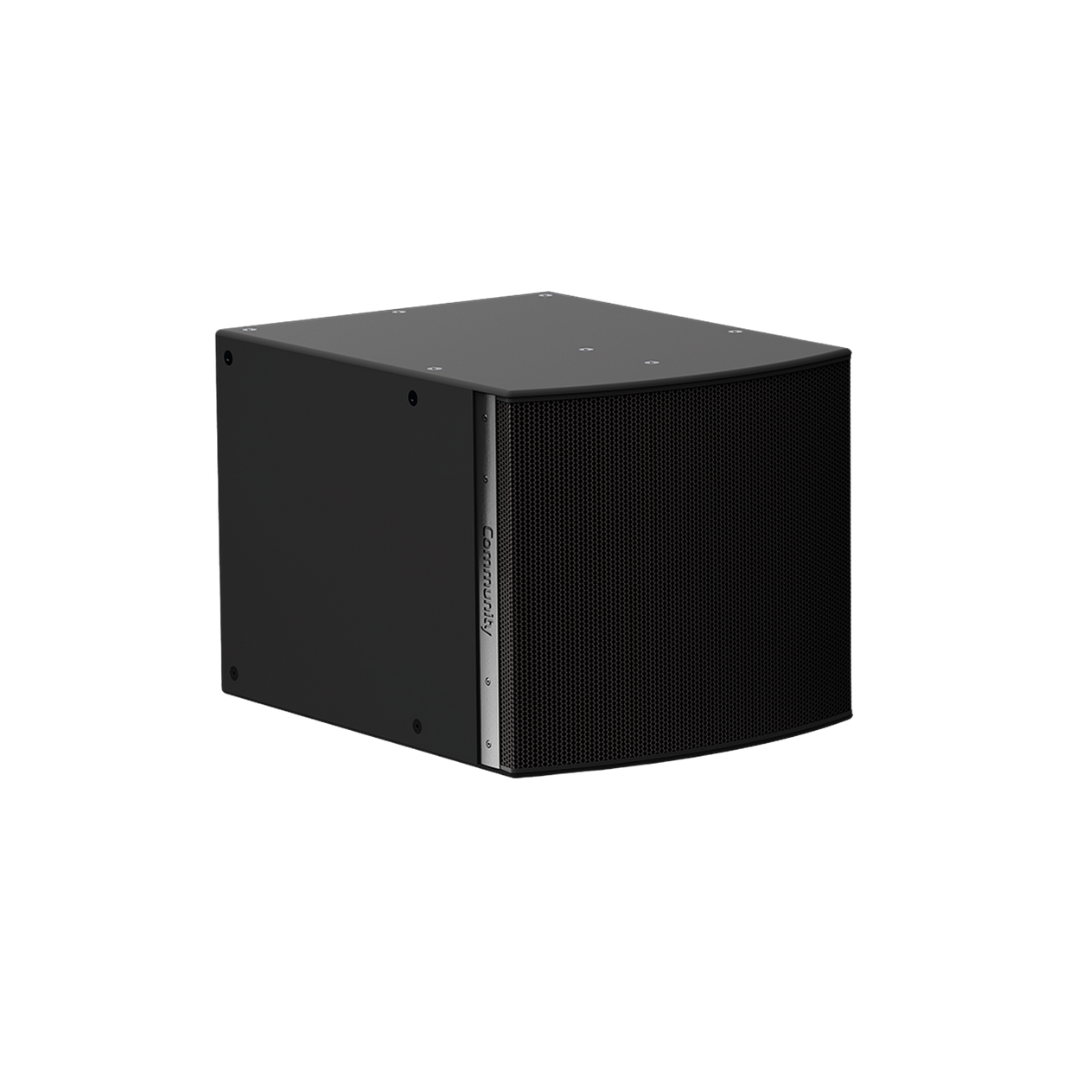

Community IS6-118B

Medium power, 18-inch subwoofer, black.

Key Features

  • Compact, medium power, single 18-inch subwoofer
  • Indoor installation, black finish
  • Long excursion ferrite LF driver with FEA-optimized motor and symmetric movement suspension
  • Matched-size enclosure and aligned suspension point for seamless flown array integration
  • 700 watt continuous power handling (2800 watt peak)
  • High sensitivity design minimizes power compression losses and required amplifier size
  • Compliant with the US Trade Agreement Act (TAA)

Description

The Community IS6-118B is a compact 18-inch, direct radiating subwoofer with large, balanced ports that provide optimal enclosure tuning and even air pressure distribution to the driver cone, reducing distortion and extending system longevity. An FEA-optimized ferrite motor with long linear excursion capabilities provides deep bass response for the enclosure’s diminutive size. The IS6-118 is available in indoor black and white, weather-resistant gray, and configured-to-order options with custom color and custom cable length.

The I Series Subwoofer 600 loudspeakers provide excellent acoustic performance, modular flexibility and elegant aesthetics for modern performance venues. Designed to support the goals of systems integrators and consultants both acoustically and mechanically, I Series subwoofers provide a broad range of sizes and capabilities that can be specifically matched to the needs of any modern venue. The compact, low-profile single driver I Series subwoofers are ideal for distributed or concealed sub-bass and are the perfect choice for ground stack applications. Additionally, each cabinet was carefully designed to provide matching face widths and suspension point locations for seamless integration into flown arrays with I Series full-range models when additional LF extension is needed but a compact appearance is required. The broad range of optional low-profile fly rails, fly frames and modular array brackets reduces design and installation time while also providing improved aesthetics and nearly limitless integration possibilities.

Specs

GENERAL
Height 19.8 inches (503 mm)
Width 22.1 inches (561 mm)
Depth 29.9 inches (734 mm)
Weight 97 lbs (44 kg)
Finish RAL Color: Black RAL 9005
Material Enclosure / Finish: Black (RAL#9004) or White (RAL#9003) low gloss, uniformly textured painted 15mm Baltic Birch plywood.
Grille: Powder-coated perforated steel backed with color-matched acoustically transparent woven fabric. Black (RAL#9005) or White (RAL#9003)
Mounting (24) M10 threaded rigging points Indoor; (22 in Outdoor model)
Included Accessories (Refer to BalancePoint Flyware Accessory Guide for complete listing)
Recommended Amplifiers Single Amp: 700W – 1400W @ 8 ohms, (75V – 106V)
ENVIRONMENTAL
Operating Environment Indoor
POWER
Power 700W Cont.
2800W Peak
LOUDSPEAKER
Loudspeaker Type 18-inch medium power subwoofer
Operating Mode Single Amp
Operating Range 32 Hz – 145 Hz
Transducers 1 x 18-inch (457mm) double-treated cone with 4-inch (102mm) inner/outer wound voice coil, ferrite construction
Sensitivity (1W/1m) – half space: 104 dB
Dispersion Omnidirectional
Drivers LF 1 x 18 inch
AUDIO
Impedance
Maximum Output @1m (half space): 132 dB
138 dB Peak
CERTIFIED SOLUTIONS
TAA Compliant TAA Compliant
COMPLIANCE
Environmental Ratings Outdoor: IP55W per IEC 60529 , MIL-STD-810G
