Community IP6-1122/26B

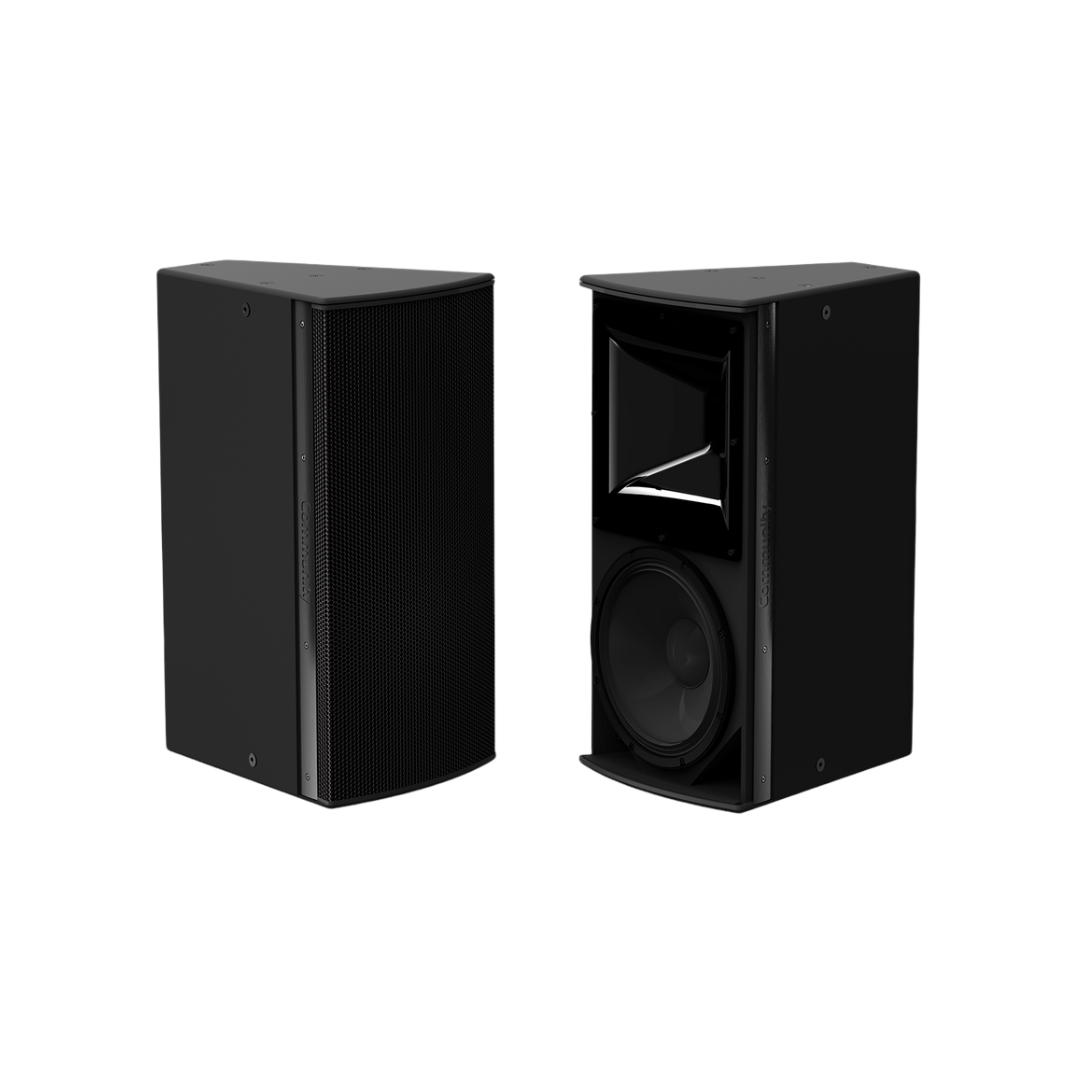

Medium power, 12-inch, 2-way, 120° x 60° black loudspeaker.

Key Features

• 120° H x 60° V dispersion
• Indoor installation, black finish
• Long excursion ferrite LF driver with FEA-optimized motor and symmetric movement suspension
• 3-inch voice coil, 1.4-inch exit HF driver; hybrid titanium/polyimide diaphragm on low compression phase plug
• Lightweight and compact with deep LF extension
• Large rotatable waveguide with individually voiced crossover, single-amp/bi-amp selectable
• Innovative low profile modular bracket systems create elegant arrays with simplified installation
• Compliant with the US Trade Agreement Act (TAA)

Description

The IP6-1122/26B is a medium power, 12-inch, 2-way, 120° x 60°, black, point source loudspeaker. The rotatable 13-inch (330mm) HF waveguide provides well-defined coverage and a smooth off-axis response that enhances array ability. Individually voiced crossovers produce proper beamwidth matching transitions and identical sonic signatures, permitting horn patterns to be mixed throughout an installation. Additionally, user selectable single amp or biamp operating modes expand application flexibility. FEA-optimized ferrite motors, mechanically mirrored suspension and advanced cooling system combine to provide linear performance with minimal power compression. The custom long-excursion LF driver delivers deep bass response and a detailed midrange at maximum SPL levels. The HF driver delivers excellent sound quality from a hybrid diaphragm of deep drawn titanium and resonance-absorbing polyimide, coupled to a patented low compression, low resonance phase plug for very low distortion performance with abundant headroom. I SERIES Point Source 600 loudspeakers provide excellent acoustic performance, modular flexibility and elegant aesthetics for modern performance venues. Designed to support the goals of systems integrators and consultants both acoustically and mechanically, I SERIES includes a wide variety of arrayable, rotatable coverage patterns and a comprehensive selection of modular bracket systems that accelerate system design and system commissioning.

AMPLIFIED LOUDSPEAKER CONTROLLERS
Voltera ALCs are recommended for this product. Higher power ALC models may be used safely as well.

The IP6-1122 loudspeaker models comply with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.
