Biamp Desono P30DT-BL

$290.00

Desono P30DT-BL

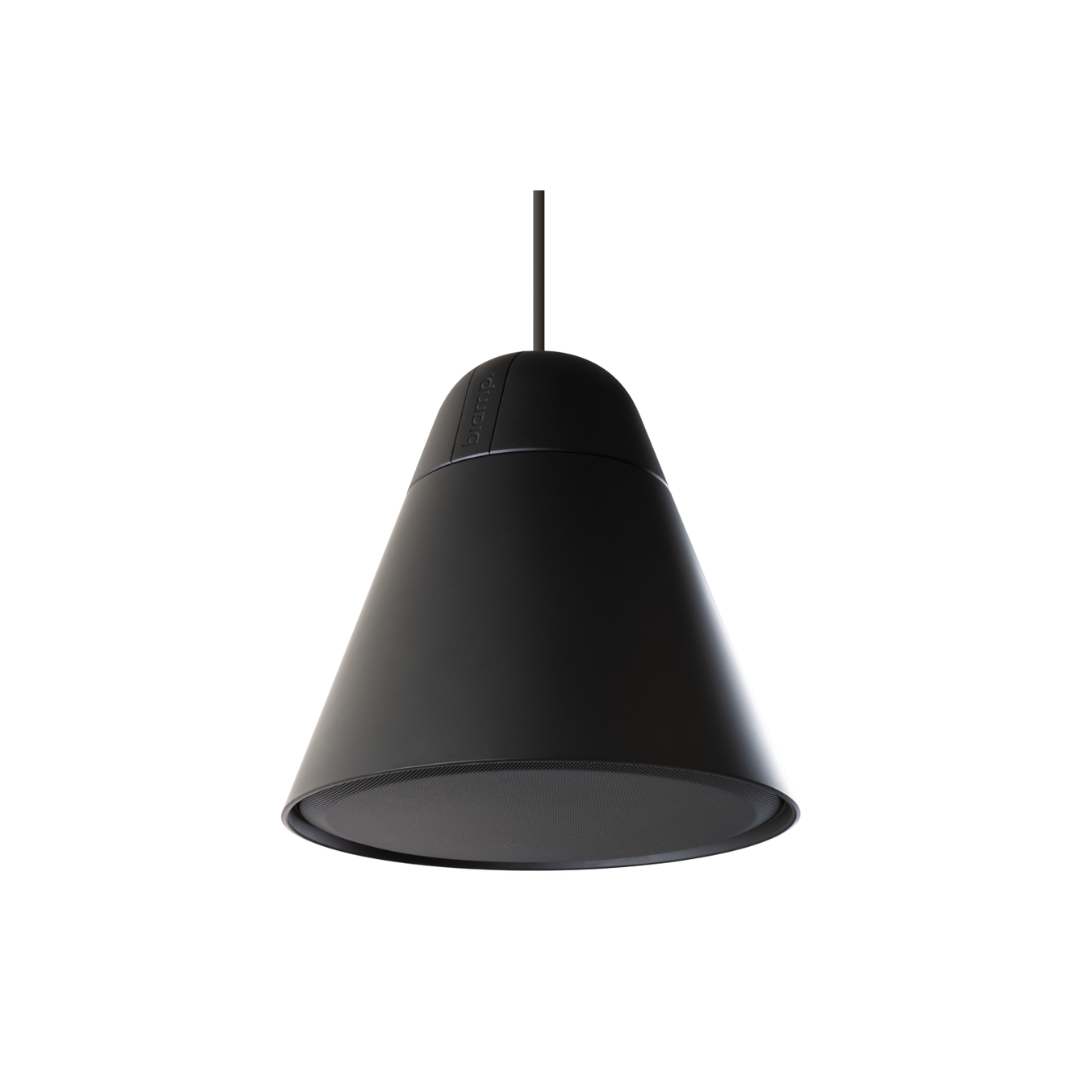

4.25-inch, 2-way, black pendant loudspeaker 70V/100V or 16 ohm low impedance.

Key Features

    • Zoom Certified

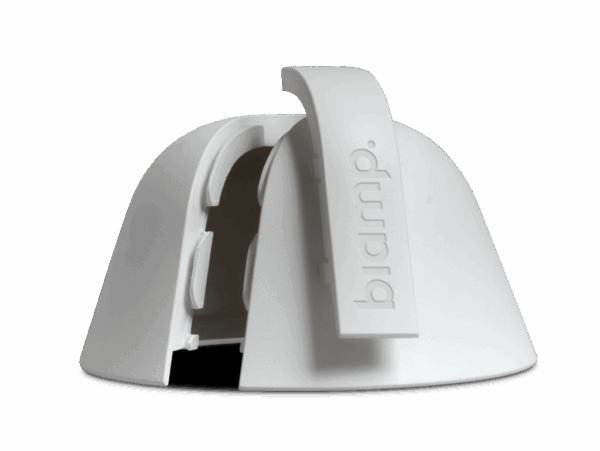

    • Installer-friendly end cap with cut-out slot and integrated magnetic closure; hides the tap selector and all cable connections

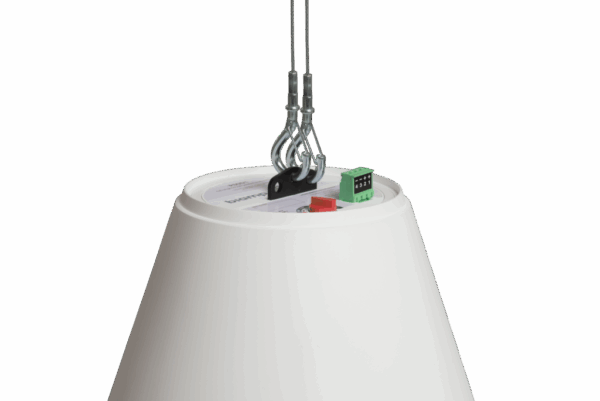

    • Two toolless Gripple cable fasteners are provided for a safe, secure, and fast installation
    • Euroblock connector with permanent pass-through

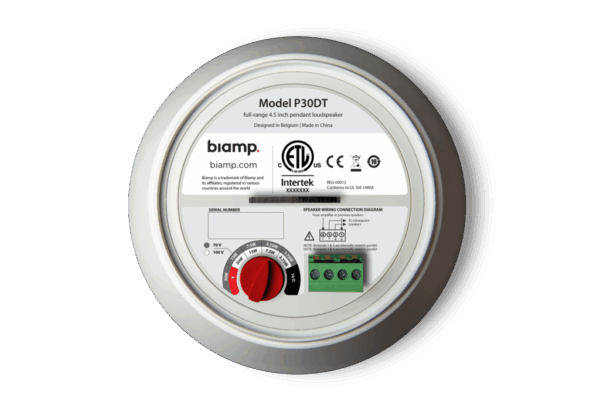

    • Tap switch allows for 70V/100V or 16 ohm low impedance operation
    • Tuned bass reflex port for optimized low frequency performance
    • Loudspeaker overload protection for 24/7 failsafe operation
    • ETL listed to conform with UL Std 1480A; Certified to CSA C22.2#62368-1

Description

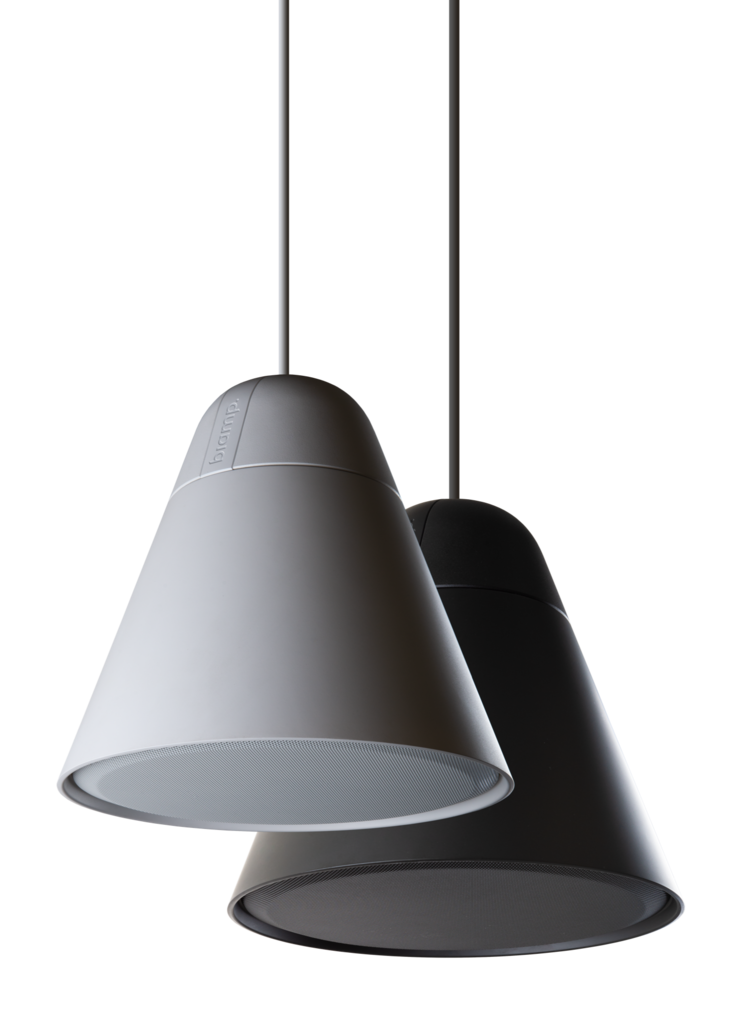

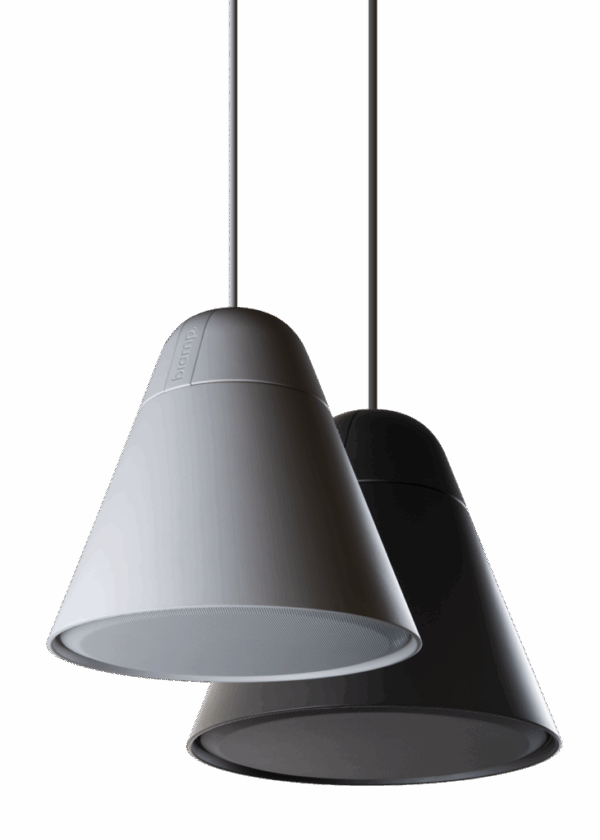

The P30DT two-way, 4.25-inch, pendant loudspeaker brings exceptional dispersion to areas with open ceilings, while offering clear speech and musical purity. Available in black or white, the P30DT is suitable for a wide range of background and foreground audio applications.

The Gripple cable fasteners, Euroblock connector, and 70V/100V tap switch can be hidden after installation by the innovatively designed end cap. The attractive aesthetics and ease-of-installation make this product an industry standard.

Specs

GENERAL
Height 8.8 inches (223 mm)
Diameter 9.2 inches (233 mm)
Weight 5.7 lbs (2.6 kg)
Finish RAL color: White RAL 9010
Enclosure Enclosure / Finish:
ABS plastic, matte finish, White or Black
Grille:
Powder-coated perforated steel
White (RAL 9011) or Black (RAL 9010) finish
Mounting Two 5m (16.4 ft) wire suspension cables (one as primary support, one as a safety cable), of high tensile galvanized steel wire rope with integrated spring clips for attaching the cable to the bracket and Gripple cable fasteners
Included Accessories Included Accessories:
Two wire suspension cables
Two Gripple cable fasteners
End cap and cable coverRecommended Accessories:
75 Hz, 12dB/Oct High Pass

Optional Accessories:
MC-PHK16-12PK: Pendant Hanging Kit with twelve (12) 5m (16ft) lengths of Magic Cable and the connectors to suspend snap-hook-mounted pendant loudspeakers. Available in White or Black.

Recommended Amplifiers 50W – 100W @ 16 ohms, (28V – 40V)
ENVIRONMENTAL
Operating Environment Indoor
POWER
Power 50W Cont.
200W Peak
LOUDSPEAKER
Loudspeaker Type 2-way 4.25-inch pendant loudspeaker
Operating Mode Passive
Operating Range 75 Hz – 20 kHz
Beamwidth 120°, conical
Transformer 70V: 30W, 15W, 7.5W, 3.75W, 1.75W
100V: 30W, 15W, 7.5W, 3.75W
Sensitivity (1W/1m) 87 dB
Dispersion 120° conical
Drivers LF 1 x 4.25 inches
HF 1 x 1 inch
AUDIO
Impedance 16Ω
Maximum Output 104 dB
110 dB Peak
CERTIFIED SOLUTIONS
Zoom Zoom Certified
COMPLIANCE
Certifications ETL listed to comply with UL Std 1480A
Certified to CSA C22.2#62368-1Suspension system and Gripple cable fasteners listed per UL1598 and UL2239, TUV and CSA Class 3426-01 and Class 3426-81.
