$150.00

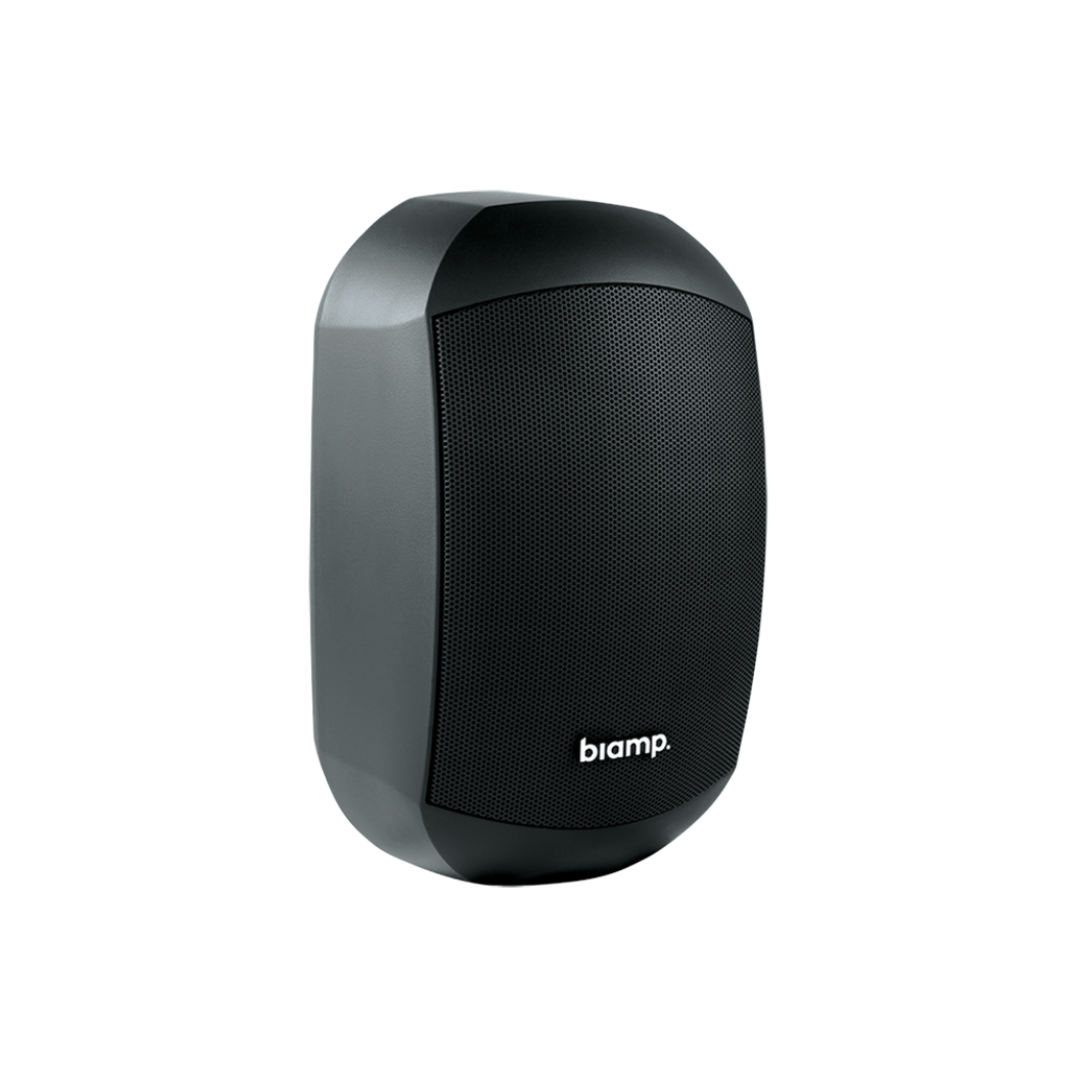

4.25-inch, two-way, surface mount loudspeaker, black.
Key Features
The MASK4CT has a unique design and delivers a crystal-clear sound for all music applications. The MASK4CT can be used as a 70V/100V speaker with power tapping on 20 – 10 – 5 – 2.5 watts in 100V or as a low impedance 16 ohm speaker. This results in a versatile speaker that can be used in any location and any application. The cabinet is made of high quality enforced PP4 ABS, with an aluminum grill. The design of the MASK4CT ensures high quality and long-lasting performance in indoor and outdoor use, even under extreme weather conditions. The MASK4CT has a powerful 4.25” coated paper cone woofer and a 1” silk dome tweeter which results in a high SPL and extremely low distortion. This ensures an unprecedented clarity over the whole frequency spectrum. The built-in 3-step protection and the high-quality components make the MASK4CT an ultra- reliable, fail safe loudspeaker even at high power loads. Thanks to the revolutionary design of the ClickMount bracket, the MASK4CT is fast and easy to install. The pre-defined clicks on the Clickmount ensure a perfect alignment for every loudspeaker. With the discrete cable management system, integrated spirit level and in/out connectors, the full cabling is done on the bracket.
GENERAL | |
Height | 9.4 inches (238 mm) |
Width | 5.7 inches (144 mm) |
Depth | 5.7 inches (144 mm) |
Weight | 5 lbs (2.3 kg) |
Mounting | ClickMount bracket |
Included Accessories | ClickMount bracket; safety cable |
Recommended Amplifiers | 50W – 100W @ 16Ω (28V – 40V) |
ENVIRONMENTAL | |
Operating Environment | Indoor/Outdoor IP64 per IEC 60529 |
CONTROLS & INDICATORS | |
Control | Power tap / low impedance selector switch |
LOUDSPEAKER | |
Operating Mode | Passive |
Operating Range | Operating Range (-10dB) 70 Hz to 22 kHz |
Beamwidth | Nominal Beamwidth (H x V) 100° x 70° |
Transducers | LF 1 x 4.25″ (108 mm) coated paper cone HF 1 x 1″ (25 mm) soft dome |
Transformer | 70V: 20W, 10W, 5W, 2.5W, 1.25W 100V: 20W, 10W, 5W, 2.5W |
Sensitivity | Nominal Sensitivity @ 1m @ 1W 88 dB @ 2.83V 85 dB |
AUDIO | |
Audio | Audio connections made at the ClickMount bracket; lever-action input and output terminals accept up to 16 AWG conductors |
Impedance | Continuous Power Handling @ Nominal Impedance 28V 50W @ 16Ω (200W peak) |
SPL | Nominal Maximum SPL @ 1m Peak 111 dB Continuous 105 dB |
CERTIFIED SOLUTIONS | |
Zoom | Zoom Certified |
COMPLIANCE | |
Environmental Ratings | IP64 per IEC 60529 |
NOTES | |
Specification Notes | Protection 3-step self-resetting protection |
