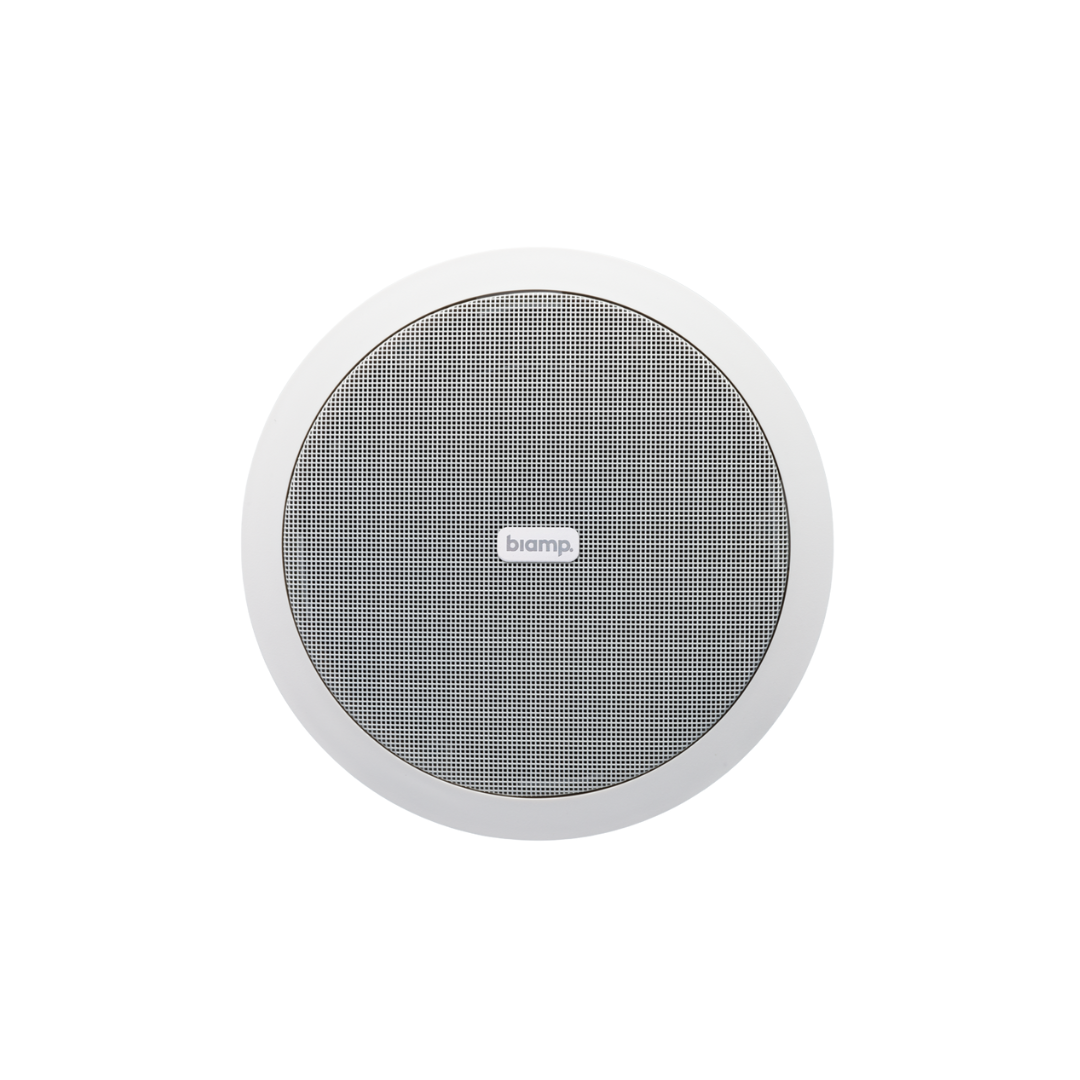

Commercial Loudspeakers CM6E
White, dual cone, built-in, 6.5-inch, 100V loudspeaker.
Key Features
- 100 V loudspeaker with 6 – 3 – 1.5 Watt power tappings
- Housing made of high quality ABS and grille made of steel
- Easy to install due to quick mounting system
- IP50 rating
- Not sold in US and Canada
- 5-year warranty
Description
CM6E is a 6.5-inch dual cone built-in, 100 volt loudspeaker delivers a loud and clear sound reproduction. The CM6E has several power tappings (6 – 3 – 1.5 watts) and is the ideal speaker for the distribution of microphone calls and background music.
The housing is made of high quality ABS. The grill is made of steel and the loudspeaker has a 6.5-inch paper dual cone woofer. The loudspeaker is easy to install, due to its simple, quick mounting system with 3 screws. The CM6E loudspeakers can be painted any color.
Specs
|
| Depth |
2.8 inches (70 mm) |
| Diameter |
Bezel Diameter: 8 inches (205 mm)
Cutout Diameter: 7.3 inches (186 mm) |
| Weight |
1.65 lbs (0.75 kg) |
| Finish |
RAL color: White RAL 9010 |
|
| Power |
15W Cont.
60W Peak |
|
| Loudspeaker Type |
6.5-inch dual cone ceiling loudspeaker |
| Operating Range |
70 Hz – 20 kHz |
| Transformer |
100V: 6W, 3W, 1.5W |
| Sensitivity |
(1W/1m) 91 dB |
| Dispersion |
180° conical |
| Drivers |
1 x 6.5 inches paper dual cone |
|
| Impedance |
4Ω |
| Maximum Output |
99 dB
105 dB Peak |
|
| Environmental Ratings |
IP50 |
