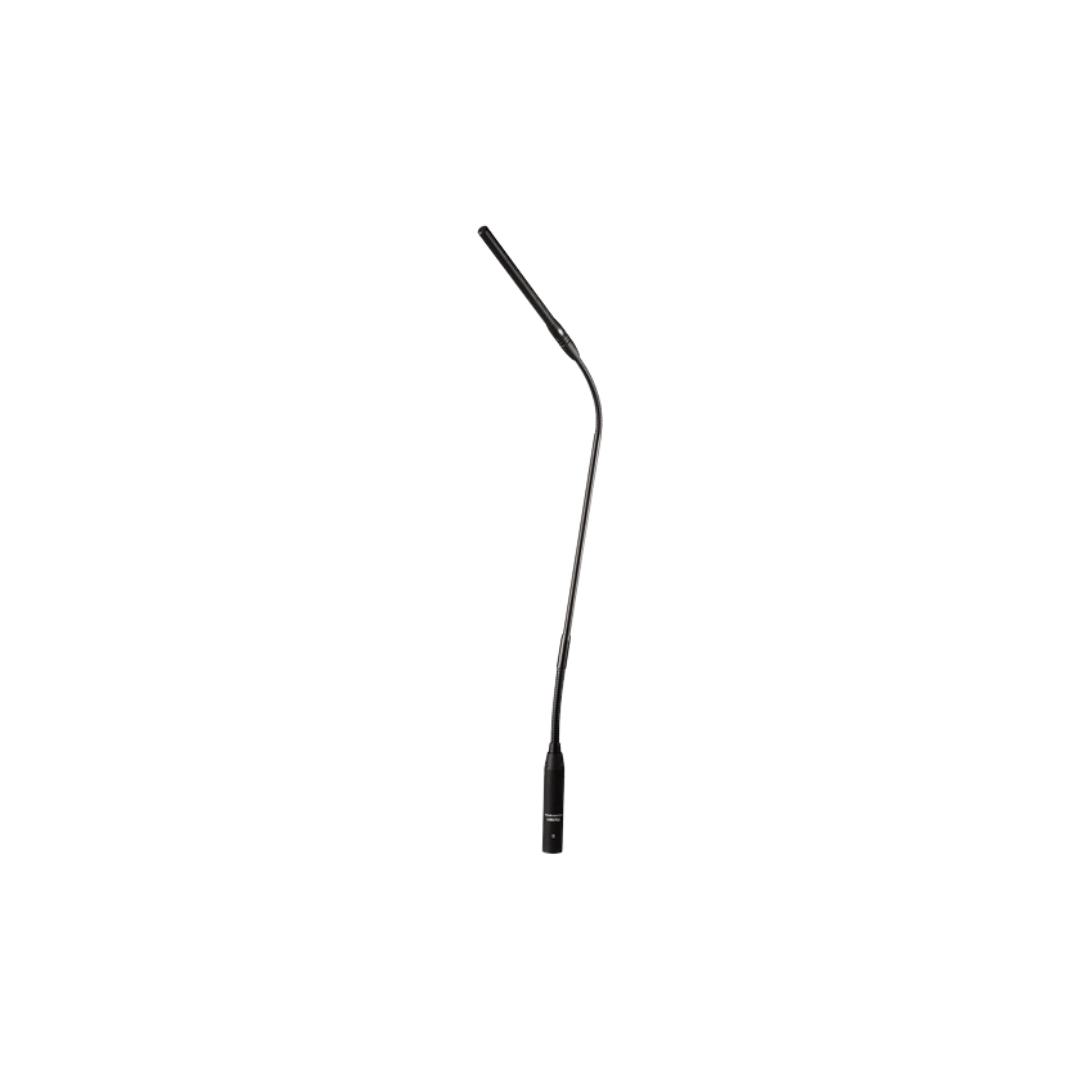

Audio-Technica U857QLU

$350.00

U857QLU

UniLne™ Cond. Quick-Mount Gooseneck Mic.

  • Designed for high-quality sound reinforcement, professional recording and broadcasting.
  • UniLine™ polar pattern provides narrow 90° acceptance angle.
  • Superior off-axis rejection for maximum gain before feedback.
  • UniGuard™ RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI).
  • Easy-to-adjust, rugged, smalldimeter, alternating gooseneck with virtually no “memory” permits quick positioning into desired shape.
  • UniSteep® filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality.
  • Self-contained electronics eliminate need for external power module.
  • Accepts interchangeable elements to permit angle of acceptance from 90° to 360°.
  • Two-stage foam windscreen yields dramatically improved resistance to P-pops and other breath blasts.
  • Quick-mount design with 3-pin XLRM-type connector insert at base plugs into any standard XLRF-type surface or cable connector.
  • Optional shock mount attenuates noise, shock and vibration transmitted through the mounting surface.

U857QLU Specifications

Element
Fixed-charge back plate, permanently polarized condenser
Polar Pattern
Line Cardioid
Frequency Response
30 ~ 20,000 Hz
Low Frequency Roll-Off
80 Hz, 18 dB/octave
Open Circuit Sensitivity
– 35 dB (17.7 mV) re 1V at 1 Pa
Impedance
250 Ω
Maximum Input Sound Level
135 dB SPL, 1 kHz at 1% T.H.D.
Dynamic Range (Typical)
115 dB, 1 kHz at Max SPL
Signal-To-Noise Ratio
74 dB, 1 kHz at 1 Pa
Phantom Power
11-52V DC, 2 mA typical
Switch
Flat, roll-off
Weight
167 g
Dimensions
603.0mm X 12.2mm (long X Head Diameter)
Output Connector
Integral 3-pin XLRM-type
Accessories Furnished
AT8154 two-stage foam windscreen
