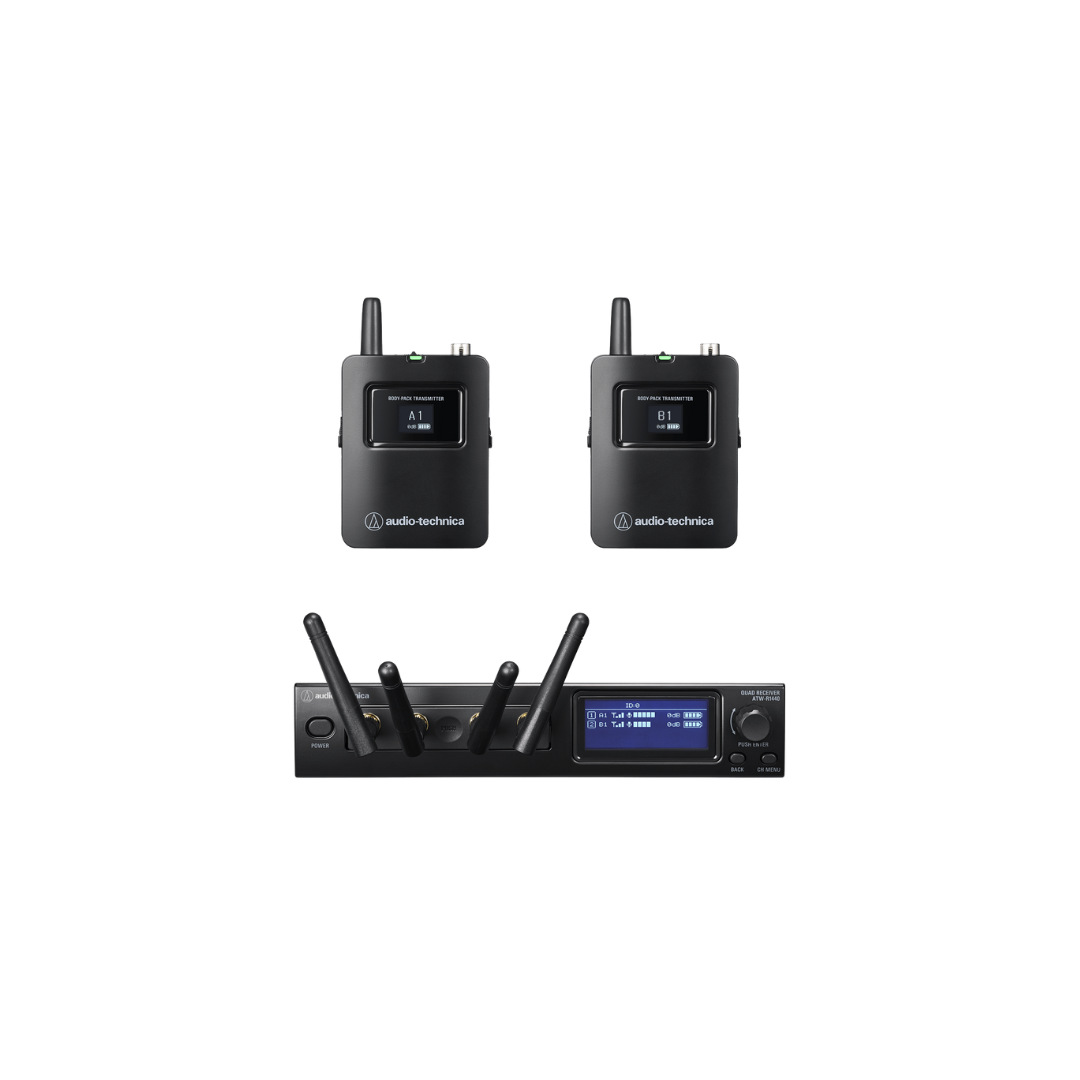

System 20 Digital Wireless System includes ATW-R1440 4-channel receiver and two ATW-T1401 body-pack transmitters.
Select microphones and/or cables with a cW-style locking 4-pin connector to complete the system.
Features
- Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
- Plug-and-play operation in the 2.4 GHz range – completely free from TV interference
- User can switch between Standard mode (10 channels) and HD mode (20 channels) to minimize latency or maximize channel count, respectively
- Receiver units can be docked in the chassis or mounted remotely (up to 328 feet away) via Ethernet cable for added versatility
- Up to five chassis can be linked and used simultaneously
- Each receiver channel can be paired with up to four transmitters, allowing users to instantly switch between different transmitter configurations
- Chassis’ System ID Display shows RF signal level, system ID, transmitter battery level, and system link status
- Each half-rack receiver chassis comes with a short and a long rack ear, and two long ears can be combined as a joining plate to secure two chassis in a full rack space
- Compatible with Audio-Technica’s Wireless Manager software for centralized management of system settings and operations
- Auto-lock function prevents unintended operations like turning off the power or displaying the channel select screen
- AES128 encryption for security
- Compatible with Syslog protocol
- Ability to configure, monitor, and save device settings as projects in Wireless Manager
- Transmitters and receivers include OLED screens for optimal readout of key settings and alerts
- Water- and sweat-resistant cW-style connector on body-pack transmitter provides secure connection to lavalier mics, headworn mics, and cables with cW-style locking 4-pin connector
- Charging terminals on body-pack and handheld transmitters work with ATW-CHG3/ATW-CHG3a and ATW-CHG3N/ATW-CHG3Na charging docks to recharge NiMH batteries
- Supports mixed output for situations with limited input channels
Specifications
| Overall System |
| Operating Frequencies |
2,402 to 2,480 MHz |
| Dynamic Range |
120 dB (A-weighted), typical |
| Total Harmonic Distortion |
< 0.05%, typical |
| Maximum Simultaneous Use (recommended) |
Standard: 10 channels
HD mode: 20 channels
It depends on the region and environment. |
| System Frequency Response |
20 to 20,000 Hz
Varies depending on the microphone to be installed. |
| Delay |
Standard: 2.8ms
HD mode: 6.7ms |
| Audio Sampling Rate |
Standard: 24-bit/48 kHz
HD mode: 24-bit/48 kHz |
| Encryption Method |
AES128 |
| Receiver & Transmitter Specifications |
ATW-R1440
ATW-RC14
| External Receiver Unit Port |
RJ45 |
| NETWORK Port |
RJ45: Fast Ethernet |
| LINK IN/OUT Port |
RJ12 |
| Output Level |
LINE max: +22 dBu (+20 dBV)
LINE Unity: -20 Bu (-22 dBV)
MIC max: -12 dBu (-10 dBV)
MIC Unity: -50 dBu (-52 dBV) |
| Power Consumption |
3.7W |
| Power Supply |
12 V DC, 0.5 A (AC adapter) |
| Operating Temperature Range |
0ºC to +40ºC (32°F to 104°F) |
| Dimensions |
209.8 mm (8.3″) × 165.6 mm (6.5″) × 42.5 mm (1.7″) (W × D × H) |
| Weight |
740 g (26 oz) |
| Included Accessories |
AC adapter, AC adapter blade, short rack-mount adapter, long rackmount adapter, fixing screw × 5, link cable (30 cm [12″]), leg × 4 |
ATW-RU14
| Modulation Mode |
GFSK |
| RF Output Power |
10mW EIRP |
| RF sensitivity |
-90 dBm, typical |
| Antenna |
1/2 wave dipole antenna, true diversity |
| External Connection Port |
RJ45 |
| Power Supply |
12 V DC (RC14) |
| Operating Temperature Range |
0ºC to +40ºC (32°F to 104°F) |
| Dimensions |
86.0 mm (3.4″) × 70.2 mm (2.8″) × 18.7 mm (0.74″) (W × D × H) |
| Weight |
77 g (2.7 oz) |
| Included Accessory |
Unit holder, holder cover, wood screws x 2, antenna x 4 |
ATW-T1401 BODY-PACK TRANSMITTER
| Modulation Mode |
GFSK |
| RF Output Power |
10mW EIRP |
| RF Sensitivity |
-90 dBm, typical |
| Antenna |
True diversity |
| Input Connection |
Four pin locking connector
Pin 1: GND
Pin 2: INST INPUT
Pin 3: MIC INPUT
Pin 4: DC BIAS +10 V
|
| Battery |
3 V DC (two 1.5 V AA) |
| Battery Life |
AA alkaline batteries: Approx. 15 hours
AA nickel-hydrogen batteries: Approx. 14 hours and 30 minutes
AA lithium batteries: Approx. 29 hours
This varies depending on usage conditions. |
| Operating Temperature |
5ºC to +40ºC |
| Dimensions |
63.7 mm (2.5″) × 22.7 mm (0.89″) × 107.4 mm (4.2″) (W × D × H) |
| Weight |
80g (2.8 oz) ,without batteries |
ATW-T1402 HANDHELD TRANSMITTER
| Modulation Mode |
GFSK |
| RF Output Power |
10mW EIRP |
| RF Sensitivity |
-90 dBm, typical |
| Antenna |
True diversity |
| Microphone Type |
Dynamic |
| Microphone Polar Pattern |
Hypercardioid |
| Battery |
3 V DC (two 1.5 V AA) |
| Battery Life |
Approx. 18 hours (alkaline)
Approx. 16 hours 30 minutes (Ni-MH)
Approx. 35 hours (lithium)
This varies depending on usage conditions. |
| Operating Temperature Range |
5ºC to +40ºC (41°F to 104°F) |
| Dimensions |
265.0 mm (10″) × 53.7 mm (2.1″) |
| Weight |
300 g (11 oz), without batteries |
| Included Accessories |
Mic holder AT8456a, converting thread adapter (3/8″ – 5/8″) |
ATW-T1406 BOUNDARY MICROPHONE TRANSMITTER
| Modulation Mode |
GFSK |
| RF Output Power |
10mW EIRP |
| RF Sensitivity |
-90 dBm, typical |
| Antenna |
True diversity |
| Maximum Input Sound Pressure Level |
139 dB SPL |
| Microphone Type |
Condenser |
| Microphone Polar Pattern |
Cardioid |
| Built-in Battery |
3.7V lithium-ion battery (5.5Wh, 1460mAh) |
| Battery Life |
Approx. 12 hours
This varies depending on usage conditions. |
| Charging Time |
Approx. 3 hours and 10 minutes
This varies depending on usage conditions. |
| USB Charging Port |
USB Type-C (USB 2.0) |
| Operating Temperature Range |
5ºC to +40ºC (41°F to 104°F) |
| Dimensions |
90.5 mm (3.6″) × 129.4 mm (5.1″) × 31.9 mm (1.3″) (W × D × H) |
| Weight (with battery) |
510 g (18 oz), including battery |
| Included Accessories |
USB power supply adapter, USB power supply adapter blade, USB
cable (1.5 m [4.9′]) |
ATW-T1407 DESK STAND TRANSMITTER
| Modulation Mode |
GFSK |
| RF Output Power |
10mW EIRP |
| RF Sensitivity |
-90 dBm, typical |
| Antenna |
True diversity |
| Microphone |
Gooseneck microphone supported |
| Phantom Power Supply |
DC24V |
| Built-in Battery |
3.7 V lithium-ion battery (5.5 Wh, 1,460 mAh) |
| Battery Life |
When using a gooseneck microphone with no LED: Approx. 12 hours
When using a gooseneck microphone with an LED: Approx. 8 hours
This varies depending on usage conditions. |
| Charging Time |
Approx. 3 hours and 10 minutes
This varies depending on usage conditions. |
| USB Charging port |
USB Type-C (USB 2.0) |
| Operating Temperature Range |
5ºC to +40ºC (41°F to 104°F) |
| Dimensions |
90.5 mm (3.6″) × 129.4 mm (5.1″) × 47.6 mm (1.9″) (W × D × H) |
| Weight |
490 g (17 oz), including battery |
| Included Accessories |
USB power supply adapter, USB power supply adapter blade, USB cable (1.5 m [4.9′]) |
|
