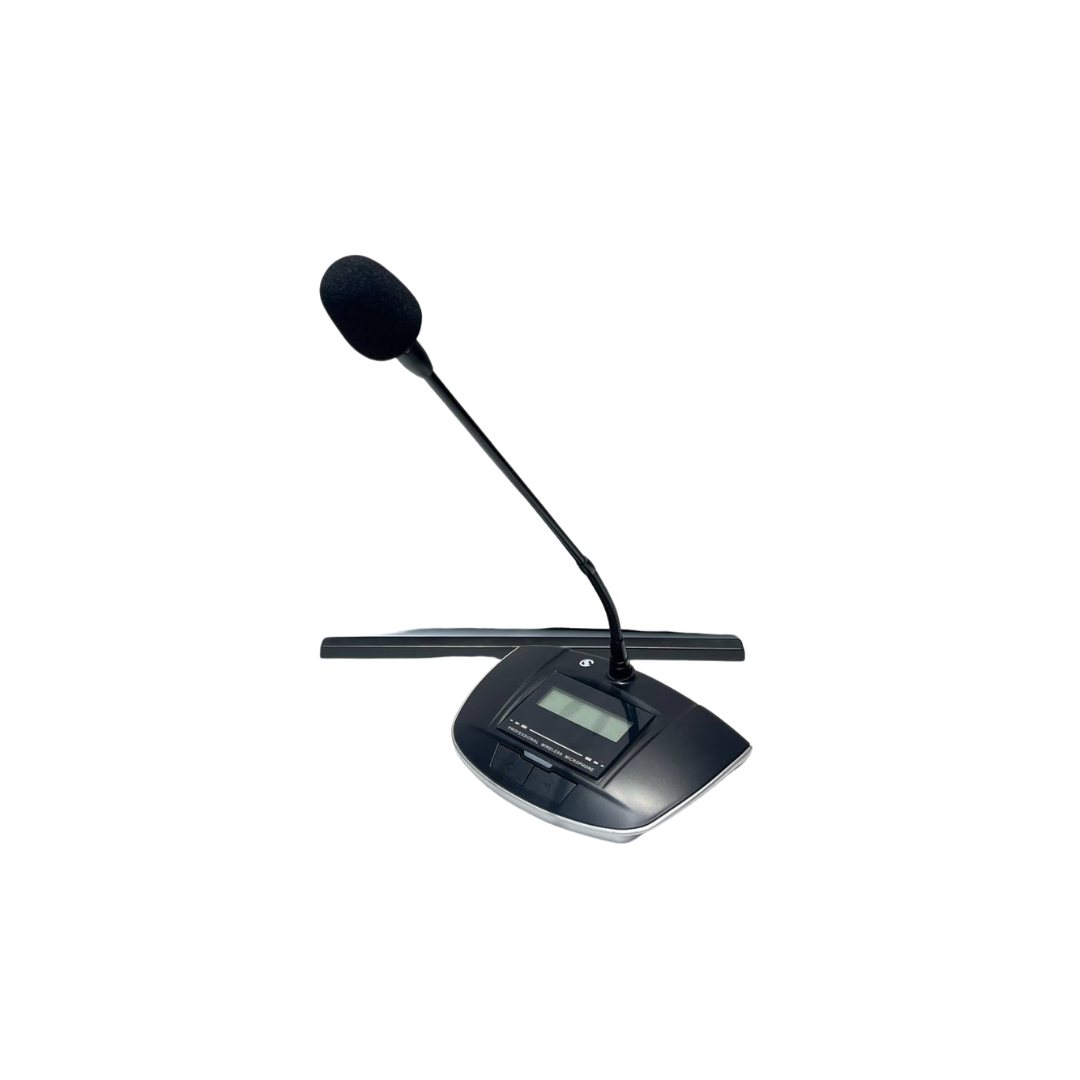

CS-118 Chairman

Contact for more information.

Feature	Specification
Capsule Type	Permanently polarized condenser
Polar Pattern	Cardioid (unidirectional)
Frequency Response	20Hz – 20,000 Hz
Sensitivity	-44dB (at 1V at 1Pa)
Maximum SPL	120 dB (at 1kHz 1% T.H.D.)
Signal-to-Noise Ratio	>72 dB
Output Impedance	280 Ω
Power Requirements	11V–52V DC Phantom Power
Microphone Length	480mm (approximately 18.9 inches)

Key Features

Anti-Interference Technology: The all-copper precision-cast casing provides “0RF” shielding, effectively blocking interference from mobile phones and other wireless devices.
Audio Optimization: Includes a built-in high-pass filter (typically around 50Hz–100Hz) to reduce low-frequency rumble, air conditioning noise, and wind noise.
Expansion & Integration: Systems can often be expanded to 110+ units with additional power supplies and integrated with video tracking systems for automatic camera switching.
