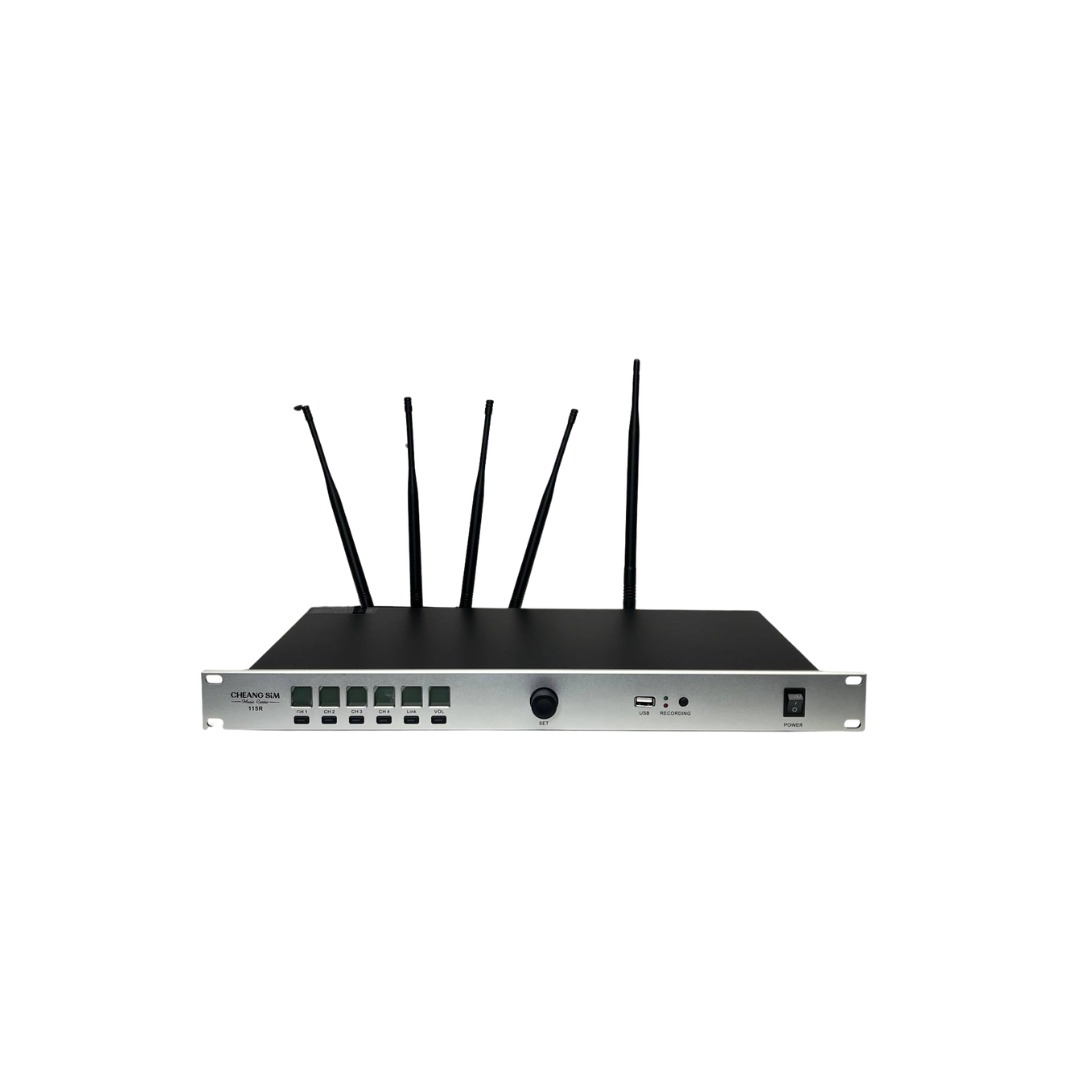

CS-115R Receiver

Contact for more information.

The CS-115R (often paired with EG-115 microphones) is a professional central controller/receiver for wireless and wired conference discussion systems. It serves as the “brain” of the setup, managing the communication between the chairman and delegate units.
Core System Features
  • Centralized Control: Manages up to 45–60 microphone units depending on the specific configuration.
  • Multi-Mode Operation:
    • FIFO (First-In-First-Out): Automatically rotates active microphones when the limit is reached.
    • Voice Activated: Mics activate only when speaking, reducing ambient noise.
    • Chairman Priority: Allows the chairman unit to override and mute all delegate units instantly.
  • Audio Protection: Built-in high-pass filters and auto-gain circuits prevent low-frequency rumble and feedback.
  • Expandability: Can be integrated with the VTS-1000 video tracking system to automatically focus cameras on the active speaker.
Technical Specifications
Feature Detail
Chassis EIA Standard 1U rack-mountable
Frequency Response 65Hz – 18kHz (typically)
Connectivity Hand-in-hand “aviation cable” or Cat5 shielded network cable
Audio Outputs Balanced XLR, 6.35mm, and RCA options
Compliance Meets IEC60914 international standards for conference systems
Recording Support Dedicated recording output for capturing meeting audio
Microphone Compatibility:
The receiver is commonly used with the EG-115 condenser gooseneck microphone:
  • Length: 380mm.
  • Pattern: Cardioid (minimizes background noise).
  • Power: Phantom power (11V–52V DC).
